Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
APT75GN60LDQ3GIGBT 600V 155A 536W TO264 |
3720 | 10.42 |
Add To CartInquiry Now |
Tube | - | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2500µJ (on), 2140µJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
Datasheet |
APT50GS60BRDQ2GIGBT 600V 93A 415W TO247 |
3818 | 13.36 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Active | NPT | 600 V | 93 A | 195 A | 3.15V @ 15V, 50A | 415 W | 755µJ (off) | Standard | 235 nC | 16ns/225ns | 400V, 40A, 4.7Ohm, 15V | 25 ns | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |

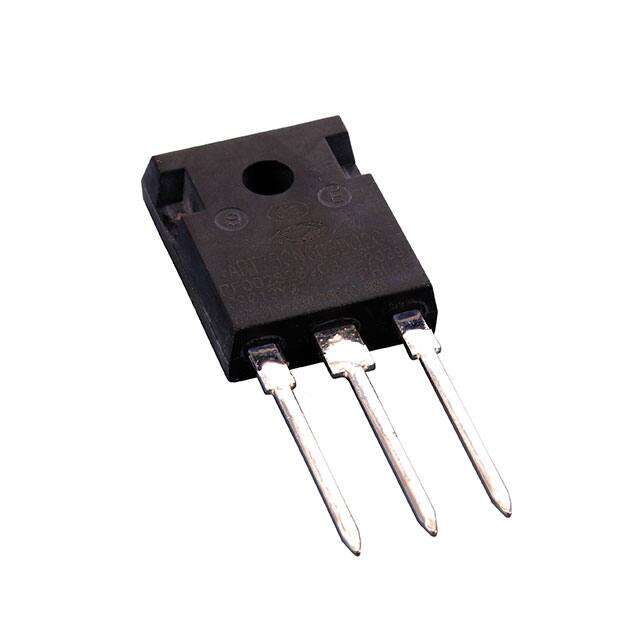

APT75GN60BDQ2GIGBT FIELDSTOP SINGLE 600V 75A T |
177 | 10.12 |
Add To CartInquiry Now |
Tube | - | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2.5mJ (on), 2.14mJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | Through Hole | |
Datasheet |
APT80GA90SIGBT PT MOS 8 SINGLE 900 V 80 A |
231 | 11.94 |
Add To CartInquiry Now |
Tube | POWER MOS 8® | Active | PT | 900 V | 145 A | 239 A | 3.1V @ 15V, 47A | 625 W | 1.625mJ (on), 1.389mJ (off) | Standard | 200 nC | 18ns/149ns | 600V, 47A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount | |
Datasheet |
APT60GT60BRGIGBT 600V 100A 500W TO247 |
3517 | 14.96 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Active | NPT | 600 V | 100 A | 360 A | 2.5V @ 15V, 60A | 500 W | 3.4mJ | Standard | 275 nC | 26ns/395ns | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |
APT25GR120BIGBT 1200V 75A 521W TO247 |
166 | 5.52 |
Add To CartInquiry Now |
Bulk | - | Active | NPT | 1200 V | 75 A | 100 A | 3.2V @ 15V, 25A | 521 W | 742µJ (on), 427µJ (off) | Standard | 203 nC | 16ns/122ns | 600V, 25A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |
APT25GR120BD15IGBT 1200V 75A 521W TO247 |
122 | 6.95 |
Add To CartInquiry Now |
Tube | - | Active | NPT | 1200 V | 75 A | 100 A | 3.2V @ 15V, 25A | 521 W | 742µJ (on), 427µJ (off) | Standard | 203 nC | 16ns/122ns | 600V, 25A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |
APT33GF120BRGIGBT 1200V 52A 297W TO247 |
212 | 9.21 |
Add To CartInquiry Now |
Tube | - | Active | NPT | 1200 V | 52 A | 104 A | 3.2V @ 15V, 25A | 297 W | 2.8mJ (on), 2.8mJ (off) | Standard | 170 nC | 25ns/210ns | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |
APT50GN120L2DQ2GIGBT 1200V 134A 543W TO264 |
162 | 17.94 |
Add To CartInquiry Now |
Tube | - | Active | NPT, Trench Field Stop | 1200 V | 134 A | 150 A | 2.1V @ 15V, 50A | 543 W | 4495µJ (off) | Standard | 315 nC | 28ns/320ns | 800V, 50A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
Datasheet |
APT50GT120B2RGIGBT 1200V 94A 625W TO247 |
283 | 16.44 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Active | NPT | 1200 V | 94 A | 150 A | 3.7V @ 15V, 50A | 625 W | 2330µJ (off) | Standard | 340 nC | 24ns/230ns | 800V, 50A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
