Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
STGE50NB60HDIGBT MOD 600V 100A 300W ISOTOP |
3613 | 0.00 |
Add To CartInquiry Now |
Tube | PowerMESH™ | Obsolete | - | Single | 600 V | 100 A | 300 W | 2.8V @ 15V, 50A | 250 µA | 4.5 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT100GT60JRIGBT MOD 600V 148A 500W ISOTOP |
3493 | 0.00 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Active | NPT | Single | 600 V | 148 A | 500 W | 2.5V @ 15V, 100A | 25 µA | 5.15 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT200GN60JDQ4GIGBT MOD 600V 283A 682W ISOTOP |
2629 | 0.00 |
Add To CartInquiry Now |
Tube | - | Discontinued at Mosen | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 50 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT200GN60JGIGBT MOD 600V 283A 682W ISOTOP |
2665 | 0.00 |
Add To CartInquiry Now |
Tube | - | Discontinued at Mosen | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 25 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT30GP60JDQ1IGBT MODULE 600V 67A 245W ISOTOP |
3436 | 0.00 |
Add To CartInquiry Now |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 67 A | 245 W | 2.7V @ 15V, 30A | 500 µA | 3.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT35GP120JDQ2IGBT MOD 1200V 64A 284W ISOTOP |
3188 | 0.00 |
Add To CartInquiry Now |
Tube | POWER MOS 7® | Active | PT | Single | 1200 V | 64 A | 284 W | 3.9V @ 15V, 35A | 350 µA | 3.24 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT40GF120JRDQ2IGBT MOD 1200V 77A 347W ISOTOP |
3630 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | NPT | Single | 1200 V | 77 A | 347 W | 3V @ 15V, 40A | 500 µA | 3.46 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT50GT120JRDQ2IGBT MOD 1200V 72A 379W ISOTOP |
2588 | 0.00 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Obsolete | NPT | Single | 1200 V | 72 A | 379 W | 3.7V @ 15V, 50A | 400 µA | 2.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT60GT60JRIGBT MODULE 600V 93A 378W ISOTOP |
2048 | 0.00 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Obsolete | NPT | Single | 600 V | 93 A | 378 W | 2.5V @ 15V, 60A | 80 µA | 1.6 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT60GT60JRDQ3IGBT 600V 105A 379W SOT227 |
2478 | 0.00 |
Add To CartInquiry Now |
Tube | Thunderbolt IGBT® | Active | NPT | Single | 600 V | 105 A | 379 W | 2.5V @ 15V, 60A | 330 µA | 3.1 nF @ 25 V | Standard | No | - | Chassis Mount |
|
Datasheet |
|
APT75GN120JDQ3GIGBT MOD 1200V 124A 379W ISOTOP |
2246 | 0.00 |
Add To CartInquiry Now |
Tube | - | Discontinued at Mosen | Trench Field Stop | Single | 1200 V | 124 A | 379 W | 2.1V @ 15V, 75A | 200 µA | 4.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT75GN120JIGBT MOD 1200V 124A 379W ISOTOP |
3793 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | Trench Field Stop | Single | 1200 V | 124 A | 379 W | 2.1V @ 15V, 75A | 100 µA | 4.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
MII400-12E4IGBT MOD 1200V 420A 1700W Y3LI |
2231 | 0.00 |
Add To CartInquiry Now |
- | - | Obsolete | NPT | Half Bridge | 1200 V | 420 A | 1700 W | 2.8V @ 15V, 300A | 3.3 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXEN60N120IGBT MOD 1200V 100A 445W SOT227B |
3773 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | NPT | Single | 1200 V | 100 A | 445 W | 2.7V @ 15V, 60A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

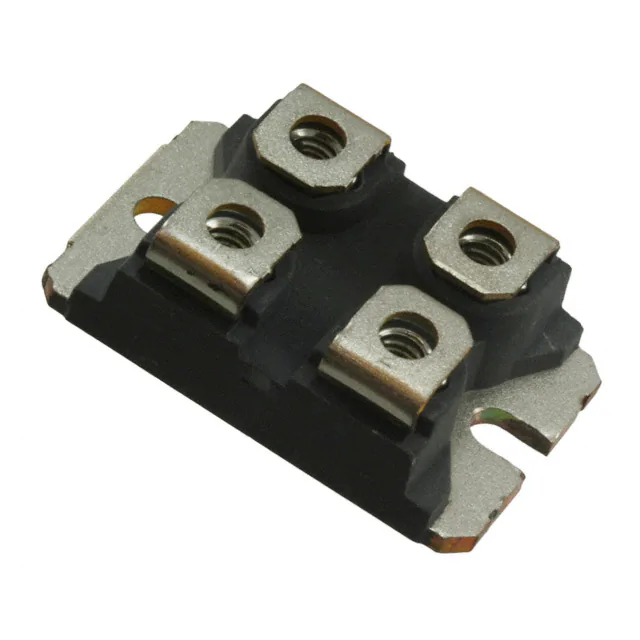

IXEN60N120D1IGBT MOD 1200V 100A 445W SOT227B |
2174 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | NPT | Single | 1200 V | 100 A | 445 W | 2.7V @ 15V, 60A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXGE200N60BIGBT MOD 600V 160A ISOPLUS227 |
3549 | 0.00 |
Add To CartInquiry Now |
Tube | HiPerFAST™ | Active | - | Single | 600 V | 160 A | 416 W | 2.3V @ 15V, 120A | 200 µA | 11 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXGN400N30A3IGBT MOD 300V 400A 735W SOT227B |
3224 | 0.00 |
Add To CartInquiry Now |
Tube | GenX3™ | Obsolete | PT | Single | 300 V | 400 A | 735 W | 1.15V @ 15V, 100A | 50 µA | 19 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXGN50N60BD2IGBT MOD 600V 75A 250W SOT227B |
3471 | 0.00 |
Add To CartInquiry Now |
Tube | HiPerFAST™ | Obsolete | - | Single | 600 V | 75 A | 250 W | 2.5V @ 15V, 50A | 200 µA | 4.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXGN50N60BD3IGBT MOD 600V 75A 250W SOT227B |
3686 | 0.00 |
Add To CartInquiry Now |
Tube | HiPerFAST™ | Obsolete | - | Single | 600 V | 75 A | 250 W | 2.5V @ 15V, 50A | 200 µA | 4.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXGN60N60C2IGBT MOD 600V 75A 480W SOT227B |
2017 | 0.00 |
Add To CartInquiry Now |
Tube | HiPerFAST™ | Obsolete | PT | Single | 600 V | 75 A | 480 W | 2.5V @ 15V, 50A | 650 µA | 4.75 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
