Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
MII200-12A4IGBT MOD 1200V 270A 1130W Y3DCB |
3683 | 164.00 |
Add To CartInquiry Now |
Box | - | Active | NPT | Half Bridge | 1200 V | 270 A | 1130 W | 2.7V @ 15V, 150A | 10 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

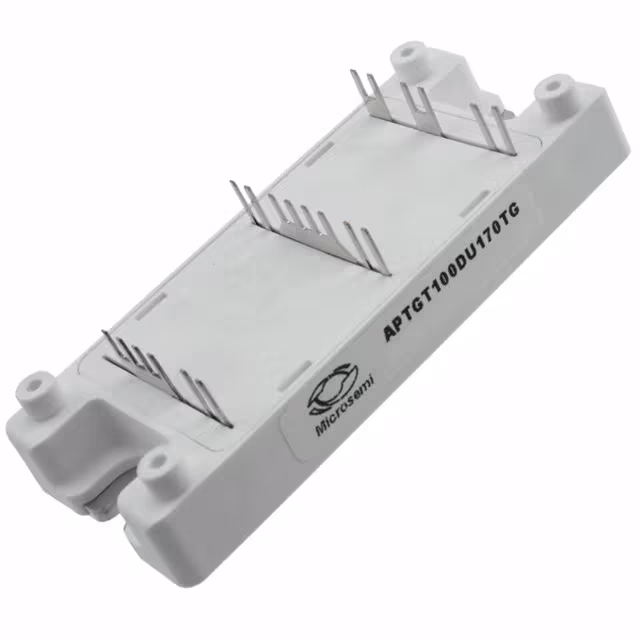

APTGT100DU170TGIGBT MODULE 1700V 150A 560W SP4 |
3403 | 164.04 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

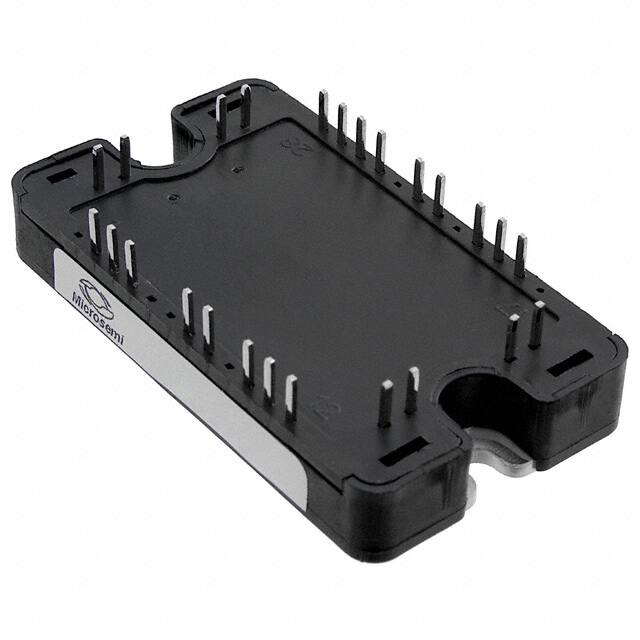

APTGT100A170TGIGBT MODULE 1700V 150A 560W SP4 |
3969 | 164.34 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

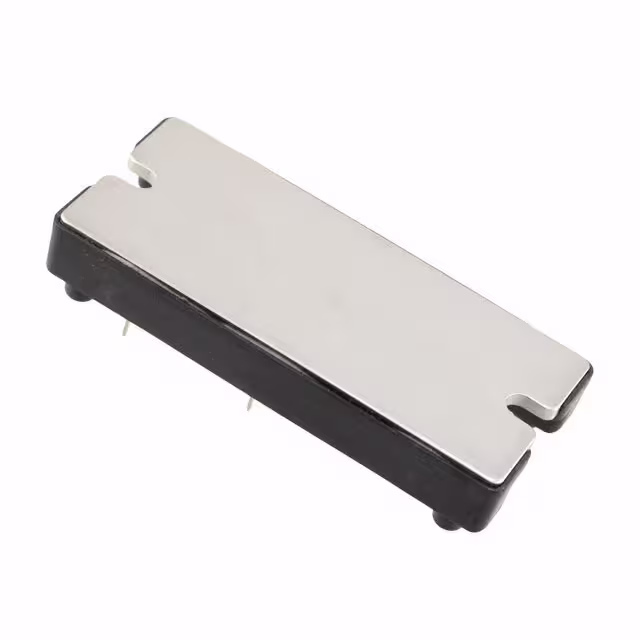

APTGT150DU120TGIGBT MODULE 1200V 220A 690W SP4 |
3636 | 165.94 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT150A120TGIGBT MODULE 1200V 220A 690W SP4 |
2273 | 166.29 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
BYM300A120DN2HOSA1IGBT MOD 1200V 450A 1000W |
2456 | 167.76 |
Add To CartInquiry Now |
Tray | - | Not For New Designs | - | Single | 1200 V | 450 A | 1000 W | - | - | - | Standard | No | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF300R12KE4B2HOSA1IGBT MOD 1200V 460A 1600W |
2684 | 128.04 |
Add To CartInquiry Now |
Bulk,Tray | C | Active | Trench Field Stop | 2 Independent | 1200 V | 460 A | 1600 W | 2.15V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FZ600R12KP4HOSA1IGBT MODULE 1200V 600A |
3461 | 1.00 |
Add To CartInquiry Now |
Bulk,Tray | C | Active | Trench Field Stop | Single | 1200 V | 600 A | - | 2.05V @ 15V, 600A | 5 mA | 42 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
| |
|
FP50R12N2T4B16BPSA1LOW POWER ECONO AG-ECONO2B-711 |
3936 | 159.93 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
MIXA450PF1200TSFIGBT MOD 1200V 650A 2100W |
3299 | 168.19 |
Add To CartInquiry Now |
Box | - | Active | PT | Half Bridge | 1200 V | 650 A | 2100 W | 2.15V @ 15V, 450A | 1 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IFS75B12N3E4B31BOSA1IGBT MOD 1200V 150A 385W |
2686 | 168.33 |
Add To CartInquiry Now |
Tray | MIPAQ™ | Active | Trench Field Stop | Full Bridge | 1200 V | 150 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FS75R12KE3B9BPSA1LOW POWER ECONO AG-ECONO2B-311 |
3534 | 160.65 |
Add To CartInquiry Now |
Tray | - | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF150R17ME3GBOSA1IGBT MOD 1700V 240A 1050W |
723 | 122.42 |
Add To CartInquiry Now |
Bulk,Bulk | EconoDUAL™ 3 | Not For New Designs | Trench Field Stop | 2 Independent | 1700 V | 240 A | 1050 W | 2.45V @ 15V, 150A | 3 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
MIXA150W1200TEHIGBT MODULE 1200V 220A 695W E3 |
3613 | 169.00 |
Add To CartInquiry Now |
Box | - | Active | PT | Three Phase Inverter | 1200 V | 220 A | 695 W | 2.1V @ 15V, 150A | 500 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT300DA60GIGBT MODULE 600V 430A 1150W SP6 |
3464 | 170.38 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT300SK60GIGBT MODULE 600V 430A 1150W SP6 |
2478 | 170.38 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
DF300R12KE3HOSA1IGBT MOD 1200V 480A 1470W |
2001 | 162.26 |
Add To CartInquiry Now |
Bulk | - | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
FF150R12MS4GBOSA1IGBT MOD 1200V 225A 1250W |
2569 | 162.82 |
Add To CartInquiry Now |
Bulk | EconoDUAL™ 3 | Active | - | 2 Independent | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
| |
|
DF450R17N2E4PB11BPSA1IGBT MODULE LOW POWER ECONO |
3131 | 130.86 |
Add To CartInquiry Now |
Bulk,Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
APTGT150H60TGIGBT MODULE 600V 225A 480W SP4 |
2842 | 172.11 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
