Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
APTGLQ40DDA120CT3GIGBT MODULE 1200V 75A 250W SP6 |
2578 | 108.14 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
Datasheet |
|
APTGT75X60T3GIGBT MODULE 600V 100A 250W SP3 |
2028 | 108.94 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|

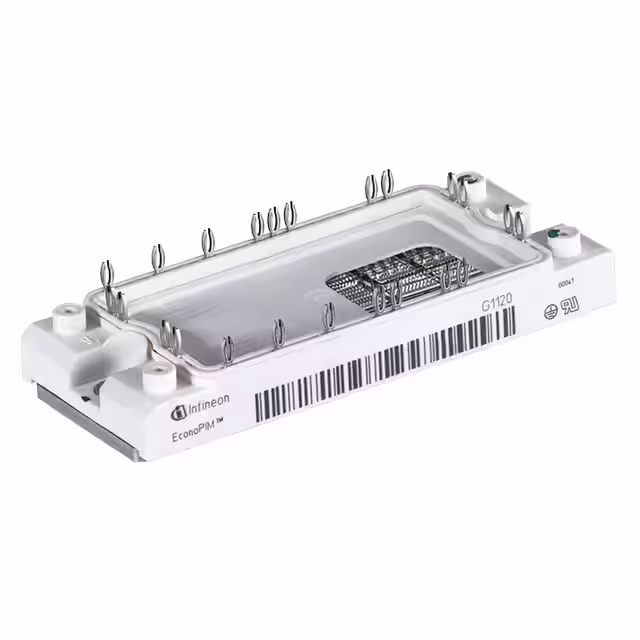

FP35R12KT4PBPSA1IGBT MOD 1200V 70A 20MW |
3485 | 109.17 |
Add To CartInquiry Now |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | 20 mW | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
MIXA80W1200TEHIGBT MODULE 1200V 120A 390W E3 |
3342 | 109.35 |
Add To CartInquiry Now |
Box | - | Active | PT | Three Phase Inverter with Brake | 1200 V | 120 A | 390 W | 2.2V @ 15V, 77A | 200 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTCV60TLM45T3GIGBT MODULE 600V 100A 250W SP3 |
2253 | 110.31 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Level Inverter - IGBT, FET | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT75DU120TGIGBT MODULE 1200V 100A 350W SP4 |
3238 | 111.79 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT100TL60T3GIGBT MODULE 600V 150A 340W SP3 |
3430 | 112.29 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGL40X120T3GIGBT MODULE 1200V 65A 220W SP3 |
3437 | 113.07 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|

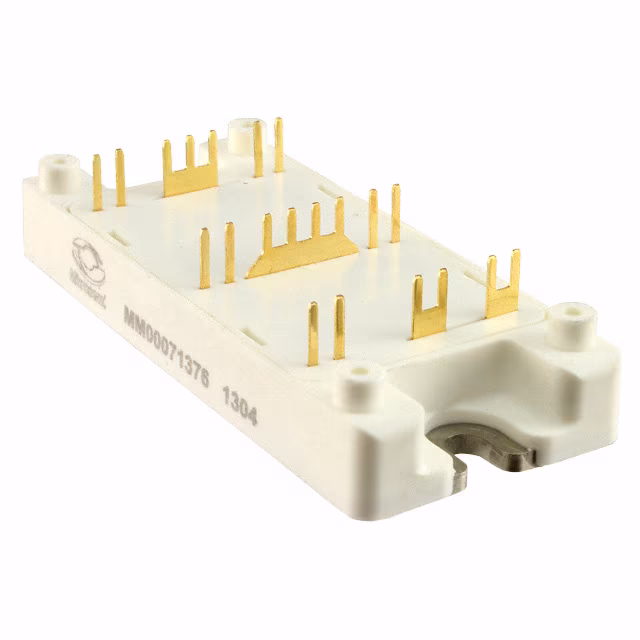

APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
2896 | 113.44 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FS75R07U1E4BPSA1IGBT MOD 650V 100A 275W |
2167 | 113.51 |
Add To CartInquiry Now |
Tray | SmartPACK1 | Not For New Designs | Trench Field Stop | Full Bridge | 650 V | 100 A | 275 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
2148 | 114.03 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
2237 | 114.35 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|

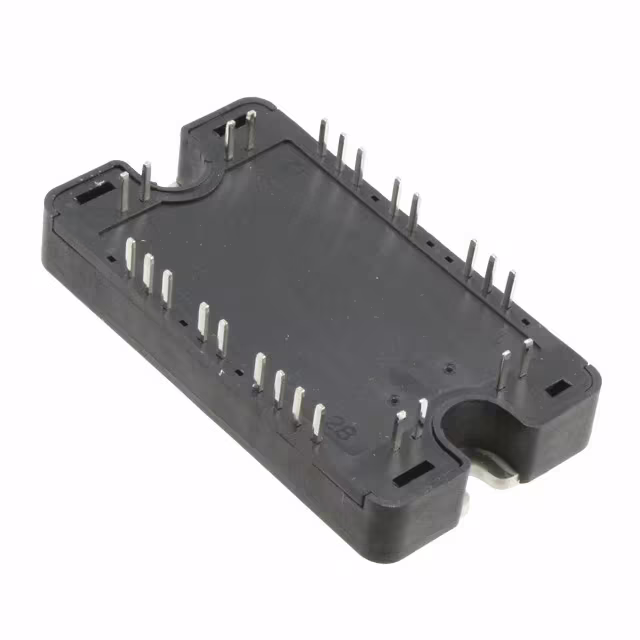

APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
2742 | 115.50 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
3001 | 115.71 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
F3L200R12W2H3PB11BPSA1MODULE IGBT 1200V EASY2B-2 |
2776 | 115.85 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
FP75R07N2E4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2879 | 111.70 |
Add To CartInquiry Now |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | 20 mW | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

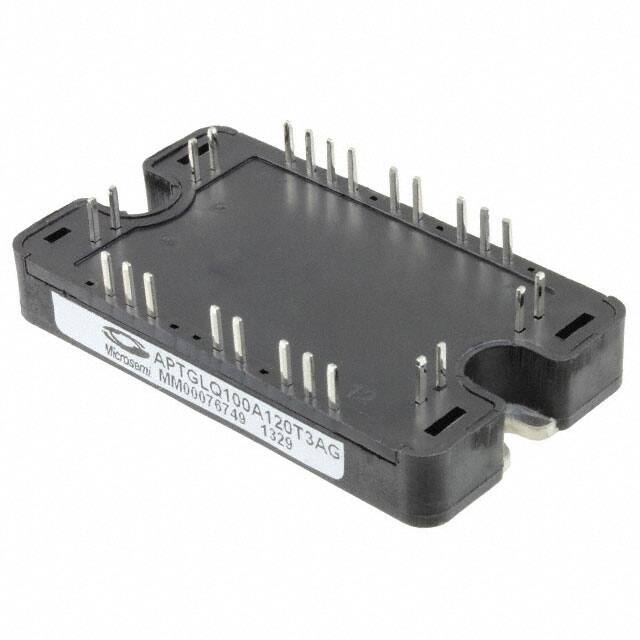

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 |
2068 | 116.25 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
| |
|
F3L200R07W2S5FPB55BPSA1LOW POWER EASY AG-EASY2B-2 |
3702 | 112.81 |
Add To CartInquiry Now |
Tray | - | Active | - | Single | - | - | - | - | - | - | Standard | No | - | - |
| |
|
F3L200R07W2S5FPB56BPSA1LOW POWER EASY AG-EASY2B-2 |
2308 | 112.81 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
FP25R12U1T4BPSA1IGBT MOD 1200V 39A 190W |
2433 | 112.84 |
Add To CartInquiry Now |
Bulk | SmartPIM1 | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 190 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
