Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
APTGT100TA60PGIGBT MODULE 600V 150A 340W SP6P |
2156 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|
APTGT150A120D1GIGBT MODULE 1200V 220A 700W D1 |
3850 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 220 A | 700 W | 2.1V @ 15V, 150A | 4 mA | 10.8 nF @ 25 V | Standard | No | - | Chassis Mount |
| |
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 |
2783 | 208.72 |
Add To CartInquiry Now |
Bulk | - | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount |
| |
|
MSCGLQ50DDU120CTBL2NGPM-IGBT-SBD-BL2 |
2366 | 208.72 |
Add To CartInquiry Now |
Bulk | - | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
3482 | 145.41 |
Add To CartInquiry Now |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|

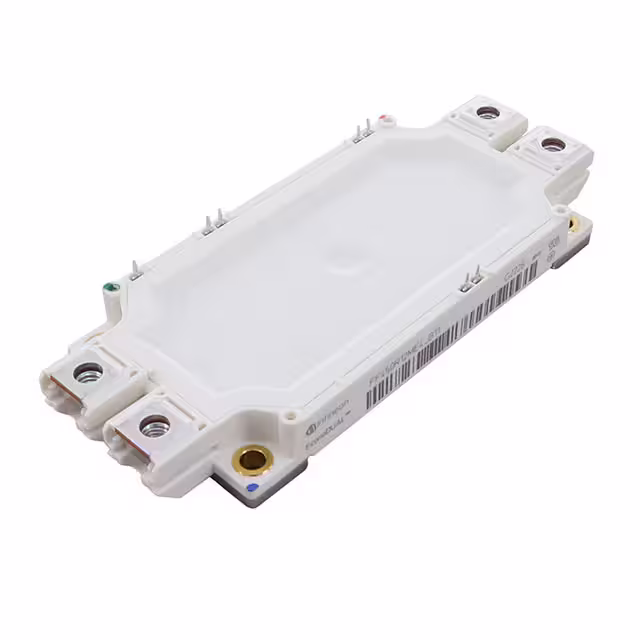

FF450R12ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
2310 | 234.96 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 |
3104 | 266.61 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Level Inverter | 950 V | 310 A | 20 mW | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF800R12KE7HPSA1MEDIUM POWER 62MM AG-62MMHB-711 |
2208 | 310.92 |
Add To CartInquiry Now |
Tray | TrenchStop™ | Active | Trench Field Stop | Half Bridge | 1200 V | 800 A | - | 1.75V @ 15V, 800A | 100 µA | 122 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF750R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT |
2590 | 340.02 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1200 V | 750 A | 20 mW | 1.75V @ 15V, 750A | 45 µA | 115 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|
MSCGLQ75H120CTBL3NGPM-IGBT-SBD-BL3 |
3637 | 340.03 |
Add To CartInquiry Now |
Bulk | - | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
MSCGLQ75DDU120CTBL3NGPM-IGBT-SBD-BL3 |
2418 | 340.03 |
Add To CartInquiry Now |
Bulk | - | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount |
| |
|
FP75R12N3T7B81BPSA1LOW POWER ECONO AG-ECONO3B-731 |
3176 | 197.91 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO |
2627 | 474.56 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 750 A | 20 mW | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF900R17ME7B11BPSA1MEDIUM POWER ECONO |
2497 | 525.51 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1700 V | 900 A | 20 mW | 1.85V @ 15V, 900A | 5 mA | 93.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|
FP75R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 |
3607 | 229.74 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
F4100R17N3E4B80BPSA1LOW POWER ECONO AG-ECONO3-586 |
2154 | 247.84 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
FP100R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 |
3949 | 269.46 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|

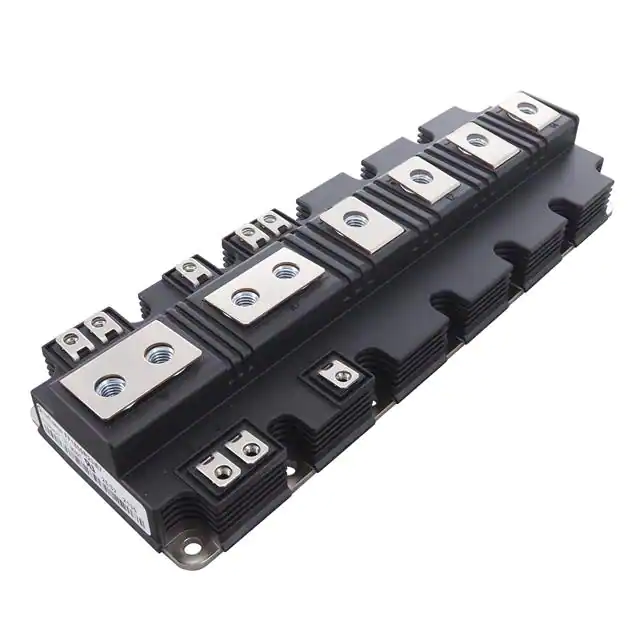

FF1800R23IE7BPSA1PP IHM I XHP 1 7KV AG-PRIME3+-7 |
3285 | 2299.50 |
Add To CartInquiry Now |
Tray | PrimePACK™3 | Active | - | 2 Independent | 1500 V | 1800 A | - | - | - | - | Standard | No | - | Chassis Mount |
|
Datasheet |
|

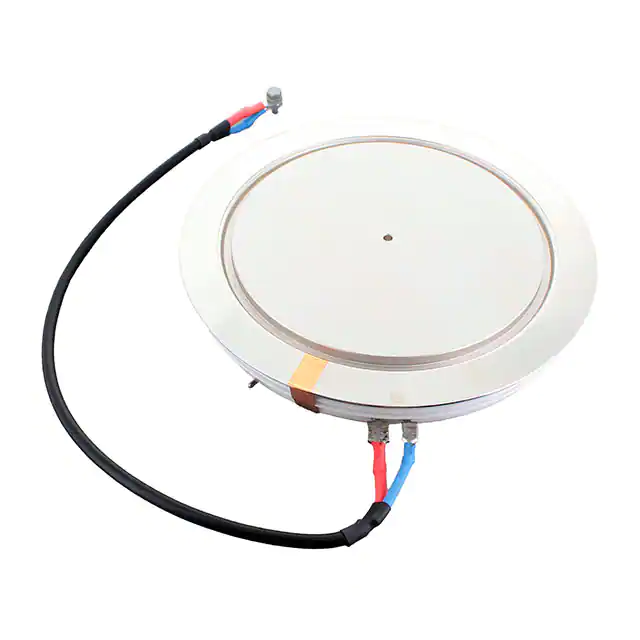

P2000DL45X168HPSA1PRESS PACK IGBT |
3948 | 9139.90 |
Add To CartInquiry Now |
Tray | - | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
P3000ZL45X168HPSA1PRESS PACK IGBT |
3844 | 9139.90 |
Add To CartInquiry Now |
Tray | - | Active | Trench | Single | 4500 V | 3000 A | - | 2.5V @ 15V, 3000A | 200 µA | 620 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
