Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
MG12105S-BA1MMIGBT MODULE 1200V 150A 690W S3 |
3049 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 150 A | 690 W | 1.8V @ 15V, 100A (Typ) | 500 µA | 7.43 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG12150S-BN2MMIGBT MODULE 1200V 200A 625W S3 |
3690 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1225H-XN2MMIGBT MOD 1200V 40A 147W |
3306 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 147 W | 1.7V @ 15V, 25A | 100 µA | 1.81 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|

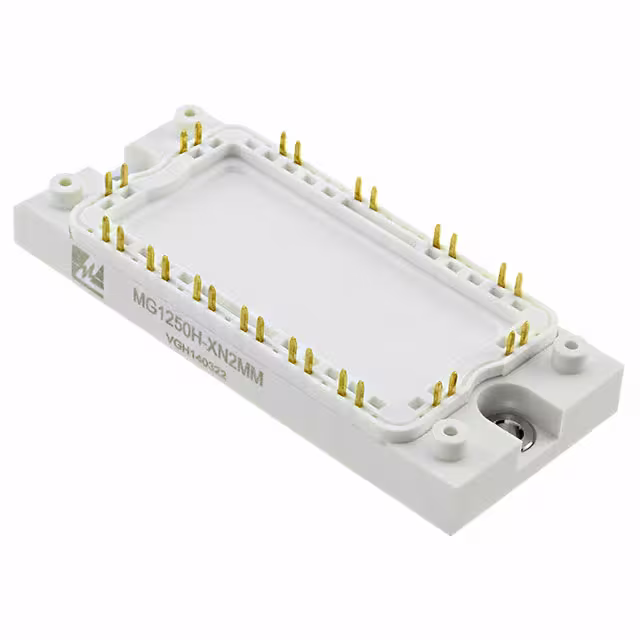

MG1250H-XN2MMIGBT MOD 1200V 75A 260W |
3459 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1275H-XN2MMIGBT MOD 1200V 105A 348W |
3377 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 348 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1215H-XBN2MMIGBT MOD 1200V 25A 105W |
2506 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 25 A | 105 W | 2.15V @ 15V, 15A | 50 µA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1225H-XBN2MMIGBT MOD 1200V 25A 105W |
2399 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 25 A | 105 W | 1.7V @ 15V, 25A | 50 µA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|

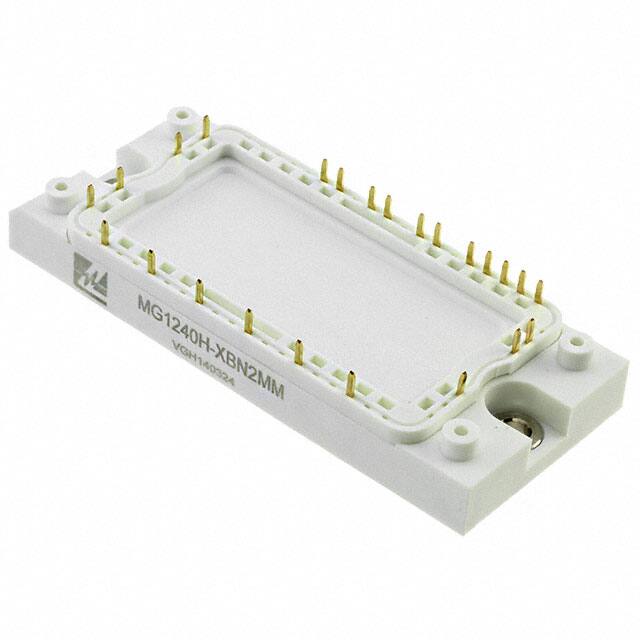

MG1240H-XBN2MMIGBT MOD 1200V 25A 105W |
2479 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 25 A | 105 W | 1.8V @ 15V, 40A | 50 µA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1275W-XN2MMIGBT MOD 1200V 105A 368W |
3196 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 368 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG12150W-XN2MMIGBT MOD 1200V 200A 625W |
2545 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1250W-XBN2MMIGBT MOD 1200V 75A 260W |
3136 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG1275W-XBN2MMIGBT MOD 1200V 105A 348W |
2047 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 105 A | 348 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG17100D-BN4MMIGBT MODULE 1700V 150A 690W D3 |
2824 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 150 A | 690 W | 2.45V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG17150D-BN4MMIGBT MODULE 1700V 250A 890W D3 |
3979 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 250 A | 890 W | 2.45V @ 15V, 150A | 3 mA | 13.6 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG17200D-BN4MMIGBT MODULE 1700V 300A 1250W D3 |
3423 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 300 A | 1250 W | 2.45V @ 15V, 200A | 3 mA | 18 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG17300D-BN4MMIGBT MODULE 1700V 400A 1450W D3 |
3179 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1450 W | 2.45V @ 15V, 300A | 1 mA | 27 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
| |
|
MG1750S-BN4MMIGBT MODULE 1700V 75A 320W S3 |
3625 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 75 A | 320 W | 2.45V @ 15V, 50A | 3 mA | 4.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
| |
|
MG1775S-BN4MMIGBT MODULE 1700V 125A 520W S3 |
2591 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 125 A | 520 W | 2.45V @ 15V, 75A | 3 mA | 6.8 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
| |
|
MG17100S-BN4MMIGBT MODULE 1700V 150A 620W S3 |
2076 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 150 A | 620 W | 2.45V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG17225WB-BN4MMIGBT MODULE 1700V 325A 1400W WB |
2610 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 325 A | 1400 W | 2.45V @ 15V, 225A | 3 mA | 20.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
