Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
APTGV100H60BTPGIGBT MODULE 600V 150A 340W SP6P |
3112 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | - | Chassis Mount |
| |
|
APTGV100H60T3GIGBT MODULE 600V 150A 340W SP3 |
3356 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
APTGV15H120T3GIGBT MODULE 1200V 25A 115W SP3 |
3441 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 25 A | 115 W | 2.1V @ 15V, 15A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
APTGV25H120BGIGBT MODULE 1200V 40A 156W SP4 |
3141 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | No | - | Chassis Mount |
| |
|
APTGV25H120T3GIGBT MODULE 1200V 40A 156W SP3 |
3379 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
APTGV30H60T3GIGBT MODULE 600V 50A 90W SP3 |
3471 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
APTGV50H120BTPGIGBT MODULE 1200V 75A 270W SP6P |
3221 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | - | Chassis Mount |
| |
|

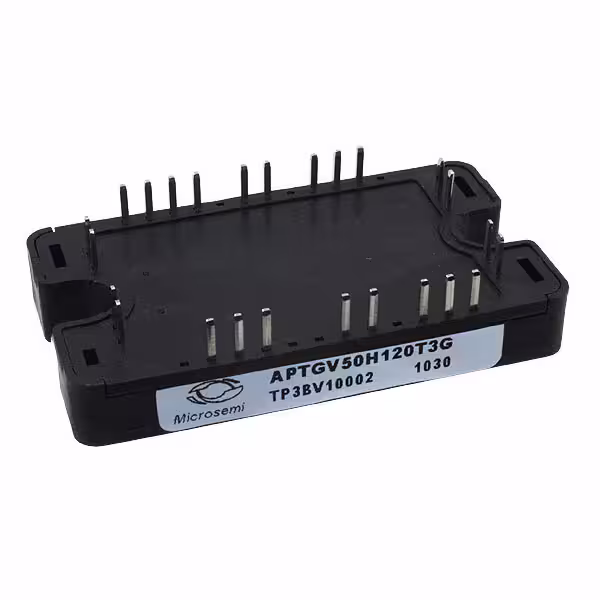

APTGV50H120T3GIGBT MODULE 1200V 75A 270W SP3 |
3689 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | - | Chassis Mount |
| |
|
APTGV50H60BGIGBT MODULE 600V 80A 176W SP4 |
2784 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | - | Chassis Mount |
| |
|
APTGV50H60T3GIGBT MODULE 600V 80A 176W SP3 |
2854 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | - | Chassis Mount |
| |
|
APTGV75H60T3GIGBT MODULE 600V 100A 250W SP3 |
3919 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT, Trench Field Stop | Full Bridge Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
.JPG)
|
FP7G100US60IGBT MODULE 600V 100A 400W EPM7 |
3030 | 0.00 |
Add To CartInquiry Now |
Tube | Power-SPM™ | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
FP7G50US60IGBT MODULE 600V 50A 250W EPM7 |
3396 | 0.00 |
Add To CartInquiry Now |
Tube | Power-SPM™ | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 2.92 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
FP7G75US60IGBT MODULE 600V 75A 310W EPM7 |
3889 | 0.00 |
Add To CartInquiry Now |
Tube | Power-SPM™ | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
| |
|
CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
3255 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
CM100DU-24NFHIGBT MOD 1200V 100A 560W |
2608 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 560 W | 6.5V @ 15V, 100A | 1 mA | 16 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
CM100DY-24AIGBT MOD 1200V 100A 672W |
3274 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 672 W | 3V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
CM100DY-24NFIGBT MOD 1200V 100A 650W |
2548 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Discontinued at Mosen | - | Half Bridge | 1200 V | 100 A | 650 W | 2.5V @ 15V, 100A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
CM1400DU-24NFIGBT MOD 1200V 1400A 3900W |
2919 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
CM150DX-24AIGBT MOD 1200V 150A 960W |
2951 | 0.00 |
Add To CartInquiry Now |
Bulk | IGBTMOD™ | Obsolete | - | Half Bridge | 1200 V | 150 A | 960 W | 2.6V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
