Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
QJD1210011MOSFET 2N-CH 1200V 100A SIC |
2899 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | 2 N-Channel (Dual) | Silicon Carbide (SiC) | 1200V (1.2kV) | 100A (Tc) | 25mOhm @ 100A, 20V | 5V @ 10mA | 500nC @ 20V | 10200pF @ 800V | 900W | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
QJD1210SA1MOSFET 2N-CH 1200V 100A SIC |
2323 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | 2 N-Channel (Dual) | Standard | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 520W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
QJD1210SA2MOSFET 2N-CH 1200V 100A SIC |
2919 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | 2 N-Channel (Dual) | Standard | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 415W | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
QJD1210SB1MOD MOSFET 1200V 10A DUAL SIC |
3625 | 0.00 |
Add To CartInquiry Now |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - |
| |
|
STL13DP10F6MOSFET 2P-CH 100V 13A PWRFLAT56 |
3370 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | DeepGATE™, STripFET™ VI | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 100V | 13A | 180mOhm @ 1.7A, 10V | 4V @ 250µA | 16.5nC @ 10V | 864pF @ 25V | 62.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
STL20DN10F7MOSFET 2N-CH 100V 20A PWRFLAT56 |
3976 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | DeepGATE™, STripFET™ VII | Obsolete | 2 N-Channel (Dual) | Standard | 100V | 20A | 67mOhm @ 2.5A, 10V | 4.5V @ 250µA | 7.8nC @ 10V | 408pF @ 50V | 62.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
FW276-TL-2HMOSFET 2N-CH 450V 0.7A 8SOIC |
2318 | 0.37 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 450V | 700mA | 12.1Ohm @ 350mA, 10V | 4.5V @ 1mA | 3.7nC @ 10V | 55pF @ 20V | 1.6W | 150°C (TJ) | Surface Mount |
|
Datasheet |
|
MCH6661-TL-WMOSFET 2N-CH 30V 1.8A SOT363 |
3767 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | 2 N-Channel (Dual) | Logic Level Gate, 4V Drive | 30V | 1.8A | 188mOhm @ 900mA, 10V | 2.6V @ 1mA | 2nC @ 10V | 88pF @ 10V | 800mW | 150°C (TJ) | Surface Mount |
|
Datasheet |
|
MCH6664-TL-WMOSFET 2P-CH 30V 1.5A SOT363 |
2908 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 30V | 1.5A | 325mOhm @ 800mA, 10V | 2.6V @ 1mA | 2.2nC @ 10V | 82pF @ 10V | 800mW | 150°C (TJ) | Surface Mount |
|
Datasheet |
|
IRF9389PBFMOSFET N/P-CH 30V 6.8A/4.6A 8-SO |
3239 | 0.00 |
Add To CartInquiry Now |
Tube | HEXFET® | Discontinued at Mosen | N and P-Channel | Logic Level Gate | 30V | 6.8A, 4.6A | 27mOhm @ 6.8A, 10V | 2.3V @ 10µA | 14nC @ 10V | 398pF @ 15V | 2W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
LN100LA-GMOSFET 2N-CH 1200V |
3470 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR) | - | Obsolete | 2 N-Channel (Cascoded) | Standard | 1200V (1.2kV) | - | 3000Ohm @ 2mA, 2.8V | 1.6V @ 10µA | - | 50pF @ 25V | 350mW | -25°C ~ 125°C (TJ) | Surface Mount |
|
Datasheet |
|

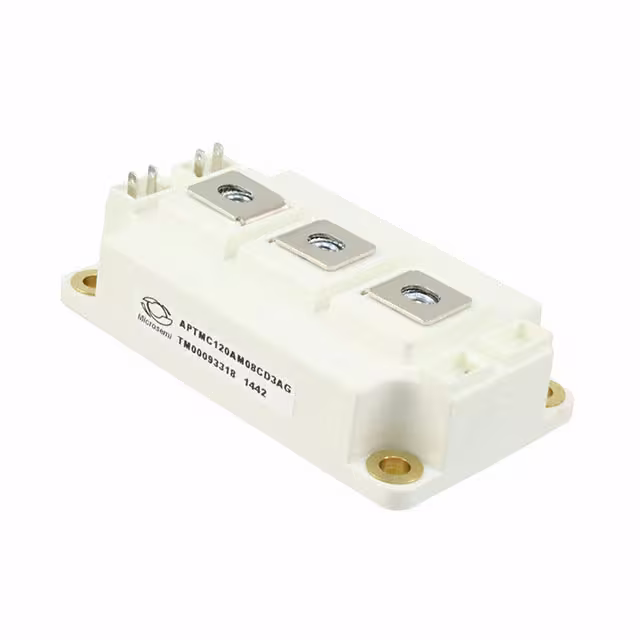

APTMC120AM08CD3AGMOSFET 2N-CH 1200V 250A D3 |
3634 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 250A (Tc) | 10mOhm @ 200A, 20V | 2.2V @ 10mA (Typ) | 490nC @ 20V | 9500pF @ 1000V | 1100W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTMC120AM16CD3AGMOSFET 2N-CH 1200V 131A D3 |
3758 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 131A (Tc) | 20mOhm @ 100A, 20V | 2.2V @ 5mA (Typ) | 246nC @ 20V | 4750pF @ 1000V | 625W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

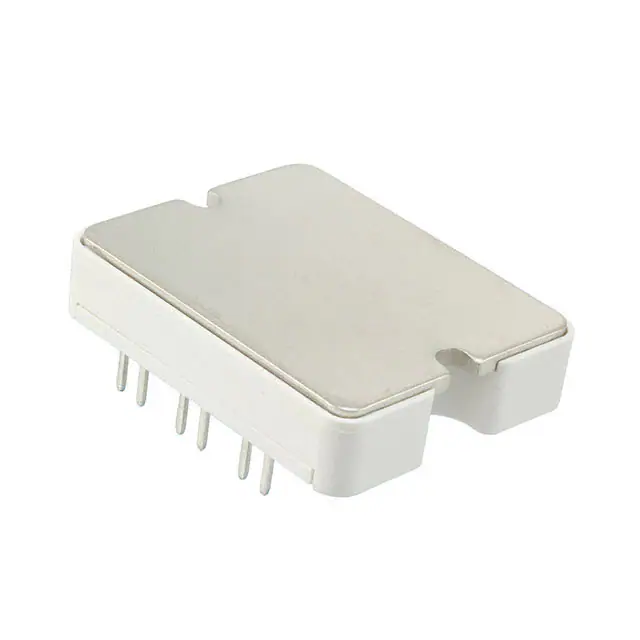

APTMC120AM55CT1AGMOSFET 2N-CH 1200V 55A SP1 |
3890 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 55A (Tc) | 49mOhm @ 40A, 20V | 2.2V @ 2mA (Typ) | 98nC @ 20V | 1900pF @ 1000V | 250W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTMC120TAM33CTPAGMOSFET 6N-CH 1200V 78A SP6-P |
2173 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | 6 N-Channel (3-Phase Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 78A (Tc) | 33mOhm @ 60A, 20V | 2.2V @ 3mA (Typ) | 148nC @ 20V | 2850pF @ 1000V | 370W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

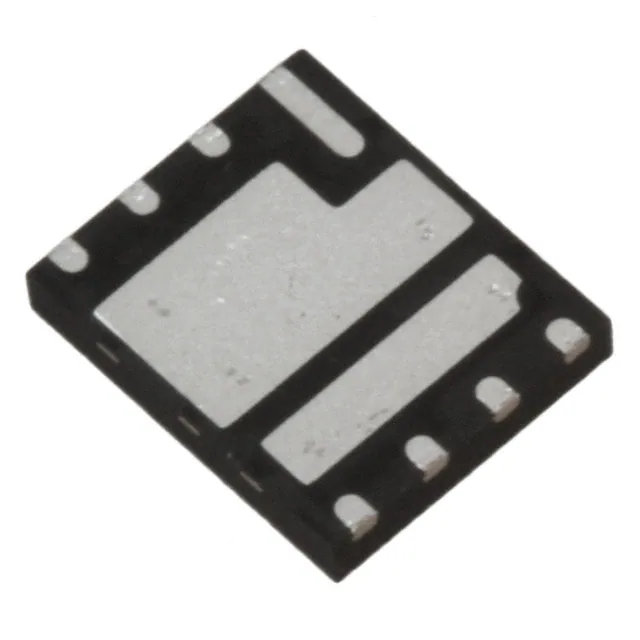

IRFH4257DTRPBFMOSFET 2N-CH 25V 25A 24PQFN |
3198 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 25V | 25A | 3.4mOhm @ 25A, 10V | 2.1V @ 35µA | 15nC @ 4.5V | 1321pF @ 13V | 25W, 28W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
FDMS3600ASMOSFET 2N-CH 25V 15A/30A POWER56 |
3471 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Obsolete | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 25V | 15A, 30A | 5.6mOhm @ 15A, 10V | 2.7V @ 250µA | 27nC @ 10V | 1770pF @ 13V | 2.2W, 2.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
FDMS3602ASMOSFET 2N-CH 25V 15A/26A POWER56 |
3762 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerTrench® | Obsolete | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 25V | 15A, 26A | 5.6mOhm @ 15A, 10V | 3V @ 250µA | 27nC @ 10V | 1770pF @ 13V | 2.2W, 2.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|
FDMS3610SMOSFET 2N-CH 25V 17.5/30A PWR56 |
2676 | 0.73 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | PowerTrench® | Obsolete | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 25V | 17.5A, 30A | 5mOhm @ 17.5A, 10V | 2V @ 250µA | 26nC @ 10V | 1570pF @ 13V | 1W | -55°C ~ 150°C (TJ) | Surface Mount |
|
Datasheet |
|

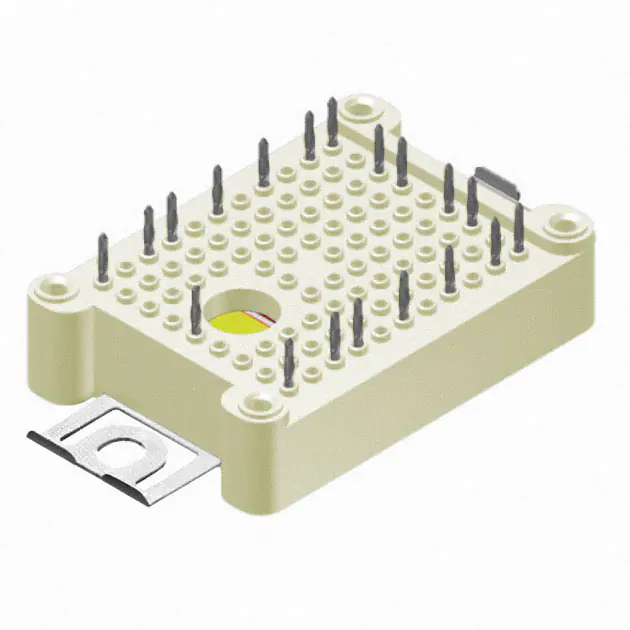

FPF1C2P5BF07AMOSFET 5N-CH 650V 36A F1 MODULE |
2395 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | 5 N-Channel (Solar Inverter) | Standard | 650V | 36A | 90mOhm @ 27A, 10V | 3.8V @ 250µA | - | - | 250W | -40°C ~ 150°C (TJ) | Chassis Mount |
