Switching Converter, SMPS Transformers,Transformers

Datasheet	Mfr. Part #	Stock	Price	Quantity	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

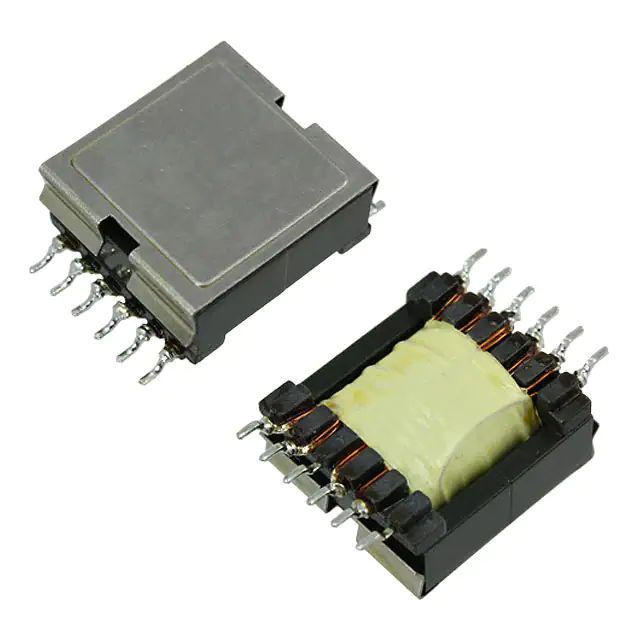

Datasheet	750311599 TRANS FLYBACK LT3748 8UH SMD Würth Elektronik	3657	11.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	-	1500Vrms	8µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)

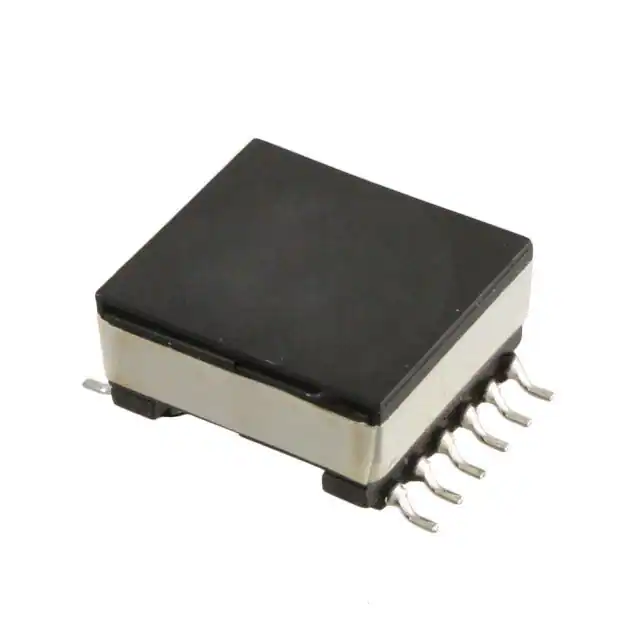

Datasheet	VP4-0047-R PULSE XFMR 3.8UH SMD Eaton - Electronics Division	3423	10.12	- + Add To Cart Inquiry Now	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-

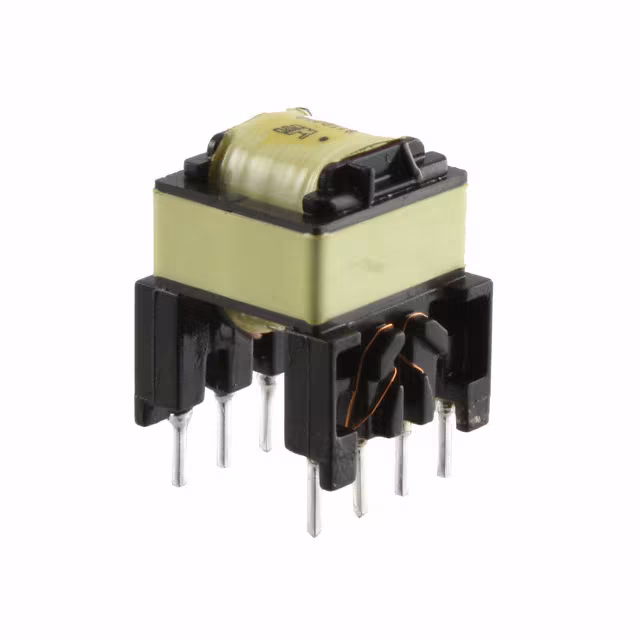

Datasheet	7508110210 TRANSFORMER FLYBACK LT3799 Würth Elektronik	3235	10.65	- + Add To Cart Inquiry Now	Tray	WE-UNIT, MID-OLLT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	LT3799	Linear Technology	120 ~ 200V	15V @ 10mA	4500Vrms	2mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	0.591 L x 0.620 W (15.00mm x 15.75mm)	0.732 (18.59mm)	0.591 L x 0.620 W (15.00mm x 15.75mm)
Datasheet	VPH4-0860-R PULSE XFMR 159.65UH SMD Eaton - Electronics Division	3400	11.32	- + Add To Cart Inquiry Now	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-

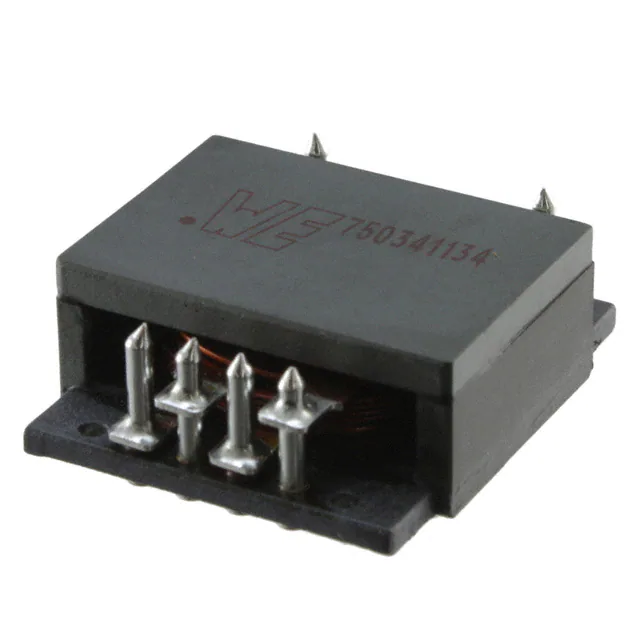

Datasheet	750341134 TRANSFORMER PLANAR 70UH SMD Würth Elektronik	2031	19.32	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	70µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)

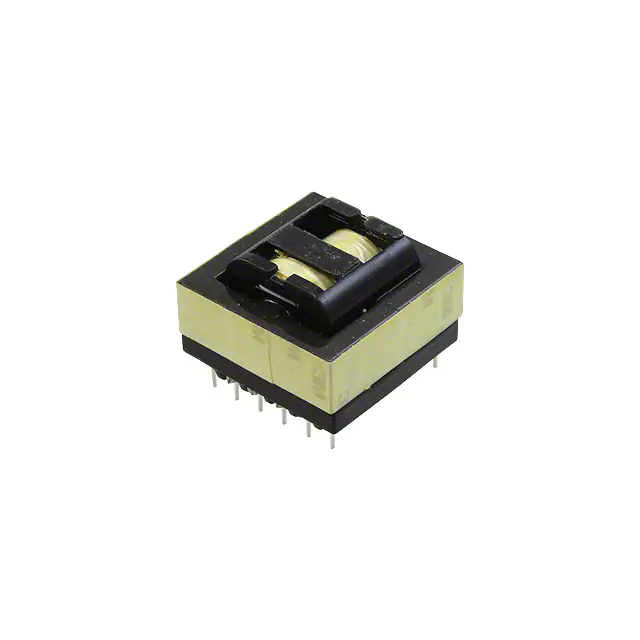

Datasheet	760895441 WE-LLCR RESONANT CONVERTER 600UH Würth Elektronik	3614	17.54	- + Add To Cart Inquiry Now	Tray	WE-LLCR	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	600µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.024 (26.00mm)	1.417 L x 1.417 W (36.00mm x 36.00mm)
Datasheet	760895431 WE-LLCR RESONANT CONVERTER 600UH Würth Elektronik	2689	17.54	- + Add To Cart Inquiry Now	Tray	WE-LLCR	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	600µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.024 (26.00mm)	1.417 L x 1.417 W (36.00mm x 36.00mm)
Datasheet	760895451 WE-LLCR RESONANT CONVERTER 600UH Würth Elektronik	3642	17.54	- + Add To Cart Inquiry Now	Tray	WE-LLCR	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	600µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.024 (26.00mm)	1.417 L x 1.417 W (36.00mm x 36.00mm)

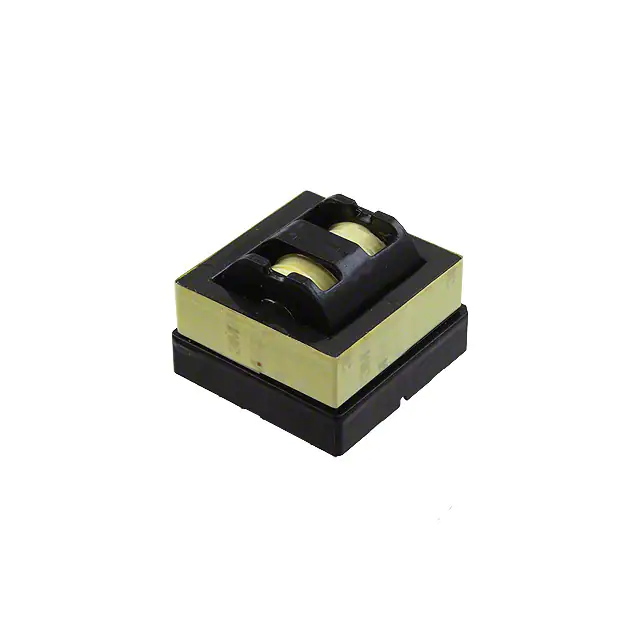

Datasheet	760895651 WE-LLCR RESONANT CONVERTER 500H Würth Elektronik	3162	18.84	- + Add To Cart Inquiry Now	Tray	WE-LLCR	Active	For AC/DC Converters	Resonant Converters	-	-	360 ~ 400V	-	4000Vrms	500µH @ 100kHz	70 ~ 120kHz	-40°C ~ 125°C	Through Hole	1.692 L x 1.732 W (43.00mm x 44.00mm)	1.181 (30.00mm)	1.692 L x 1.732 W (43.00mm x 44.00mm)
Datasheet	750317830 PUSH-PULL TRANSFORMER Würth Elektronik	450	3.22	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	12V	-	2500Vrms	480µH @ 10kHz	300 ~ 620kHz	-40°C ~ 125°C	Surface Mount	0.281 L x 0.265 W (7.14mm x 6.73mm)	0.165 (4.19mm)	0.402 L x 0.265 W (10.20mm x 6.73mm)
Datasheet	750315226 PUSH-PULL TRANSFORMER Würth Elektronik	3082	2.85	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Active	-	Forward, Push-Pull Converters	-	-	3.3V	-	-	-	-	-40°C ~ 125°C	Surface Mount	-	0.165 (4.19mm)	-

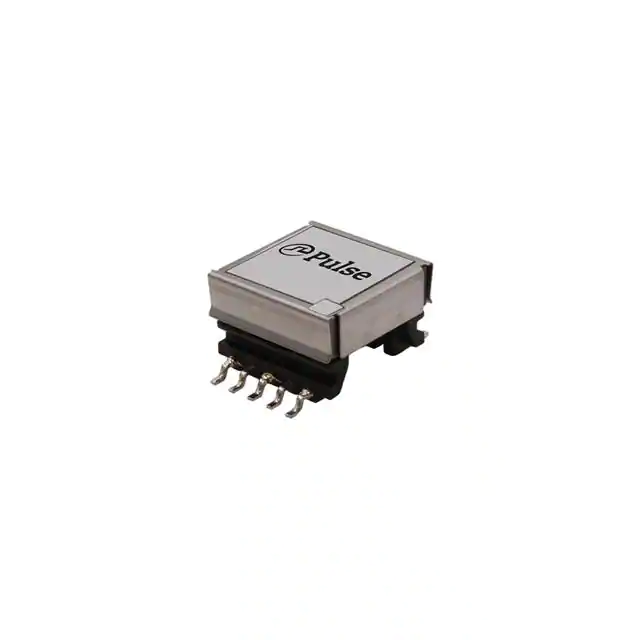

Datasheet	PGT6465NLT TRANSF FLYBACK 70-820V TO 5V/13V Pulse Electronics Power	150	3.60	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	70 ~ 820V	-	4000Vrms	205µH @ 100kHz	133kHz	-40°C ~ 130°C	Surface Mount	0.650 L x 0.642 W (16.50mm x 16.30mm)	0.433 (11.00mm)	0.862 L x 0.650 W (21.90mm x 16.50mm)

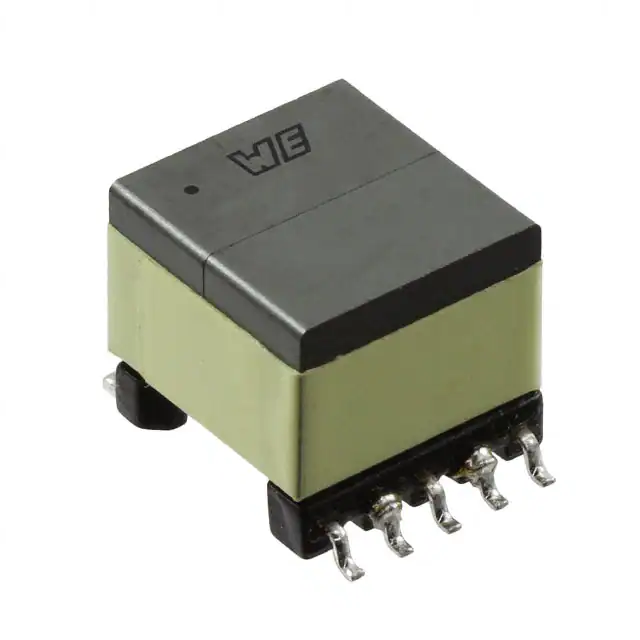

Datasheet	750315835 XFRMR FLYBACK DC/DC CONV SMD Würth Elektronik	200	3.50	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8304	Linear Technology	36 ~ 75V	-	1500Vrms	40µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.500 (12.70mm)	0.530 L x 0.699 W (13.46mm x 17.75mm)

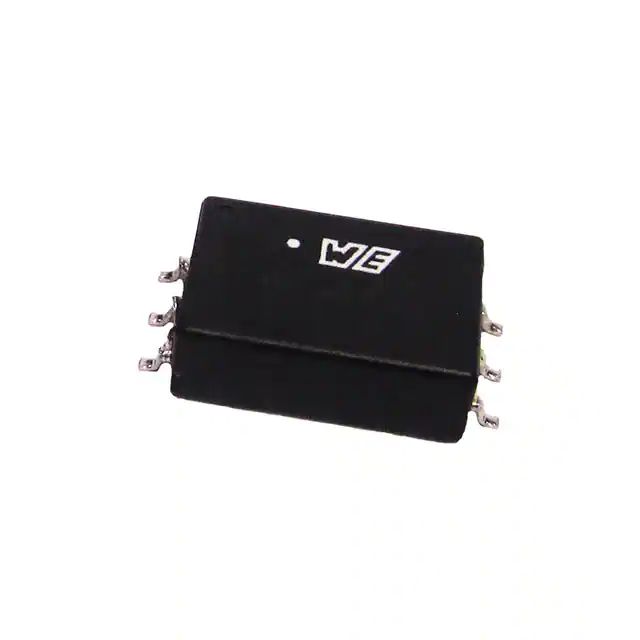

Datasheet	750316853 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	2677	4.49	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)

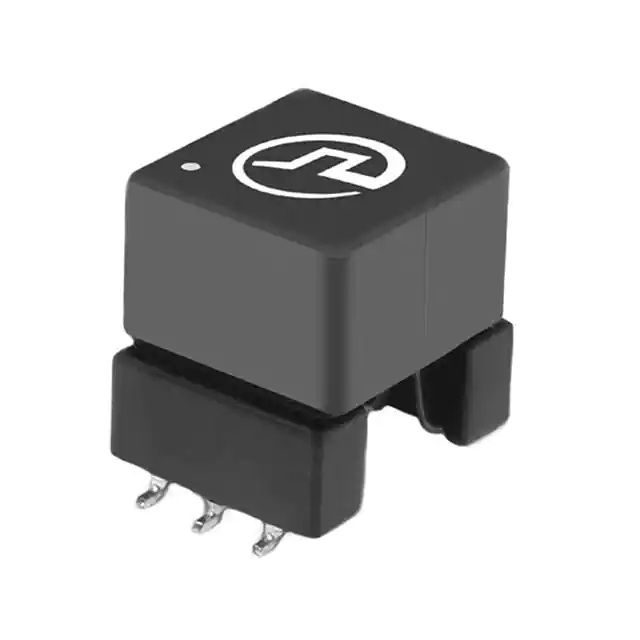

Datasheet	PM9595NLT TRANSFORMER FLYBACK SIC 3W Pulse Electronics Power	585	4.98	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT)	PM9595.XXNL	Active	For DC/DC Converters	Flyback Converters	-	-	12V	-	4300VDC	13µH	350kHz	-40°C ~ 125°C	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.539 (13.70mm)	0.512 L x 0.394 W (13.01mm x 10.00mm)

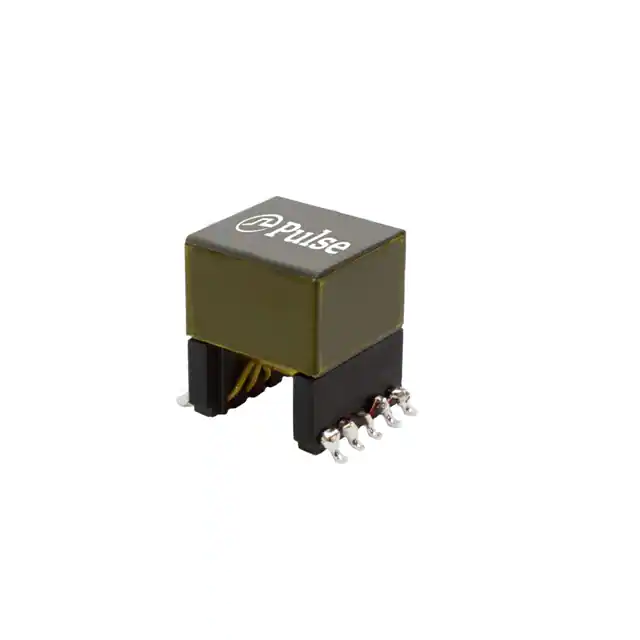

Datasheet	PA5112.003NLT TRANSF FLY 24W 48V TO 12V Pulse Electronics Power	3953	5.38	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	PA5112.XXXNL	Active	For DC/DC Converters	Flyback Converters	-	-	85 ~ 265V	-	3000Vrms	155µH @ 140kHz	140kHz	-40°C ~ 130°C	Surface Mount	0.531 L x 0.520 W (13.50mm x 13.20mm)	0.650 (16.50mm)	0.689 L x 0.531 W (17.50mm x 13.50mm)

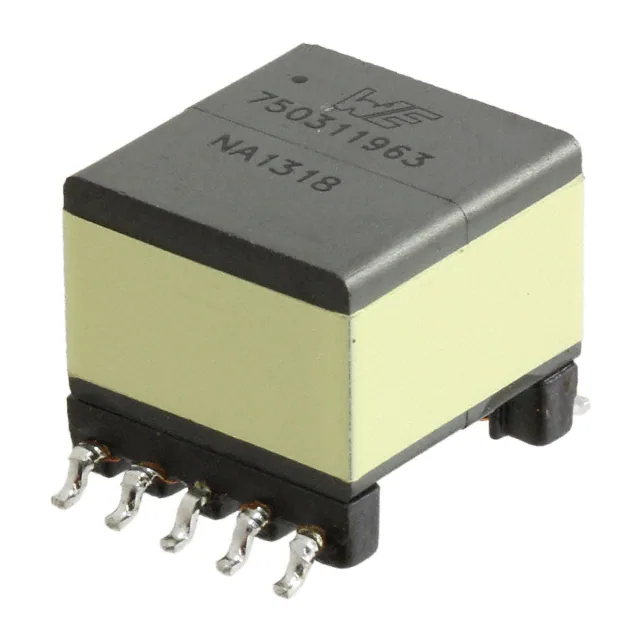

Datasheet	750311963 FLYBACK TRANSFORMER WE-FB Würth Elektronik	2552	3.85	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3511	Linear Technology	8 ~ 70V	-	1500Vrms	200µH @ 10kHz	50 ~ 300kHz	-	Surface Mount	-	0.505 (12.83mm)	0.530 L x 0.699 W (13.46mm x 17.75mm)

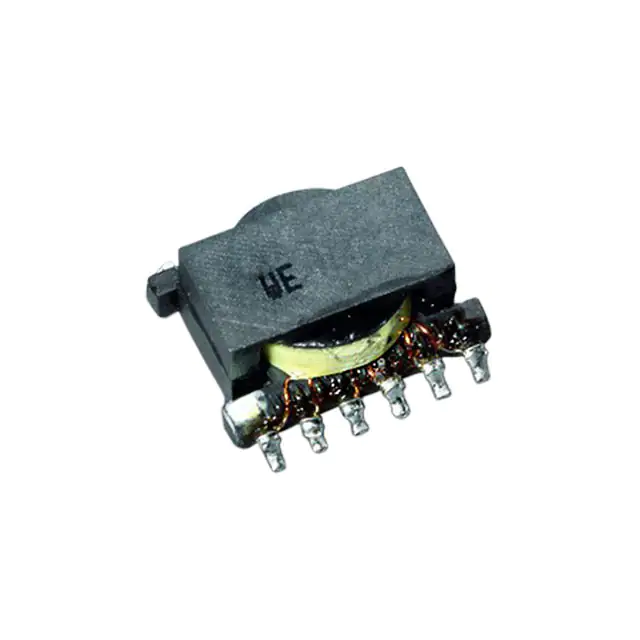

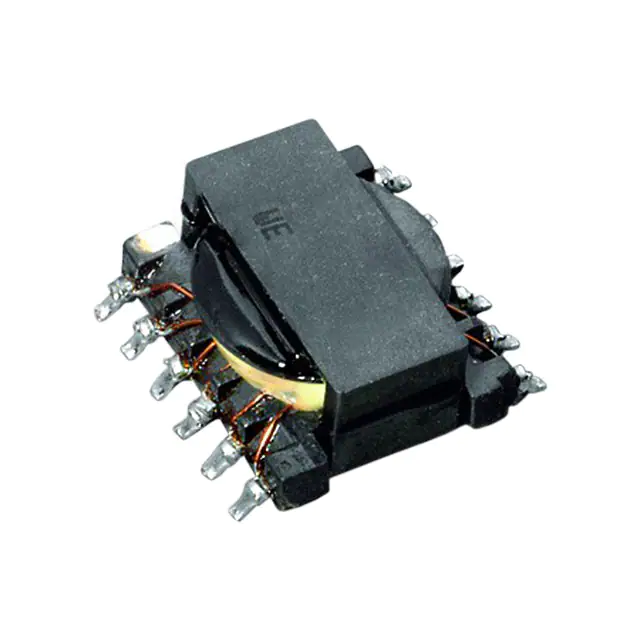

	749196131 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	3673	6.21	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VAC	10.9µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.508 L x 0.362 W (12.90mm x 9.20mm)	0.244 (6.20mm)	0.559 L x 0.508 W (14.20mm x 12.90mm)
	749196241 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	800	4.67	- + Add To Cart Inquiry Now	Tape & Reel (TR)	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VAC	6.6µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.642 L x 0.472 W (16.30mm x 12.00mm)	0.291 (7.40mm)	0.709 L x 0.642 W (18.00mm x 16.30mm)
	749196231 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	400	4.67	- + Add To Cart Inquiry Now	Tape & Reel (TR)	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VAC	8.3µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.642 L x 0.472 W (16.30mm x 12.00mm)	0.291 (7.40mm)	0.709 L x 0.642 W (18.00mm x 16.30mm)

Total 1400 Records«Prev 1... 23 24 25 262728 29 30...70 Next»
