Switching Converter, SMPS Transformers,Transformers

Datasheet	Mfr. Part #	Stock	Price	Quantity	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
Datasheet	PA3855.004NLT TRANSFORMER FLYBACK 21UH SMD Pulse Electronics Power	767	3.54	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
Datasheet	PA3856.002NLT TRANSFORMER FORWARD 100UH SMD Pulse Electronics Power	3932	3.68	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
Datasheet	PA3856.005NLT TRANSFORMER FORWARD 128UH SMD Pulse Electronics Power	700	3.68	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
Datasheet	PA3856.003NLT TRANSFORMER FORWARD 100UH SMD Pulse Electronics Power	649	3.68	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
Datasheet	750316770 PUSH-PULL TRANSFORMER TOR4.3/2.8 Würth Elektronik	2361	3.83	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	350µH @ 100kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.281 L x 0.265 W (7.14mm x 6.73mm)	0.165 (4.19mm)	0.412 L x 0.265 W (10.46mm x 6.73mm)

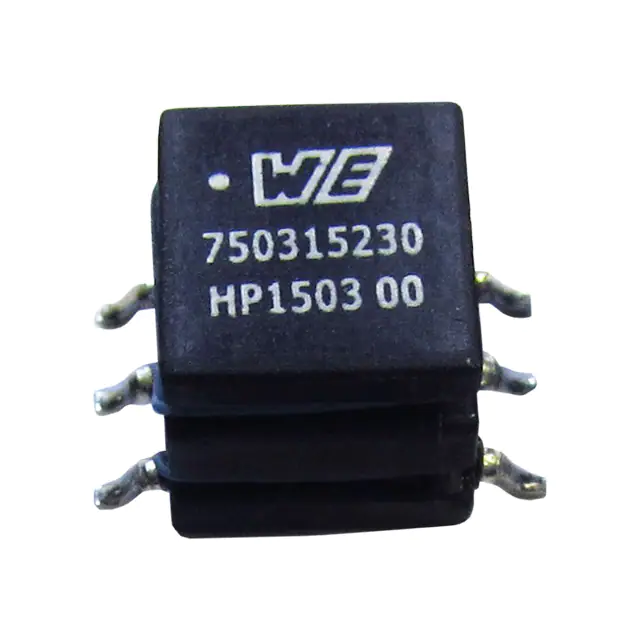

Datasheet	750315230 PUSH-PULL TRANSFORMER Würth Elektronik	2008	3.75	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Active	-	Forward, Push-Pull Converters	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.360 L x 0.315 W (9.14mm x 8.00mm)	0.300 (7.62mm)	-

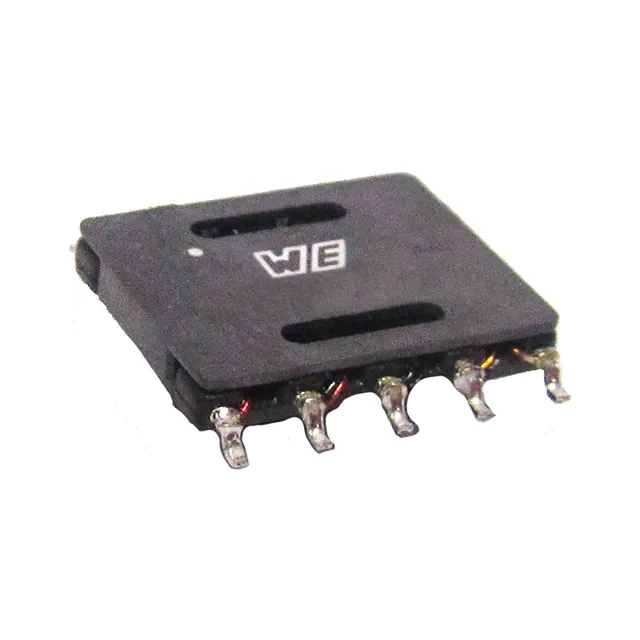

Datasheet	750316668 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	2958	3.99	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	60µH @ 10kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.458 L x 0.364 W (11.63mm x 9.25mm)	0.157 (3.99mm)	0.458 L x 0.496 W (11.63mm x 12.60mm)

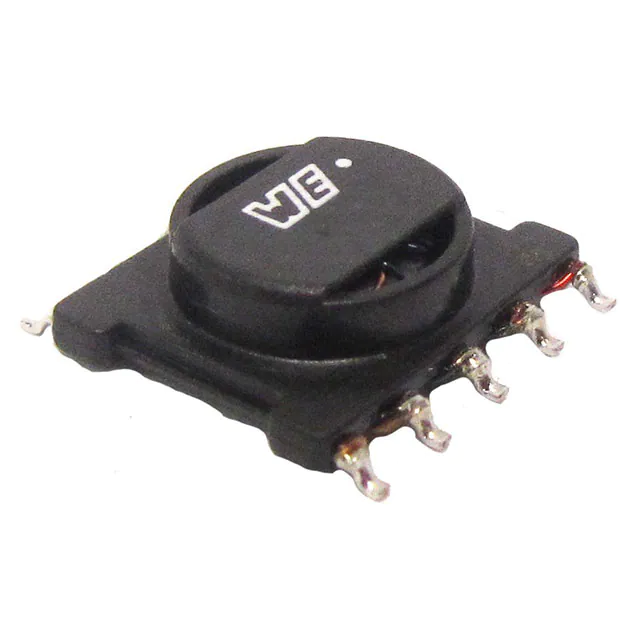

Datasheet	750316017 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	950	3.99	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	60µH @ 10kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.458 L x 0.364 W (11.63mm x 9.25mm)	0.145 (3.68mm)	0.458 L x 0.496 W (11.63mm x 12.60mm)
Datasheet	PA3965.002NL XFRMR FLYBACK7W Pulse Electronics Power	2765	2.97	- + Add To Cart Inquiry Now	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	0.657 L x 0.500 W (16.70mm x 12.70mm)	0.557 (14.15mm)	0.657 L x 0.650 W (16.70mm x 16.50mm)
Datasheet	750316887 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	2953	4.49	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)
Datasheet	750316888 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	2469	5.24	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)
Datasheet	750316854 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	3486	4.49	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)
Datasheet	750316886 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	2023	4.49	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)
Datasheet	PA5000.001NLT TRANSF FRWD 20W 48V TO 3.3V Pulse Electronics Power	3307	5.38	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	PA5000.XXXNL	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	-	3000Vrms	100µH @ 200kHz	200kHz	-40°C ~ 130°C	Surface Mount	0.531 L x 0.520 W (13.50mm x 13.20mm)	0.650 (16.50mm)	0.689 L x 0.531 W (17.50mm x 13.50mm)

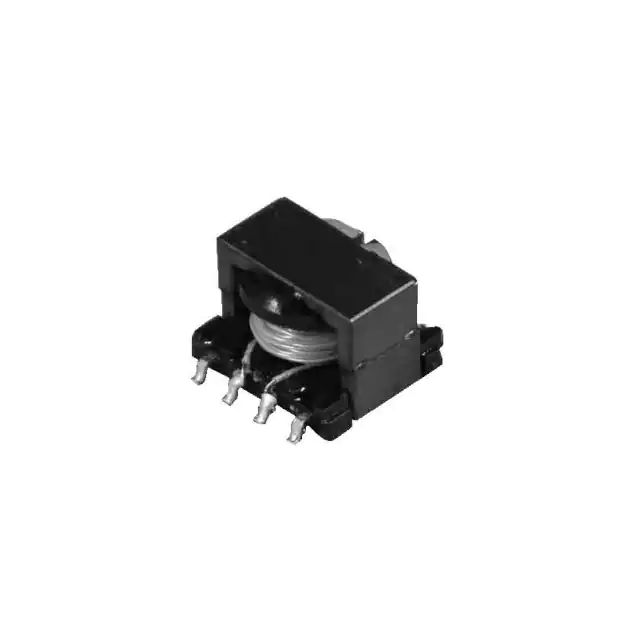

Datasheet	CEER117-AX05-15-007 FLYBACK TRANSFORMER Sumida America Components Inc.	510	5.30	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Active	For DC/DC Converters	Flyback Converters	ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV	Broadcom, ROHM	12V	5V @ 50mA	2500Vrms	7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.449 L x 0.390 W (11.40mm x 9.90mm)	0.331 (8.40mm)	0.508 L x 0.449 W (12.90mm x 11.40mm)
Datasheet	750817014 XFRMER FLYBACK AC/DC CONV SMD Würth Elektronik	990	4.66	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	16V @ 50mA	3000Vrms	1.84mH @ 10kHz	50kHz	-40°C ~ 125°C	Surface Mount	-	0.438 (11.13mm)	0.543 L x 0.941 W (13.80mm x 23.90mm)
Datasheet	7508170311 XFRMER FLYBACK AC/DC CONV SMD Würth Elektronik	997	4.66	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	16V @ 50mA	3000Vrms	491µH @ 10kHz	150kHz	-40°C ~ 125°C	Surface Mount	-	0.438 (11.13mm)	0.543 L x 0.941 W (13.80mm x 23.90mm)
Datasheet	749196511 TRANSFORMER 22.3UH 1.7A SMD Würth Elektronik	401	10.67	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	22.3µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.425 (10.80mm)	0.827 L x 1.169 W (21.00mm x 29.70mm)
Datasheet	749196530 TRANSFORMER 4.3UH 1.91A SMD Würth Elektronik	120	8.10	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	4.3µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.425 (10.80mm)	0.827 L x 1.169 W (21.00mm x 29.70mm)
Datasheet	749196520 TRANSFORMER 5.3UH 1.91A SMD Würth Elektronik	120	8.10	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	WE-FLEX	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	5.3µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.425 (10.80mm)	0.827 L x 1.169 W (21.00mm x 29.70mm)

Total 1400 Records«Prev 1... 7 8 9 101112 13 14...70 Next»
