Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
11PM-K043BSTEP MOTOR HYBRID BIPOLAR 24V |
2410 | 38.08 |
Add To CartInquiry Now |
Bulk | 11PM-K | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 14.16 / 100 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.910 (23.11mm) | Connector | - | 1.3 Ohms |
|
Datasheet |
|
11PM-K142USTEP MOTOR HYBRID UNIPOLAR 24V |
3356 | 38.08 |
Add To CartInquiry Now |
Bulk | 11PM-K | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200 | 1.8° | - | 14.87 / 105 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.910 (23.11mm) | Connector | - | 2.9 Ohms |
|
Datasheet |
|
11PM-K241USTEP MOTOR HYBRID UNIPOLAR 24V |
3553 | 38.08 |
Add To CartInquiry Now |
Bulk | 11PM-K | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200 | 1.8° | - | 20.53 / 145 | Square - 1.100 x 1.100 (28.00mm x 28.00mm | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.910 (23.11mm) | Connector | - | 3.4 Ohms |
|
Datasheet |
|
11PM-K142BSTEP MOTOR HYBRID BIPOLAR 24V |
3697 | 38.08 |
Add To CartInquiry Now |
Bulk | 11PM-K | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 20.53 / 145 | Square - 1.100 x 1.100 (28.00mm x 28.00mm | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.910 (23.11mm) | Connector | - | 1.5 Ohms |
|
Datasheet |
|
11PM-K241BSTEP MOTOR HYBRID BIPOLAR 24V |
3827 | 38.08 |
Add To CartInquiry Now |
Bulk | 11PM-K | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 28.33 / 200 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.910 (23.11mm) | Connector | - | 1.7 Ohms |
|
Datasheet |
|
WO-417-11-18STEPPER MOTOR |
2239 | 38.79 |
Add To CartInquiry Now |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 16 / 113 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
Datasheet |
|
SM2562C20B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3409 | 39.16 |
Add To CartInquiry Now |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 198.3 / 1400 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 1.5 Ohms |
|
Datasheet |
|
103H7821-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
2285 | 43.94 |
Add To CartInquiry Now |
Box | H | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 124.6 / 880 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.35 Ohms |
|
Datasheet |
|
SH1421-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2167 | 44.67 |
Add To CartInquiry Now |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 32.57 / 230 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 0.85 Ohms |
|
Datasheet |
|
SM2563C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2057 | 45.40 |
Add To CartInquiry Now |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 333 / 2350 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.52 Ohms |
|
Datasheet |
|
SH1422-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2993 | 45.40 |
Add To CartInquiry Now |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 48.15 / 340 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.05 Ohms |
|
Datasheet |
|
SH1601-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2688 | 46.13 |
Add To CartInquiry Now |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 97.71 / 690 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.2 Ohms |
|
Datasheet |
|
103H7121-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
2939 | 49.06 |
Add To CartInquiry Now |
Box | H | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | - | 77.89 / 550 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.54 Ohms |
|
Datasheet |
|
SH1603-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
3515 | 57.12 |
Add To CartInquiry Now |
Tray | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 304.5 / 2150 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.3 Ohms |
|
Datasheet |
|
103H7823-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
3392 | 57.85 |
Add To CartInquiry Now |
Tray | H | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 382.4 / 2700 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.65 Ohms |
|
Datasheet |
|
103H5210-5214STEP, F2 MOTOR, SQ.42, 2 PHASE S |
2047 | 60.78 |
Add To CartInquiry Now |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 72.22 / 510 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 4.8 Ohms |
|
Datasheet |
|
1478STPR MTR BIPOLAR 3.2V 2.8A/PHASE |
2416 | 61.55 |
Add To CartInquiry Now |
- | - | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200 | 1.8° | - | 270 / 1906.62 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms |
|
Datasheet |
|

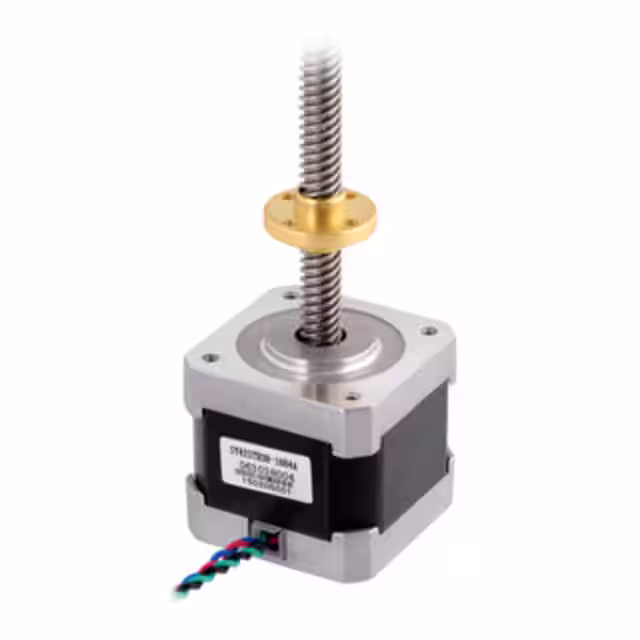

2689STEPPER MOTOR W/18CM LEAD SCREW |
2122 | 62.75 |
Add To CartInquiry Now |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|
Datasheet |
|
SH2141-5541PSTEP, F2, SQ.14, 1.8, , , BIPOLA |
3903 | 62.97 |
Add To CartInquiry Now |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 300 mA | 200 | 1.8° | - | 0.92 / 7 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms |
|
Datasheet |
|

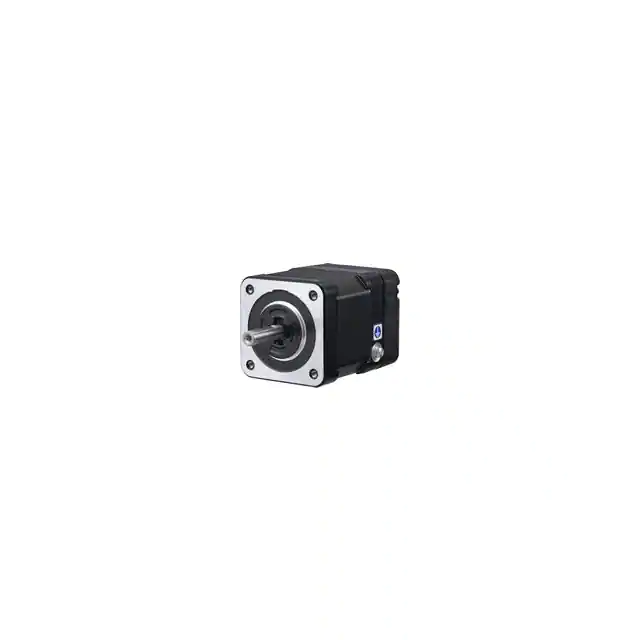

PBM423FXK30-MPB, PB, SQ.42, FOR PB4A, , |
2269 | 0.00 |
Add To CartInquiry Now |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 49.56 / 350 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.236 (6.00mm) | 0.811 (20.60mm) | 1.220 (31.00mm) | Wire Leads with Connector | -10°C ~ 40°C |
