Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
PMT-20N12AL04-04SPEAKER 4OHM 1W TOP PORT 75.7DB |
2089 | 5.94 |
Add To CartInquiry Now |
Bulk | PMT | Active | Magnetic | Full Range | 350 Hz ~ 20 kHz | 378.1Hz | 4.25 Ohms | 75.70 | 1W/1M | Half Space Sensitivity | 1 W | - | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Wire Leads | 0.906 Dia (23.00mm) |
|
Datasheet |
|

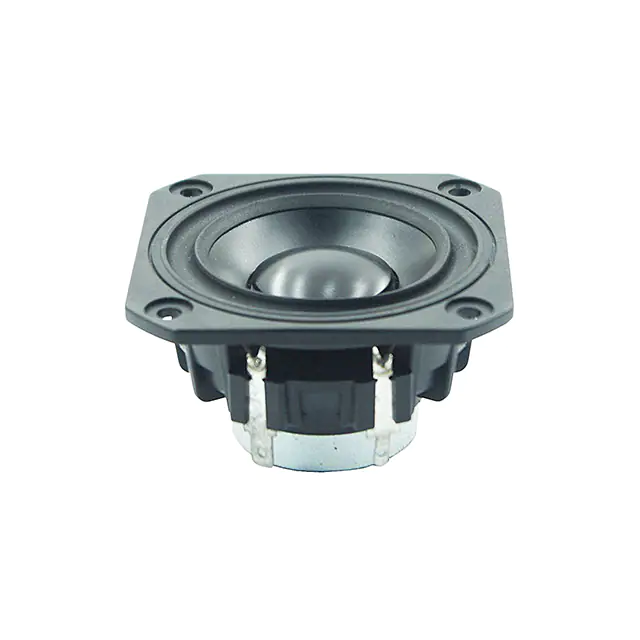

PLS-P830985SPEAKER 4OHM 30W TOP PORT 82.3DB |
3554 | 19.73 |
Add To CartInquiry Now |
Bulk | PLS | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 117.16Hz | 3.95 Ohms | 82.30 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd | - | - | Solder Eyelet(s) | 2.717 L x 2.717 W (69.00mm x 69.00mm) |
|
Datasheet |
|

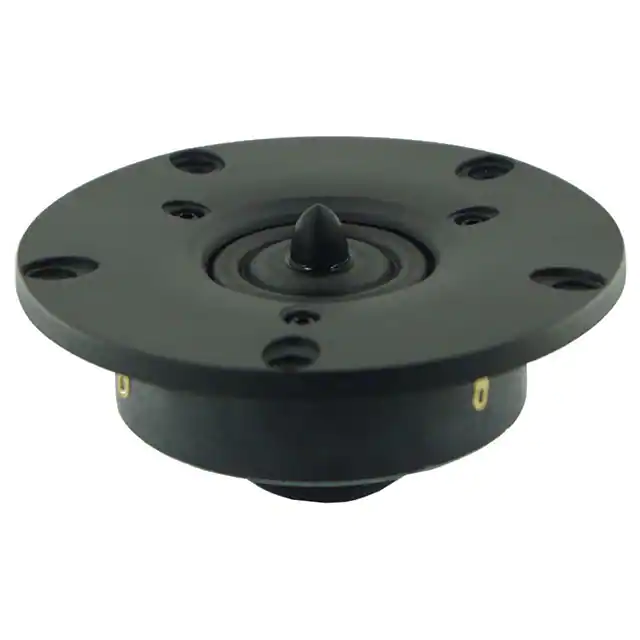

XT25TG30-04TWEETR 4OHM 110W TOP PORT 87.2DB |
476 | 28.47 |
Add To CartInquiry Now |
Bulk | XT | Active | Magnetic | Tweeter | 400 Hz ~ 20 kHz | 436.13Hz | 3.47 Ohms | 87.20 | 1W/1M | Half Space Sensitivity | 110 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 4.094 Dia (104.00mm) |
|
Datasheet |
|
TC5FB00-08SPEAKER 8OHM 5W TOP PORT 79.1DB |
232 | 7.73 |
Add To CartInquiry Now |
Bulk | TC | Active | Magnetic | Full Range | 250 Hz ~ 20 kHz | 261.01Hz | 7.52 Ohms | 79.10 | 1W/1M | Half Space Sensitivity | 5 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 1.594 L x 1.594 W (40.50mm x 40.50mm) |
|
Datasheet |
|
TC6FD00-04SPEAKER 4OHM 15W TOP PORT 81.6DB |
3555 | 8.88 |
Add To CartInquiry Now |
Bulk | TC | Active | Magnetic | Full Range | 150 Hz ~ 20 kHz | 175.19Hz | 4.09 Ohms | 81.60 | 1W/1M | Half Space Sensitivity | 15 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.165 L x 2.165 W (55.00mm x 55.00mm) |
|
Datasheet |
|
TC8FD05-04SPEAKER 4 OHM 20W TOP 85.2DB |
965 | 9.88 |
Add To CartInquiry Now |
Bulk | TC | Active | Magnetic | Full Range | 20 Hz ~ 10 kHz | 146.8Hz | 3.34 Ohms | 85.20 | 1W/1M | Half Space Sensitivity | 20 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.201 L x 3.201 W (81.30mm x 81.30mm) |
|
Datasheet |
|

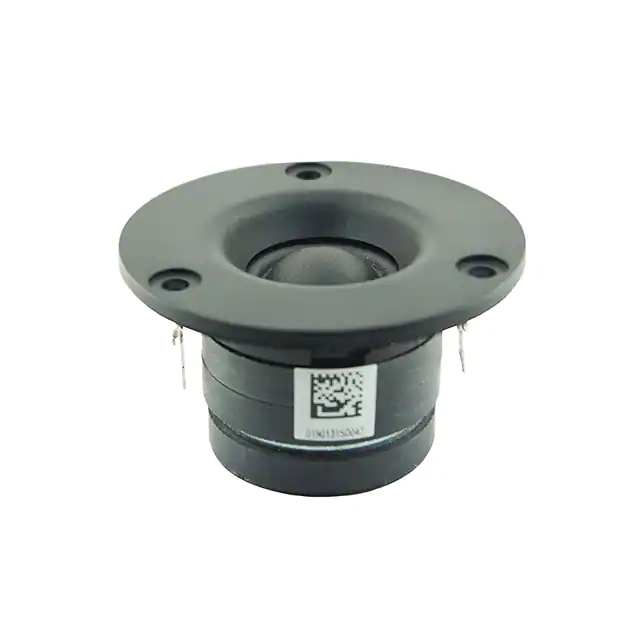

DX20BF00-08TWEETER 8OHM 60W TOP PORT 86.3DB |
550 | 12.29 |
Add To CartInquiry Now |
Bulk | DX | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 810Hz | 8.27 Ohms | 86.30 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 2.598 Dia (66.00mm) |
|
Datasheet |
|
TC6FC00-04SPEAKER 4OHM 15W TOP PORT 83.2DB |
2827 | 12.76 |
Add To CartInquiry Now |
Bulk | TC | Active | Magnetic | Full Range | 150 Hz ~ 20 kHz | 186.8Hz | 3.89 Ohms | 83.20 | 1W/1M | Half Space Sensitivity | 15 W | - | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.165 L x 2.165 W (55.00mm x 55.00mm) |
|
Datasheet |
|
PLS-65F25AL04-04SPEAKER 4OHM 25W TOP PORT 82.9DB |
2678 | 12.77 |
Add To CartInquiry Now |
Bulk | PLS | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 120.6Hz | 4.33 Ohms | 82.90 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 2.717 L x 2.717 W (69.00mm x 69.00mm) |
|
Datasheet |
|
TC9FD18-08SPEAKER 8OHM 30W TOP PORT 84.4DB |
916 | 13.49 |
Add To CartInquiry Now |
Bulk | TC | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 124.86Hz | 7.75 Ohms | 84.40 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.297 L x 3.297 W (83.75mm x 83.75mm) |
