Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
TR1205S030YN8SPEAKER 8OHM 300MW TOP PORT |
204 | 5.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1.4kHz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472 L x 0.217 W (12.00mm x 5.50mm) |
|
Datasheet |
|
CR1511L035UN8GDAMICROSPEAKER WITH ADHESIVE GASKE |
120 | 5.00 |
Add To CartInquiry Now |
Tray | - | Active | - | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 71.00 | 1W/1M | Sensitivity | 700 mW | 1 W | Top | Rectangular | Foam | - | - | - | Spring Type | 0.591 L x 0.433 W (15.00mm x 11.00mm) |
|
Datasheet |
|
SOC40S19DN4SPEAKER 4OHM 5W TOP PORT |
108 | 8.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 160 Hz ~ 15 kHz | 160Hz | 4 Ohms | 87.00 | 1W/1M | Sensitivity | 5 W | 10 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.575 Dia (40.00mm) |
|
Datasheet |
|

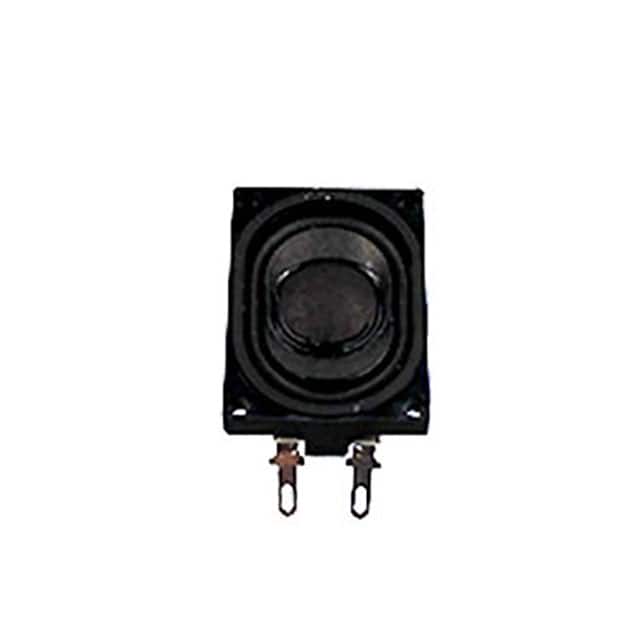

SOR4030S11ZN25SPEAKER - 40 MM X 30MM X 11.5MM |
100 | 7.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 450 Hz ~ 15 kHz | 450Hz | 25 Ohms | 74.00 | 1W/1M | Sensitivity | 1 W | 1.5 W | Top | Rectangular | Paper | Nd-Fe-B | - | - | Solder Pads | 1.575 L x 1.181 W (40.00mm x 30.00mm) |
| |
|
BOX1-18082-7SPSPEAKER BOX WITH SOLDER PADS - 1 |
100 | 7.25 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 1.575 L x 0.472 W (40.00mm x 12.00mm) |
| |
|

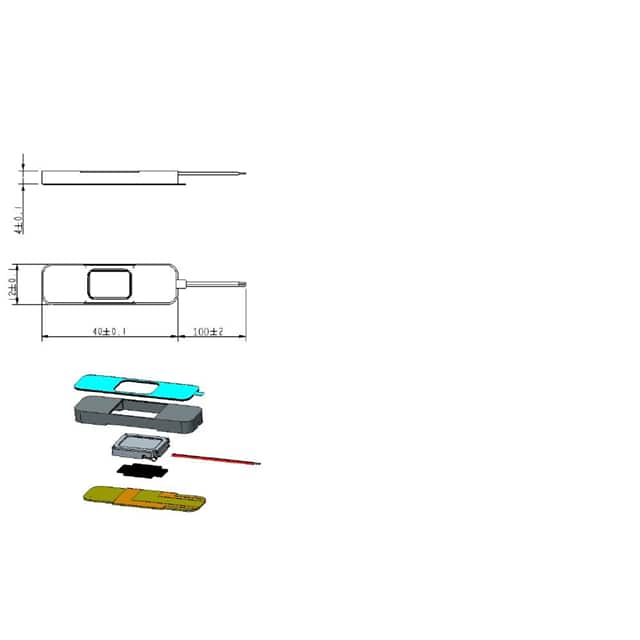

BOX1-18082-2B100GDASPEAKER BOX WITH WIRES + GASKET |
100 | 7.25 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.575 L x 0.472 W (40.00mm x 12.00mm) |
| |
|
BOX1-18082-2B100SPEAKER BOX WITH WIRES - 1 SPEAK |
3721 | 7.25 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.575 L x 0.472 W (40.00mm x 12.00mm) |
| |
|
CR1511L025YN8WPMICROSPEAKER - 11 X 15 X 3.5MM - |
100 | 5.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591 L x 0.433 W (15.00mm x 11.00mm) |
|
Datasheet |
|
CO2014L038BN8MDASPEAKER WITH GASKET + MESH - 20 |
100 | 5.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 93.00 | 500mW/10cm | Sensitivity | 500 mW | 1 W | Top | Oval | Plastic | Nd-Fe-B | - | - | Spring Type | 0.787 L x 0.551 W (20.00mm x 14.00mm) |
|
Datasheet |
|
CR1813L025UN8-2MICROSPEAKER - 13 X 18 X 2.5MM - |
100 | 5.00 |
Add To CartInquiry Now |
Tray | - | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 75.00 | 1W/1M | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP66 - Dust Tight, Water Resistant | - | Spring Type | 0.709 L x 0.512 W (18.00mm x 13.00mm) |
