Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

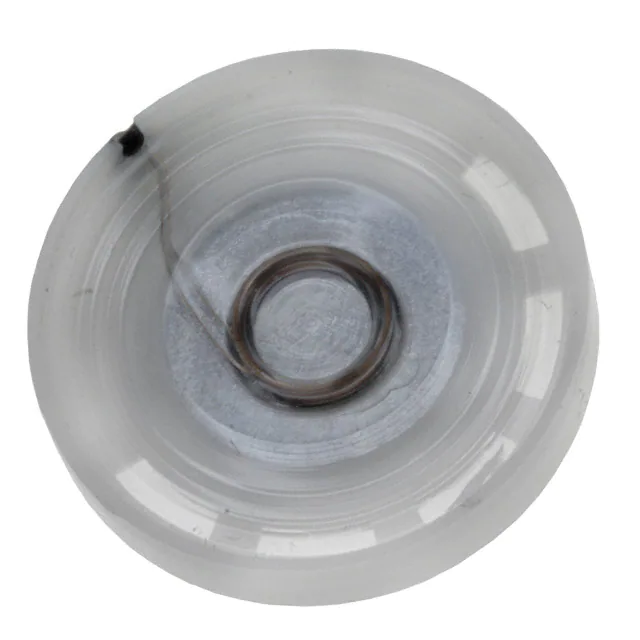

PSR-23F08S-JQSPEAKER 8OHM 250MW TOP PORT 81DB |
362 | 0.86 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 900 Hz ~ 6.5 kHz | 900Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.906 Dia (23.00mm) |
|
Datasheet |
|

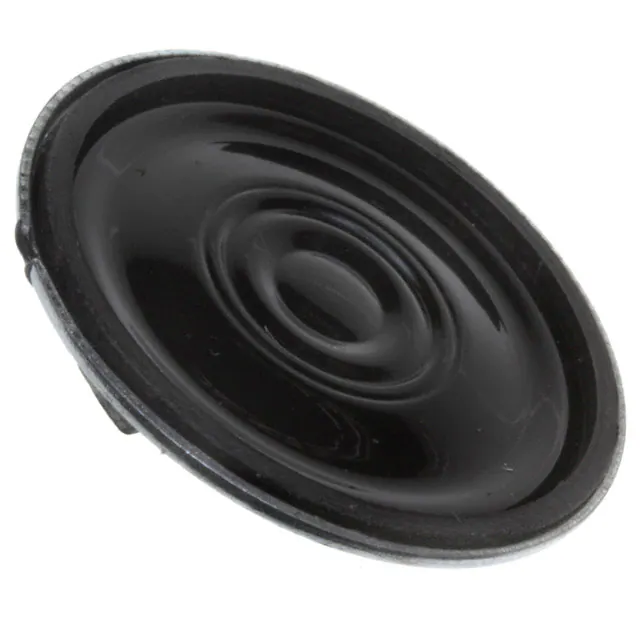

PSR-28N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
3564 | 2.25 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 700 Hz ~ 8 kHz | 700Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.102 Dia (28.00mm) |
|
Datasheet |
|
PSR-40N08A05-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
3470 | 2.48 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575 Dia (40.00mm) |
|
Datasheet |
|
PSR-36N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
3185 | 2.80 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 550 Hz ~ 7 kHz | 550Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.417 Dia (36.00mm) |
|
Datasheet |
|
PSR-57N08A01-AQSPEAKER 8OHM 500MW TOP PORT 92DB |
338 | 2.86 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 600 Hz ~ 4 kHz | 600Hz | 8 Ohms | 92.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 2.244 Dia (57.00mm) |
|
Datasheet |
|

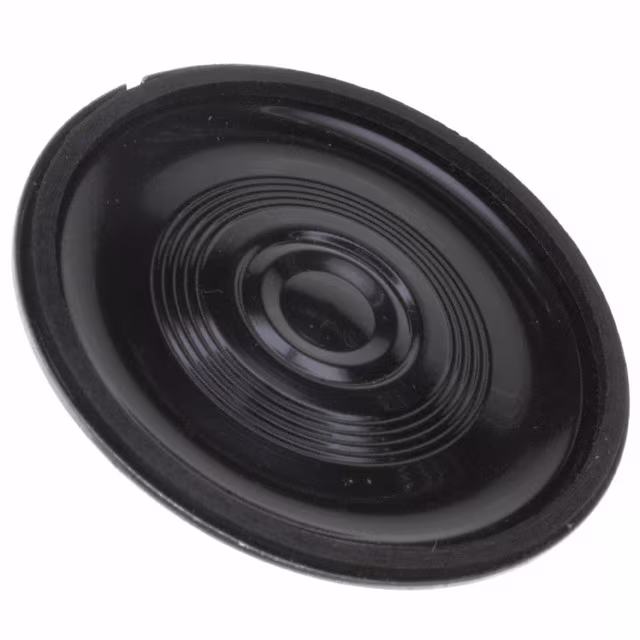

PSR-45N08A-JQSPEAKER 8OHM 250MW TOP PORT 88DB |
3089 | 2.57 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.772 Dia (45.00mm) |
|
Datasheet |
|

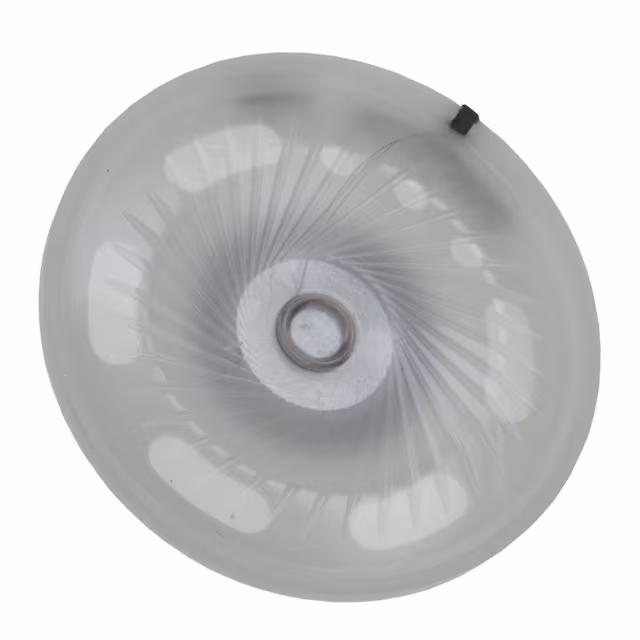

PSR-50F08S-JQSPEAKER 8OHM 250MW TOP PORT 91DB |
3331 | 2.59 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.969 Dia (50.00mm) |
|
Datasheet |
|
PSR15N08AKSPEAKER 8OHM 500MW TOP PORT 89DB |
2088 | 3.00 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 72.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591 Dia (15.00mm) |
|
Datasheet |
|
PB-1715PKSPEAKER 8OHM 200MW TOP PORT 87DB |
3340 | 3.84 |
Add To CartInquiry Now |
Bulk | PB | Active | Magnetic | General Purpose | 1.5 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.669 Dia (17.00mm) |
|
Datasheet |
|

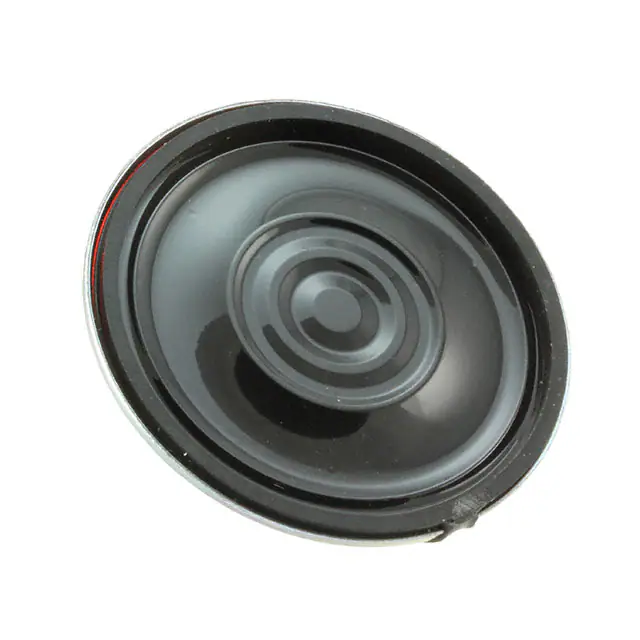

PSR36N08AKSPEAKER 8OHM 1W TOP PORT 104DB |
2527 | 4.10 |
Add To CartInquiry Now |
Bulk | PSR | Active | Magnetic | General Purpose | 570 Hz ~ 5 kHz | 570Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.417 Dia (36.00mm) |
