Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
JM1AN-ZTMP-DC6V-FRELAY GEN PURPOSE SPST 20A 6V |
2507 | 0.00 |
Add To CartInquiry Now |
Box | JM | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 150 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
Datasheet |
|
JM1AN-ZTMP-DC9V-FRELAY GEN PURPOSE SPST 20A 9V |
2668 | 0.00 |
Add To CartInquiry Now |
Box | JM | Obsolete | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 100 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
Datasheet |
|

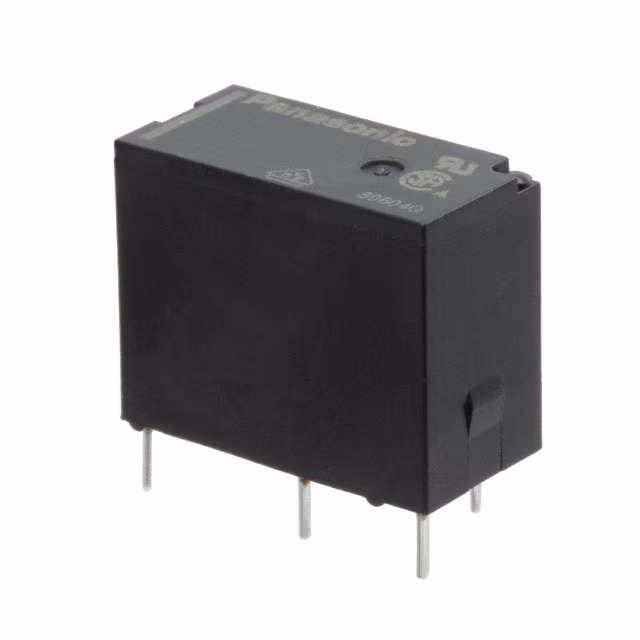

JQ1-48V-FRELAY GEN PURPOSE SPDT 5A 48V |
3816 | 0.00 |
Add To CartInquiry Now |
Bulk | JQ | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 36 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
JQ1A-B-12V-FRELAY GEN PURPOSE SPST 5A 12V |
3078 | 0.00 |
Add To CartInquiry Now |
Bulk | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-B-18V-FRELAY GEN PURPOSE SPST 10A 18V |
3942 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class B | 14.4 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-B-24V-FRELAY GEN PURPOSE SPST 10A 24V |
2475 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class B | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
2549 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 40 mA | Non Latching | - | PC Pin | - | Class B | 4 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
3319 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 4.8 VDC | 0.3 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-B-9V-FRELAY GEN PURPOSE SPST 10A 9V |
2951 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 7.2 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1AP-F-24V-FRELAY GEN PURPOSE SPST 10A 24V |
2796 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1APF-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
3126 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1APF-F-12V-FRELAY GEN PURPOSE SPST 10A 12V |
3245 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1APF-F-24V-FRELAY GEN PURPOSE SPST 10A 24V |
2845 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1APF-F-5V-FRELAY GEN PURPOSE SPST 10A 5V |
2492 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 40 mA | Non Latching | - | PC Pin | - | Class F | 4 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1APF-F-9V-FRELAY GEN PURPOSE SPST 10A 9V |
3926 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class F | 7.2 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
JQ1-B-12V-FRELAY GEN PURPOSE SPDT 5A 12V |
2153 | 0.00 |
Add To CartInquiry Now |
Bulk | JQ | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
JQ1-B-24V-FRELAY GEN PURPOSE SPDT 5A 24V |
2985 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
JQ1-F-5V-FRELAY GEN PURPOSE SPDT 5A 5V |
2467 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 80 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1P-48V-FRELAY GEN PURPOSE SPDT 10A 48V |
3379 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 38.4 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
JQ1P-B-18V-FRELAY GEN PURPOSE SPDT 10A 18V |
3495 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 110VDC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 14.4 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
