Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
G4Q-211A DC24RELAY GEN PURPOSE DPDT 5A 24V |
3010 | 0.00 |
Add To CartInquiry Now |
Bulk | G4Q | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 162 mA | Non Latching | - | Solder Lug | - | - | 16.8 VDC | 2.4 VDC | 60 ms | - | -10°C ~ 55°C | Silver Alloy |
|
Datasheet |
|
G2R-1-S-T130 DC24RELAY GEN PURPOSE SPDT 10A 24V |
3539 | 0.00 |
Add To CartInquiry Now |
Bulk | G2RS | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 21.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - |
|
Datasheet |
|
ALE7PB05RELAY GEN PURPOSE SPST 16A 5V |
2667 | 0.00 |
Add To CartInquiry Now |
Tray | ALE | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|

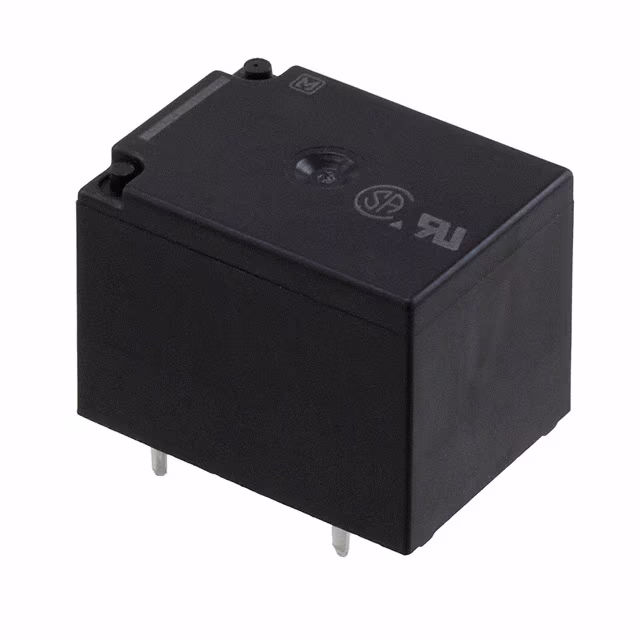

JS1F-F-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
2716 | 0.00 |
Add To CartInquiry Now |
Tube | JS | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
AHN36006RELAY GEN PURPOSE SPST 16A 6V |
3579 | 0.00 |
Add To CartInquiry Now |
Bulk | AHN | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 88.2 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
ALE1PB18RELAY GEN PURPOSE SPST 16A 18V |
3747 | 0.00 |
Add To CartInquiry Now |
Bulk | ALE | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
ALE7PF05RELAY GEN PURPOSE SPST 16A 5V |
4000 | 0.00 |
Add To CartInquiry Now |
Tray | ALE | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.25 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
ALE7PF06RELAY GEN PURPOSE SPST 16A 6V |
2757 | 0.00 |
Add To CartInquiry Now |
Tray | ALE | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
HC1-HTM-AC115V-FRELAY GEN PURPOSE SPDT 10A 115V |
3786 | 0.00 |
Add To CartInquiry Now |
Box | HC | Obsolete | Chassis Mount | 115VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold |
|
Datasheet |
|
HC2E-H-DC110V-FRELAY GEN PURPOSE DPDT 3A 110V |
2658 | 0.00 |
Add To CartInquiry Now |
Box | HC | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 11 mA | Non Latching | - | Plug In, 8 Pin | Sealed - Fully | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold |
|
Datasheet |
|
HC2E-H-DC6V-FRELAY GEN PURPOSE DPDT 3A 6V |
3932 | 0.00 |
Add To CartInquiry Now |
Box | HC | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 150 mA | Non Latching | - | Plug In, 8 Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold |
|
Datasheet |
|
HC2E-HP-AC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
3685 | 0.00 |
Add To CartInquiry Now |
Box | HC | Obsolete | Through Hole | 12VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold |
|
Datasheet |
|
HL2-L-DC6V-D-FRELAY GEN PURPOSE DPDT 10A 6V |
2628 | 0.00 |
Add To CartInquiry Now |
Bulk | HL | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 150 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
HL2-PL-DC12V-FRELAY GEN PURPOSE DPDT 10A 12V |
2088 | 0.00 |
Add To CartInquiry Now |
Bulk | HL | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 75 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
JM1AN-ZTMP-DC12V-FRELAY GEN PURPOSE SPST 20A 12V |
2555 | 0.00 |
Add To CartInquiry Now |
Box | JM | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 75 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
Datasheet |
|
JQ1AP-F-12V-FRELAY GEN PURPOSE SPST 10A 12V |
2511 | 0.00 |
Add To CartInquiry Now |
Box | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
| |
|
J7ARN-E9-DC24REVERSIBLE CONTACTOR |
2891 | 0.00 |
Add To CartInquiry Now |
Bulk | J7ARN | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
J7ARN-E9-DC12REVERSIBLE CONTACTOR |
2922 | 0.00 |
Add To CartInquiry Now |
Bulk | J7ARN | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
MY4N-AC110/120RELAY GEN PURPOSE 4PDT 3A 120V |
3938 | 0.00 |
Add To CartInquiry Now |
Bulk | MY | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 8.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) |
|
Datasheet |
|
MM4PN DC125RELAY GEN PURPOSE 4PDT 7.5A 125V |
2922 | 0.00 |
Add To CartInquiry Now |
Bulk | MM | Active | Socketable | 125VDC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | 21.6 mA | Non Latching | Lighted Indicator | Plug In, 15 Pin (Octal) | - | - | 87.5 VDC | 12.5 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) |
