Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
T9AS1D12-24-01RELAY GEN PURP |
2784 | 4.42 |
Add To CartInquiry Now |
Bulk | T9A | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 41.7 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
| |
|
G6RL-1-ASI-PL DC24RELAY GEN PURPOSE SPDT 10A 24V |
3452 | 4.45 |
Add To CartInquiry Now |
Box | G6RL | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Nom | 9.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datasheet |
|
L115F11CH5VDCS1.5URELAY GEN PURPOSE SPDT 50A 5V |
2134 | 4.45 |
Add To CartInquiry Now |
Tube | L115F1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
Datasheet |
|
G6RL-1A-ASI DC48RELAY GEN PURPOSE SPST 10A 48V |
3492 | 4.46 |
Add To CartInquiry Now |
Bulk | G6RL | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) |
|
Datasheet |
|
T9AS5D12-48RELAY GEN PURPOSE SPDT 20A 48V |
3059 | 4.47 |
Add To CartInquiry Now |
Bulk | T9A | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 21 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
J1512CP240VAC1.2DRELAY GEN PURPOSE DPDT 20A 240V |
2820 | 4.47 |
Add To CartInquiry Now |
Tray | J151 | Active | Through Hole | 240VAC | DPDT (2 Form C) | 20 A | 300VAC - Max | 12.6 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
J1511CP240VAC1.2DRELAY GEN PURPOSE SPDT 20A 240V |
2921 | 4.47 |
Add To CartInquiry Now |
Tray | J151 | Active | Through Hole | 240VAC | SPDT (1 Form C) | 20 A | 300VAC - Max | 12.6 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
| |
|
7760056308DRI314615L |
2144 | 4.47 |
Add To CartInquiry Now |
Bulk,Bulk | DRI | Active | Socketable | 115VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 9.3 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|

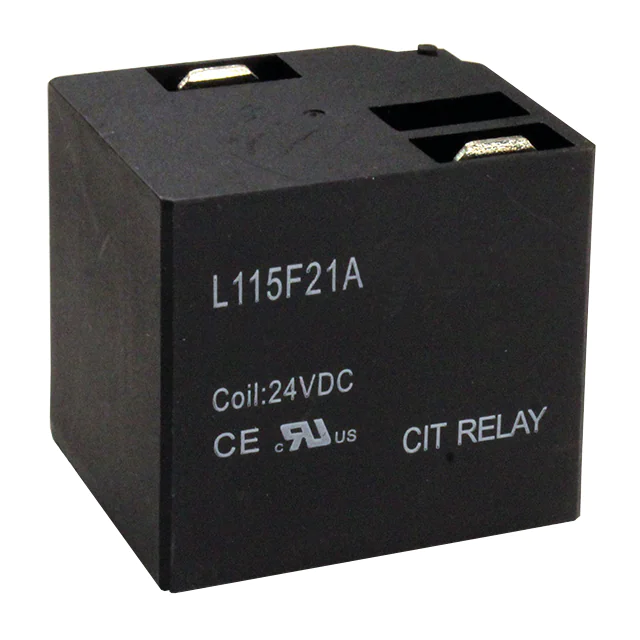

L115F21AH24VDCS1.5URELAY GEN PURPOSE SPST 50A 24V |
3960 | 4.17 |
Add To CartInquiry Now |
Tube | L115F2 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
Datasheet |
|
L115F11CK12VDCS.9URELAY GEN PURPOSE SPDT 40A 12V |
3368 | 4.18 |
Add To CartInquiry Now |
Tube | L115F1 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 75 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
Datasheet |
|
L115F11AH48VDCS1.5URELAY GEN PURPOSE SPST 50A 48V |
2959 | 4.18 |
Add To CartInquiry Now |
Tube | L115F1 | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 31.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 38.4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
Datasheet |
|
L115F11CK5VDCS.9URELAY GEN PURPOSE SPDT 40A 5V |
2689 | 4.18 |
Add To CartInquiry Now |
Tube | L115F1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 178.6 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
Datasheet |
|
T9AP1D52-48-03RELAY GEN PURPOSE SPST 30A 48V |
2571 | 4.19 |
Add To CartInquiry Now |
Bulk | T9A | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 21 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
J1511CF12VAC1.2DRELAY GEN PURPOSE SPDT 20A 12V |
2786 | 4.19 |
Add To CartInquiry Now |
Tray | J151 | Active | Chassis Mount | 12VAC | SPDT (1 Form C) | 20 A | 300VAC - Max | 260.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
J1512CF12VAC1.2DRELAY GEN PURPOSE DPDT 20A 12V |
2216 | 4.19 |
Add To CartInquiry Now |
Tray | J151 | Active | Chassis Mount | 12VAC | DPDT (2 Form C) | 20 A | 300VAC - Max | 260.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
| |
|
2-1415898-1RELAY GEN PURPOSE SPST 16A 48V |
3420 | 5.22 |
Add To CartInquiry Now |
Bulk,Box | RT1, Inrush, SCHRACK | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
T9AP1D52-22-01RELAY GEN PURPOSE SPST 30A 22V |
2723 | 4.20 |
Add To CartInquiry Now |
Bulk | T9A | Active | Chassis Mount | 22VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 45.5 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T9AP1D52-22-02RELAY GEN PURPOSE SPST 30A 22V |
2967 | 4.20 |
Add To CartInquiry Now |
Bulk | T9A | Active | Chassis Mount | 22VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 45.5 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T9AP1D52-24-01RELAY GEN PURPOSE SPST 30A 24V |
2667 | 4.20 |
Add To CartInquiry Now |
Bulk | T9A | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 41.7 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
J1522CF110VDCDRELAY GEN PURPOSE DPDT 10A 110V |
2433 | 4.20 |
Add To CartInquiry Now |
Tray | J152 | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 10 mA | Non Latching | Lighted Indicator | Plug In | - | - | 82.5 VDC | 11 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
