Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
CST-90-W57S-C13-GM200BIG CHIP LED HB MODULE WHITE |
3226 | 0.00 |
Add To CartInquiry Now |
Tray | CST-90 | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | - | 3.15A | 40°C | 3.25V | - | 13.5A | 70 (Typ) | 95° | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
CST-90-W57S-C13-GM201BIG CHIP LED HB MODULE WHITE |
3895 | 0.00 |
Add To CartInquiry Now |
Tray | CST-90 | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | - | 3.15A | 40°C | 3.25V | - | 13.5A | 70 (Typ) | 95° | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
SST-50-W57S-F21-GJ200BIG CHIP LED HB MODULE WHITE |
3795 | 0.00 |
Add To CartInquiry Now |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|
Datasheet |
|
CBT-90-B-C11-KK301BIG CHIP LED HB MODULE BLUE |
3290 | 0.00 |
Add To CartInquiry Now |
Tray | CBT-90 | Discontinued at Mosen | LED Module | Blue | - | 460nm | Rectangle | - | 13.5A | - | 3.4V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
SST-50-W57S-F21-GJ201BIG CHIP LED HB MODULE WHITE |
3067 | 0.00 |
Add To CartInquiry Now |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|
Datasheet |
|
SST-90-B-F11-KG301BIG CHIP LED HB MODULE BLUE |
3466 | 0.00 |
Add To CartInquiry Now |
Tray | SST-90 | Obsolete | Chip On Board (COB) | Blue | - | 465nm | Square | 180lm (Typ) | 3.15A | 25°C | 3.4V | 17 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
Datasheet |
|
SST-90-B-F11-KH300BIG CHIP LED HB MODULE BLUE |
2127 | 0.00 |
Add To CartInquiry Now |
Tray | SST-90 | Obsolete | Chip On Board (COB) | Blue | - | 465nm | Square | 180lm (Typ) | 3.15A | 25°C | 3.4V | 17 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
Datasheet |
|
SST-90-B-F11-KH301BIG CHIP LED HB MODULE BLUE |
2235 | 0.00 |
Add To CartInquiry Now |
Tray | SST-90 | Obsolete | Chip On Board (COB) | Blue | - | 465nm | Square | 180lm (Typ) | 3.15A | 25°C | 3.4V | 17 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
Datasheet |
|
SBR-90-W65S-R71-MA101BIG CHIP LED HB MODULE WHITE |
2797 | 0.00 |
Add To CartInquiry Now |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | 9A | 40°C | 3.5V | - | 9A | 70 (Typ) | - | - | 10.00mm L x 11.00mm W | 1.54mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
SBR-90-W65S-R71-MA102BIG CHIP LED HB MODULE WHITE |
3281 | 0.00 |
Add To CartInquiry Now |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | 9A | 40°C | 3.5V | - | 9A | 70 (Typ) | - | - | 10.00mm L x 11.00mm W | 1.54mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
CBT-90-B-C11-KM301BIG CHIP LED HB MODULE BLUE |
2011 | 0.00 |
Add To CartInquiry Now |
Tray | CBT-90 | Discontinued at Mosen | LED Module | Blue | - | 460nm | Rectangle | - | 13.5A | - | 3.4V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
SBR-90-W65S-R71-MB101BIG CHIP LED HB MODULE WHITE |
2214 | 0.00 |
Add To CartInquiry Now |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | 9A | 40°C | 3.5V | - | 9A | 70 (Typ) | - | - | 10.00mm L x 11.00mm W | 1.54mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
CSM-360-W45S-D22-GX400BIG CHIP LED HB MODULE WHITE |
3038 | 0.00 |
Add To CartInquiry Now |
Tray | CSM-360 | Obsolete | LED Module | White, Neutral | 4500K | - | Rectangle | - | 3.15A | 40°C | 13.14V | - | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
|
Datasheet |
|

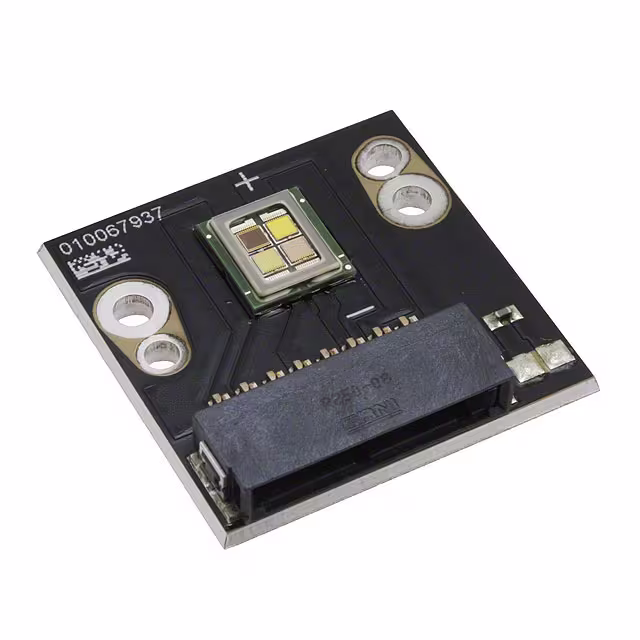

SBR-160-RGBW-H41-RE102BIG CHIP LED HB MODULE RGB, WHT |
2546 | 0.00 |
Add To CartInquiry Now |
Tray | SBR-160 | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 530nm Green, 458nm Blue | Square | 320lm (Typ) Red, 820lm (Typ) Green, 150lm (Typ) Blue, 730lm (Typ) White | 4A Red, 4A Green, 4A Blue, 4A White | 25°C | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White | 4A Red, 4A Green, 4A Blue, 4A White | - | - | With Connector | 36.00mm L x 36.00mm W | 8.72mm | - |
|
Datasheet |
|
CST-90-W45S-C13-GL400BIG CHIP LED HB MODULE WHITE |
3618 | 0.00 |
Add To CartInquiry Now |
Tray | CST-90 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 650lm (600lm ~ 700lm) | 3.15A | 25°C | 3.25V | 63 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia |
|
Datasheet |
|
CSM-360-W65S-D22-GU100BIG CHIP LED HB MODULE WHITE |
2449 | 0.00 |
Add To CartInquiry Now |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 2750lm (2500lm ~ 3000lm) | 3.15A | 40°C | 13.14V | 66 lm/W | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
|
Datasheet |
|
CSM-360-W65S-D22-GU101BIG CHIP LED HB MODULE WHITE |
3393 | 0.00 |
Add To CartInquiry Now |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 2750lm (2500lm ~ 3000lm) | 3.15A | 40°C | 13.14V | 66 lm/W | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
|
Datasheet |
|
CSM-360-W65S-D22-GU102BIG CHIP LED HB MODULE WHITE |
3617 | 0.00 |
Add To CartInquiry Now |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 2750lm (2500lm ~ 3000lm) | 3.15A | 40°C | 13.14V | 66 lm/W | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
|
Datasheet |
|
CBT-90-B-C11-KN301BIG CHIP LED HB MODULE BLUE |
3908 | 0.00 |
Add To CartInquiry Now |
Tray | CBT-90 | Obsolete | LED Module | Blue | - | 460nm | Rectangle | - | 13.5A | - | 3.4V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
Datasheet |
|
CSM-360-W65S-D22-GV101BIG CHIP LED HB MODULE WHITE |
2689 | 0.00 |
Add To CartInquiry Now |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 3300lm (3000lm ~ 3600lm) | 3.15A | 40°C | 13.14V | 80 lm/W | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
