Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
CXA2011-0000-000P00H00E5LED NTRL WHITE 4000K SCREW MOUNT |
3672 | 0.00 |
Add To CartInquiry Now |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 70 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
|
Datasheet |
|
CXA2011-0000-000P00H040HLED NTRL WHITE 4000K SCREW MOUNT |
3996 | 0.00 |
Add To CartInquiry Now |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 70 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
|
Datasheet |
|
CXA2011-0000-000P00H050HLED COOL WHITE 5000K SCREW MOUNT |
2965 | 0.00 |
Add To CartInquiry Now |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 70 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
|
Datasheet |
|
CXA2011-0000-000P00H00E6LED WARM WHITE 3500K SCREW MOUNT |
2835 | 0.00 |
Add To CartInquiry Now |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 77 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
|
Datasheet |
|
CXA2011-0000-000P00H00E3LED COOL WHITE 5000K SCREW MOUNT |
3281 | 0.00 |
Add To CartInquiry Now |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 70 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
|
Datasheet |
|
VLPC1201A2LED MOD COOL WHITE LIGHT STRIP |
3901 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | LED Module | White, Cool | 5000K ~ 7000K | - | Linear Light Strip | 1050lm (Typ) | 700mA | 25°C | 21V | 71 lm/W | 700mA | - | - | - | 240.00mm L x 10.50mm W | 4.50mm | - |
|
Datasheet |
|

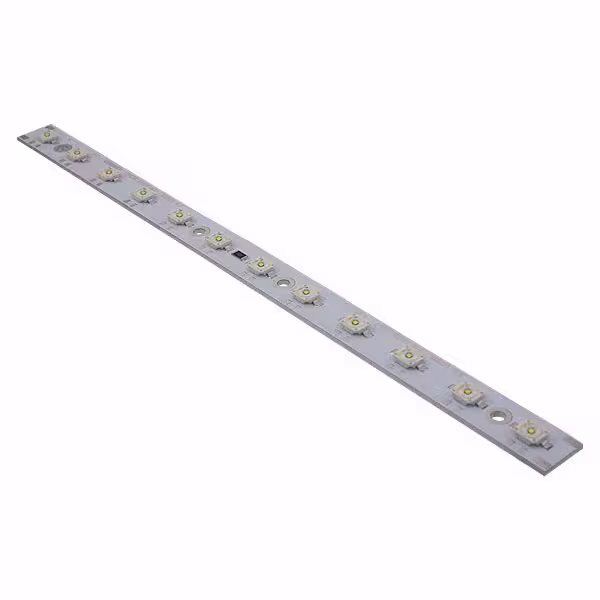

VLPC1201A2JLED MOD COOL WHITE LIGHT STRIP |
3660 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | LED Module | White, Cool | 5000K ~ 7000K | - | Linear Light Strip | 2100lm (Typ) | 700mA | 25°C | 75 V | 71 lm/W | 700mA | - | - | - | 240.00mm L x 10.50mm W | 4.50mm | - |
|
Datasheet |
|
VLPC0601A2LED MOD COOL WHITE LIGHT STRIP |
2599 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | LED Module | White, Cool | 5000K ~ 7000K | - | Linear Light Strip | 1050lm (Typ) | 700mA | 25°C | 21V | 71 lm/W | 700mA | - | - | - | 240.00mm L x 10.50mm W | 4.50mm | - |
|
Datasheet |
|
BXRB-27E0540-A-00LED ARRAY WARM WHITE 2700K 550LM |
2015 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 550lm (Typ) | 365mA | 25°C | 17.2V | 79 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-30E0540-A-00LED ARRAY WARM WHITE 3000K 600LM |
2279 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 600lm (Typ) | 365mA | 25°C | 17.2V | 86 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-30G0540-A-00LED ARRAY WARM WHITE 3000K 540LM |
3350 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 540lm (Typ) | 365mA | 25°C | 17.2V | 77 lm/W | 700mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-30E0740-A-00LED ARRAY WARM WHITE 3000K 820LM |
3910 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 820lm (Typ) | 350mA | 25°C | 25.7V | 82 lm/W | 400mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-27E0360-A-00LED ARRAY WARM WHITE 2725K 370LM |
3503 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 370lm (Typ) | 365mA | 25°C | 12.4V | 82 lm/W | 500mA | 80 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
|
Datasheet |
|
BXRB-30E0360-A-00LED ARRAY WARM WHITE 3045K 400LM |
3783 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 400lm (Typ) | 365mA | 25°C | 12.4V | 88 lm/W | 500mA | 80 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
|
Datasheet |
|
BXRB-30G0360-A-00LED ARRAY WARM WHITE 3045K 360LM |
2407 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 360lm (Typ) | 365mA | 25°C | 12.4V | 80 lm/W | 500mA | 90 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
|
Datasheet |
|
BXRB-30G0740-A-00LED ARRAY WARM WHITE 3000K 740LM |
2688 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 740lm (Typ) | 350mA | 25°C | 25.7V | 74 lm/W | 700mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-30E0360-B-00LED ARRAY WARM WHITE 3045K 400LM |
2216 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 400lm (Typ) | 730mA | 25°C | 6.2V | 88 lm/W | 1A | 80 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
|
Datasheet |
|
BXRB-56C0470-A-00LED ARRAY COOL WHITE 5665K 520LM |
3018 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 520lm (Typ) | 365mA | 25°C | 12.4V | 115 lm/W | 500mA | 70 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
|
Datasheet |
|
BXRB-27G0540-A-00LED WARM WHITE 2700K 500LM |
2443 | 0.00 |
Add To CartInquiry Now |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 500lm (Typ) | 365mA | 25°C | 17.2V | 72 lm/W | 700mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.20mm | 10.50mm Dia |
|
Datasheet |
|
BXRB-30G0360-B-00LED WARM WHITE 3000K 360LM |
3160 | 0.00 |
Add To CartInquiry Now |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 360lm (Typ) | 730mA | 25°C | 6.2V | 80 lm/W | 1A | 90 | 140° | - | 13.60mm L x 17.80mm W | 4.60mm | 8.00mm Dia |
