Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
CXA2540-0000-000N0HW40E1LED COB CXA2540 COOL WHT SQUARE |
2544 | 7.55 |
Add To CartInquiry Now |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 37V | 133 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datasheet |
|
CXA2540-0000-000N0HW40E2LED COB CXA2540 COOL WHT SQUARE |
2455 | 7.55 |
Add To CartInquiry Now |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 37V | 133 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datasheet |
|
CXA2540-0000-000N0HW40E3LED COB CXA2540 COOL WHT SQUARE |
2639 | 7.55 |
Add To CartInquiry Now |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 37V | 133 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datasheet |
|
CXB1816-0000-000N0HR257ELED COB CXB1816 COOL WHT SQUARE |
3833 | 7.57 |
Add To CartInquiry Now |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 450mA | 85°C | 35V | 159 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datasheet |
|
CXB1816-0000-000N0HR265ELED COB CXB1816 COOL WHT SQUARE |
3248 | 7.57 |
Add To CartInquiry Now |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 450mA | 85°C | 35V | 159 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datasheet |
|

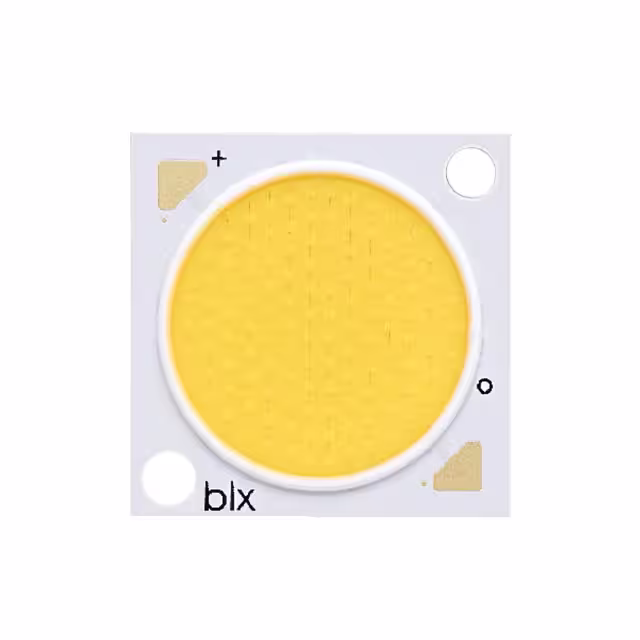

BXRE-27H4000-B-72V18B WARM WHITE LED ARRAY |
2740 | 7.57 |
Add To CartInquiry Now |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3048lm (Typ) | 900mA | 85°C | 34V | 100 lm/W | 1.8A | 97 (Typ) | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
Datasheet |
|
BXRE-30H4000-B-72V18B WARM WHITE LED ARRAY |
3956 | 7.57 |
Add To CartInquiry Now |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3245lm (Typ) | 900mA | 85°C | 34V | 106 lm/W | 1.8A | 97 (Typ) | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
Datasheet |
|
SPHWHAHDNL231ZR3D2LED WHITE COB LC060D |
3560 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9668lm (Typ) | 1.08A | 85°C | 52V | 172 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL231ZT3D2LED WHITE COB LC060D |
3932 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9521lm (Typ) | 1.08A | 85°C | 52V | 170 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL231ZV3D2LED WHITE COB LC060D |
2982 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9225lm (Typ) | 1.08A | 85°C | 52V | 164 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZP3D2LED WHITE COB LC060D |
3113 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 8990lm (Typ) | 1.08A | 85°C | 52V | 160 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZQ3D2LED WHITE COB LC060D |
2619 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 9084lm (Typ) | 1.08A | 85°C | 52V | 162 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZR3D2LED WHITE COB LC060D |
3754 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9039lm (Typ) | 1.08A | 85°C | 52V | 161 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZT3D2LED WHITE COB LC060D |
2914 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8995lm (Typ) | 1.08A | 85°C | 52V | 160 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZU3D2LED WHITE COB LC060D |
3309 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8812lm (Typ) | 1.08A | 85°C | 52V | 157 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZV3D2LED WHITE COB LC060D |
3801 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8542lm (Typ) | 1.08A | 85°C | 52V | 152 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL251ZW3D2LED WHITE COB LC060D |
3080 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8107lm (Typ) | 1.08A | 85°C | 52V | 144 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL271ZR3D2LED COB LC060D 5000K SQUARE |
3995 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7793lm (Typ) | 1.08A | 85°C | 52V | 139 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL271ZT3D2LED COB LC060D 4000K SQUARE |
2737 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7706lm (Typ) | 1.08A | 85°C | 52V | 137 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
Datasheet |
|
SPHWHAHDNL271ZU3D2LED COB LC060D 3500K SQUARE |
3698 | 7.60 |
Add To CartInquiry Now |
Tray | LC060D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7539lm (Typ) | 1.08A | 85°C | 52V | 134 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
