Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
899825252198 EFD CORE SET |
576 | 1.22 |
Add To CartInquiry Now |
Bulk | - | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 104 | 58.8 | 58 | 55 | 3320 | Uncoated | 0.492 (12.50mm) |
|
Datasheet |
|

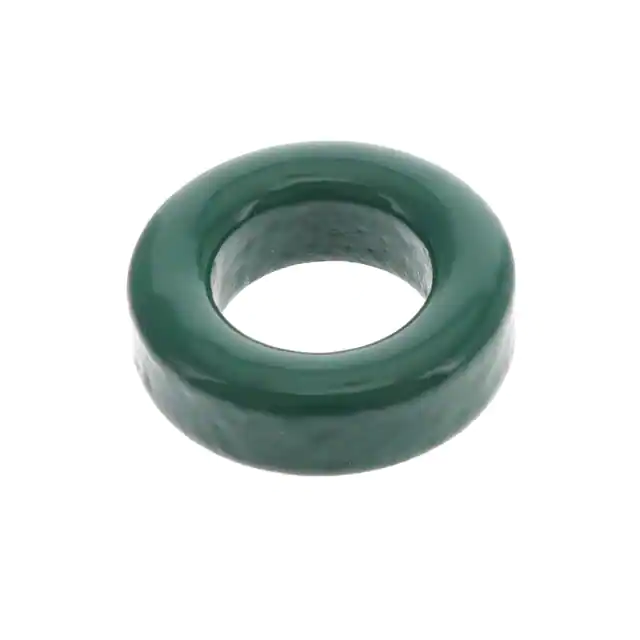

597500512175 TOROID PLASTIC COATED |
128 | 1.23 |
Add To CartInquiry Now |
Bulk | - | Active | Toroid | - | 75 | 0.665 (16.90mm) | 2.35 µH | -25%, +20% | Ungapped | - | 5000 | 2.6 | 38.5 | 14.5 | - | 560 | Plastic | 0.207 (5.25mm) |
|
Datasheet |
|
597700050177 TOROID |
509 | 1.49 |
Add To CartInquiry Now |
Bulk | - | Active | Toroid | - | 77 | 0.825 (20.96mm) | - | ±25% | Ungapped | - | 2000 | - | 52 | 46 | - | 2360 | Uncoated | 0.468 (11.89mm) |
|
Datasheet |
|
629523012195 RM CORE SET |
334 | 1.51 |
Add To CartInquiry Now |
Bulk | - | Active | RM | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 67 | 40.3 | 60 | 55.4 | 2419 | Uncoated | 0.323 (8.20mm) |
|
Datasheet |
|
927700200277 U CORE |
576 | 1.57 |
Add To CartInquiry Now |
Box | - | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 139 | 95 | 68 | - | 6500 | Uncoated | - |
|
Datasheet |
|

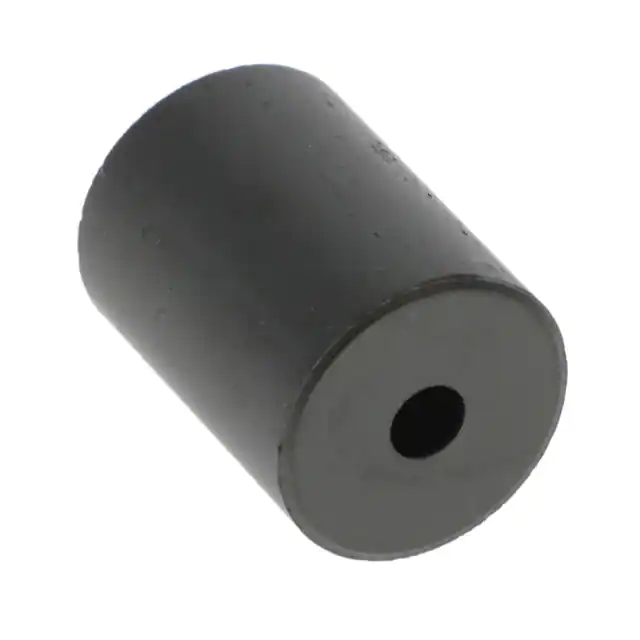

427724240977 SLEEVE |
2494 | 1.53 |
Add To CartInquiry Now |
Bulk | - | Active | ROD | - | 77 | 0.512 (13.00mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - |
|
Datasheet |
|
B65525J0000R608ER11/5-PC200 |
3409 | 1.55 |
Add To CartInquiry Now |
Bulk | EER11/5/6 | Active | ER | ER 11 x 5 | PC200 | - | - | -20%, +30% | Ungapped | 580 | 800 | 1.1 | 14.1 | 12.4 | 10.3 | 174 | Uncoated | 0.197 (5.00mm) |
|
Datasheet |
|
EFD30/15/9-3F36FERRITE CORE |
3563 | 1.55 |
Add To CartInquiry Now |
Bulk | - | Active | EFD | EFD 30 x 15 x 9 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591 (15.00mm) |
|
Datasheet |
|
B66229G0000X127FERRITE CORE E N27 1PC |
3588 | 1.56 |
Add To CartInquiry Now |
Box | E32/16/9 | Active | E | E 32 x 16 x 9 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.646 (16.40mm) |
|
Datasheet |
|
B65843A0000R030FERRITE CORE EP 2.8UH N30 2PCS |
3252 | 1.57 |
Add To CartInquiry Now |
Box | EP13 | Active | EP | EP 13 | N30 | - | 2.8 µH | -20%, +30% | Ungapped | 2765 | 4300 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
Datasheet |
|
B66453G0000X187FERRITE CORE ELP N87 1PC |
3494 | 1.66 |
Add To CartInquiry Now |
Box | ELP18/4/10 | Active | ELP | ELP 18 x 4 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157 (4.00mm) |
|
Datasheet |
|
B66455G0000X187FERRITE CORE ELP N87 1PC |
3717 | 1.67 |
Add To CartInquiry Now |
Box | ELP22/6/16 | Active | ELP | ELP 22 x 6 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224 (5.70mm) |
|
Datasheet |
|
B66453K0000X187FERRITE CORE I N87 |
2100 | 1.72 |
Add To CartInquiry Now |
Tray | I18/2/10 | Active | I | I 18 x 2 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079 (2.00mm) |
|
Datasheet |
|
TX25/15/10-3C90FERRITE CORES ROUND |
3350 | 1.73 |
Add To CartInquiry Now |
Bulk | - | Active | Toroid | TX 25 x 15 x 10 | 3C90 | 1.007 (25.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.429 (10.90mm) |
|
Datasheet |
|
TX25/15/10-3C94FERRITE CORES ROUND |
2448 | 1.73 |
Add To CartInquiry Now |
Bulk | - | Active | Toroid | TX 25 x 15 x 10 | 3C94 | 1.007 (25.95mm) | - | ±25% | Ungapped | 2300 | - | 1.23 | 60.2 | 48.9 | - | 2944 | Epoxy | 0.429 (10.90mm) |
|
Datasheet |
|

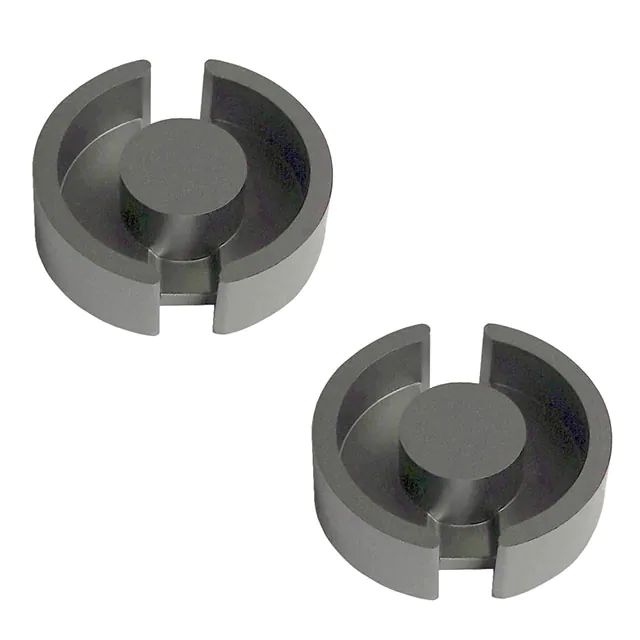

P18/11/I-3C91FERRITE CORE 2PC SET |
2192 | 1.76 |
Add To CartInquiry Now |
Bulk | - | Active | P (Pot Core) | P 18 x 11 | 3C91 | 0.701 (17.90mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.417 (10.60mm) |
|
Datasheet |
|
B66480G0000X192FERRITE CORE ER N92 1PC |
3614 | 1.76 |
Add To CartInquiry Now |
Box | ER18/3/10 | Active | ER | ER 18 x 3 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124 (3.15mm) |
|
Datasheet |
|
286700680267 MULTI-APERTURE CORE |
3495 | 1.78 |
Add To CartInquiry Now |
Tray | - | Active | Multi-Hole (2) | - | 67 | - | 180 nH | - | Ungapped | - | 40 | - | - | - | - | - | Uncoated | 1.062 (26.97mm) |
|
Datasheet |
|

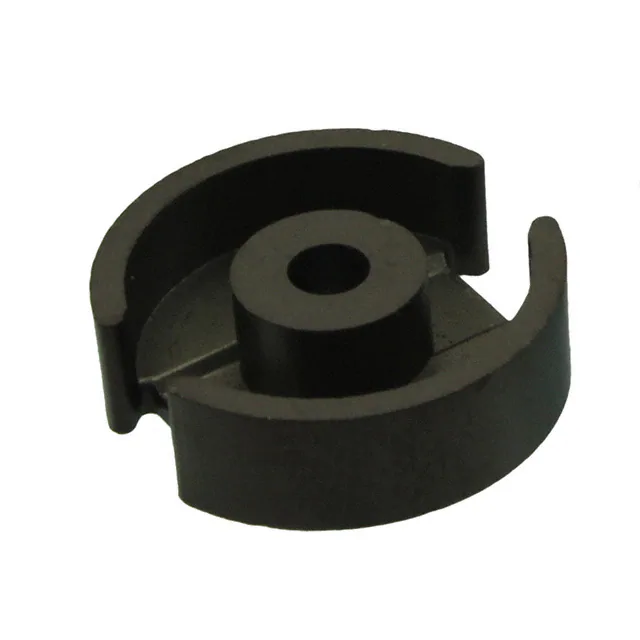

569518122195 POT CORE SET |
2634 | 1.79 |
Add To CartInquiry Now |
Tray | - | Active | P (Pot Core) | - | 95 | 0.030 (0.76mm) | - | ±25% | Ungapped | - | 3000 | 60 | 25.9 | 43 | 36 | 1120 | Uncoated | 0.211 (5.36mm) |
|
Datasheet |
|

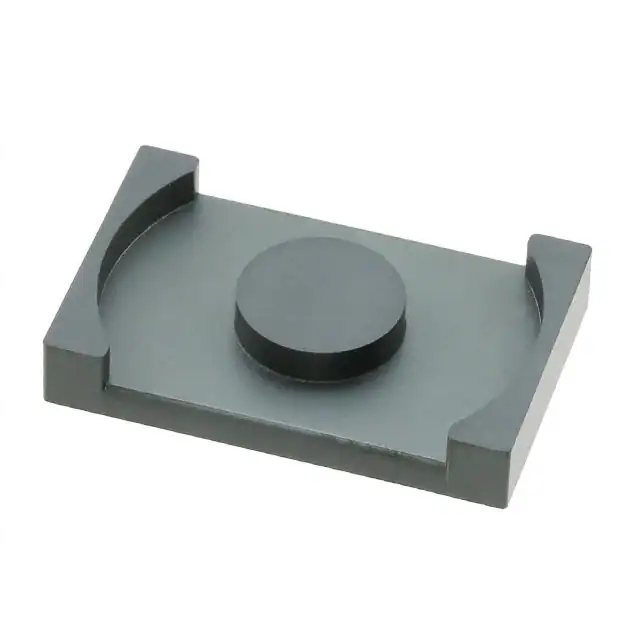

B66479G0000X192FERRITE CORE EQ N92 1PC |
2684 | 1.81 |
Add To CartInquiry Now |
Box | EQ13/9/3 | Active | EQ | EQ 13 x 3 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.112 (2.85mm) |
