Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
VS-MUR1520-M3DIODE FRED 200V 15A TO220AB |
3239 | 1.09 |
Add To CartInquiry Now |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Through Hole | - | 35 ns | 10 µA @ 200 V | 200 V | 15A | -65°C ~ 175°C | 1.05 V @ 15 A |
|
Datasheet |
|
SK510AFL-TPDIODE SCHOTTKY 100V 5A DO221AC |
32365 | 0.48 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 4V, 1MHz | - | 200 µA @ 100 V | 100 V | 5A | -55°C ~ 125°C | 850 mV @ 5 A | |
|
Datasheet |
|
M2DIODE STD SMA 100V 1A |
7500 | 0.01 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
BYW80-200GDIODE GEN PURP 200V 8A TO220-2 |
1270 | 1.14 |
Add To CartInquiry Now |
Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 200 V | 200 V | 8A | -65°C ~ 175°C | 1.25 V @ 22 A |
|
Datasheet |
|
1N5822-TPDIODE SCHOTTKY 40V 3A DO201AD |
11791 | 0.48 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 200pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 525 mV @ 3 A | |
|
Datasheet |
|
M3DIODE STD SMA 200V 1A |
7500 | 0.01 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
.jpg)
|
HSM560JE3/TR13DIODE SCHOTTKY 60V 5A DO214AB |
16131 | 1.30 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 60 V | 60 V | 5A | -55°C ~ 175°C | 650 mV @ 5 A | |
|
Datasheet |
|
M1DIODE STD SMA 50V 1A |
7500 | 0.01 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
19TQ015CJDIODE SCHOTTKY 15V TO220AC |
9115 | 1.33 |
Add To CartInquiry Now |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 2500pF @ 5V, 1MHz | - | 10.5 mA @ 15 V | 15 V | - | -55°C ~ 100°C | 360 mV @ 19 A | |
|
Datasheet |
|
M5DIODE STD SMA 600V 1A |
7500 | 0.01 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
VFT2045BP-M3/4WDIODE SCHOTTKY 45V 20A ITO220AC |
2807 | 1.34 |
Add To CartInquiry Now |
Tube | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 2 mA @ 45 V | 45 V | 20A (DC) | 200°C (Max) | 660 mV @ 20 A |
|
Datasheet |
|
M7LDIODE STD SMA 1000V 1A |
7500 | 0.02 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
FFPF30UA60SDIODE GEN PURP 600V 30A TO220-2 |
1332 | 1.37 |
Add To CartInquiry Now |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | 100 µA @ 600 V | 600 V | 30A | -65°C ~ 150°C | 2.2 V @ 30 A | |
|
Datasheet |
|

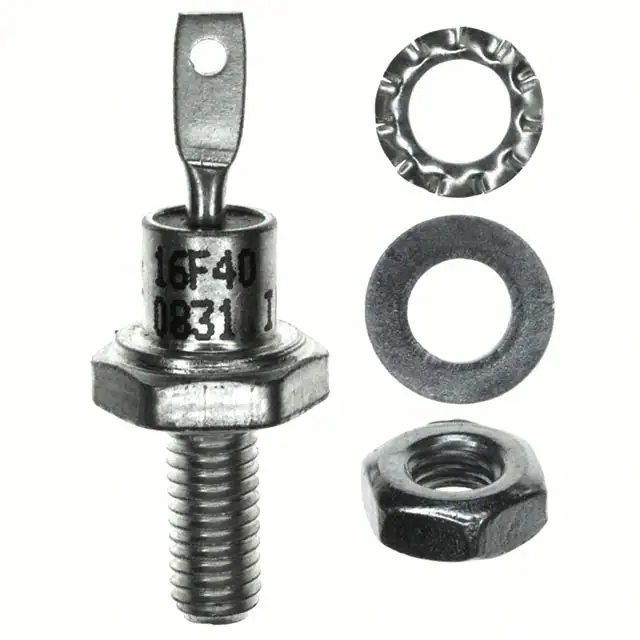

VS-16F40DIODE GEN PURP 400V 16A DO203AA |
128 | 5.58 |
Add To CartInquiry Now |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 400 V | 400 V | 16A | -65°C ~ 175°C | 1.23 V @ 50 A | |
|
Datasheet |
|
M6DIODE STD SMA 800V 1A |
7500 | 0.02 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
STPS20SM60DDIODE SCHOTTKY 60V 20A TO220AC |
11264 | 1.43 |
Add To CartInquiry Now |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 85 µA @ 60 V | 60 V | 20A | 150°C (Max) | 630 mV @ 20 A | |
|
Datasheet |
|
STTH6010WDIODE GEN PURP 1KV 60A DO247 |
653 | 5.59 |
Add To CartInquiry Now |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 115 ns | 20 µA @ 1000 V | 1000 V | 60A | 175°C (Max) | 2 V @ 60 A | |
|
Datasheet |
|
M7DIODE STD SMA 1000V 1A |
10118000 | 0.02 |
Add To CartInquiry Now |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
Datasheet |
|
1N647-1DIODE GEN PURP 400V 400MA DO35 |
4510 | 1.47 |
Add To CartInquiry Now |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 400 V | 400 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | |
|
Datasheet |
|
1N5617USDIODE GEN PURP 400V 1A D5A |
269 | 5.78 |
Add To CartInquiry Now |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 12V, 1MHz | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
