Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

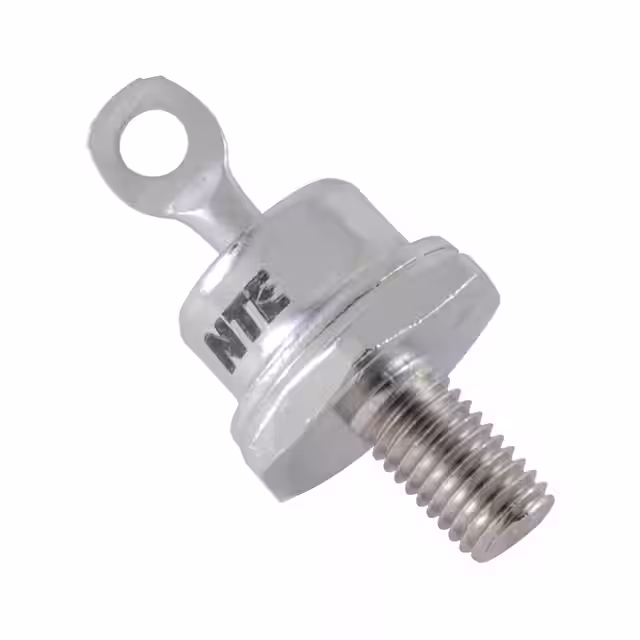

NTE6047R-1KV PRV 85A FAST REC AK |
2460 | 35.49 |
Add To CartInquiry Now |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 1 µs | 100 µA @ 1000 V | 1000 V | 85A | -40°C ~ 125°C | 1.75 V @ 267 A | |
|
Datasheet |
|
SCS304AMCDIODES SILICON CARBIDE |
573 | 1.76 |
Add To CartInquiry Now |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 200pF @ 1V, 1MHz | 0 ns | 20 µA @ 650 V | 650 V | 4A (DC) | 175°C (Max) | 1.5 V @ 4 A | |
|
Datasheet |
|
HS5A V7GDIODE GEN PURP 50V 5A DO214AB |
1321 | 1.48 |
Add To CartInquiry Now |
Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 80pF @ 4V, 1MHz | 50 ns | 10 µA @ 50 V | 50 V | 5A | -55°C ~ 150°C | 1 V @ 5 A | |
|
Datasheet |
|
CDBC5150-HFDIODE SCHOTTKY 150V 5A DO214AB |
193 | 0.75 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 380pF @ 4V, 1MHz | - | 500 µA @ 150 V | 150 V | 5A (DC) | -50°C ~ 175°C | 870 mV @ 5 A | |
|
Datasheet |
|
LSIC2SD065D10ADIODE SCHOTTKY SIC 650V 10A |
830 | 6.34 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, GEN2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 470pF @ 1V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 27A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
Datasheet |
|

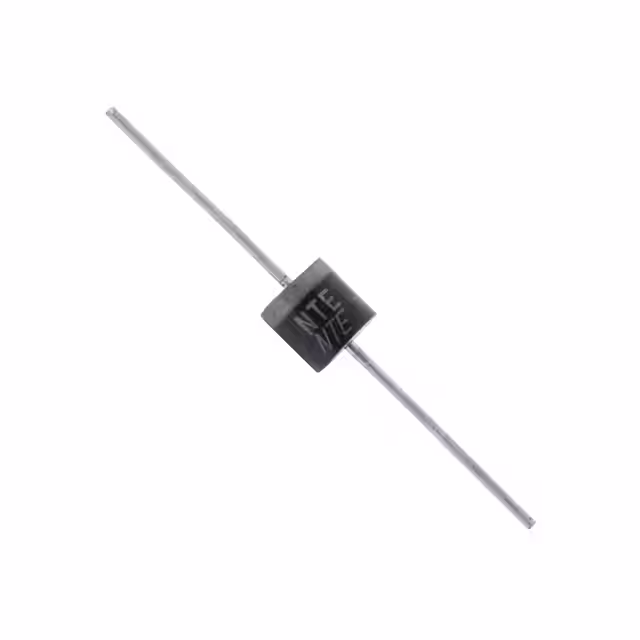

GI758R- 800 PRV 6A |
3276 | 1.36 |
Add To CartInquiry Now |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 800 V | 800 V | 6A | -65°C ~ 175°C | 950 mV @ 6 A | |
|
Datasheet |
|
NTE6046R-1KV PRV 85A FAST REC.KK |
2398 | 35.49 |
Add To CartInquiry Now |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 1 µs | 100 µA @ 1000 V | 1000 V | 85A | -40°C ~ 125°C | 1.75 V @ 267 A | |
|
Datasheet |
|
VS-15ETX06FP-N3DIODE GEN PURP 600V 15A TO220FP |
547 | 1.77 |
Add To CartInquiry Now |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 22 ns | 50 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 3.2 V @ 15 A |
|
Datasheet |
|
HS5M V7GDIODE GEN PURP 1KV 5A DO214AB |
1130 | 1.48 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 50pF @ 4V, 1MHz | 75 ns | 10 µA @ 1000 V | 1000 V | 5A | -55°C ~ 150°C | 1.7 V @ 5 A | |
|
Datasheet |
|
MBR10100ULPS-TPDIODE SCHOTTKY 100V 10A TO277B |
3364 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 10A | -55°C ~ 175°C | 700 mV @ 10 A | |
|
Datasheet |
|
S3D20065GTRDIODE SCHOTTKY SILICON CARBIDE S |
790 | 6.39 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1450pF @ 0V, 1MHz | - | 30 µA @ 650 V | 650 V | 20A | -55°C ~ 175°C | 1.7 V @ 20 A | |
| |
|
VS-E5TX0812-M38A, 1200V, "X" SERIES FRED PT IN |
1000 | 1.39 |
Add To CartInquiry Now |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 87 ns | 50 µA @ 1200 V | 1200 V | 8A | -55°C ~ 175°C | 3.4 V @ 8 A |
|
Datasheet |
.jpg)
|
122NQ030R-1DIODE SCHOTTKY 30V 120A PRM1-1 |
3681 | 36.47 |
Add To CartInquiry Now |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 7400pF @ 5V, 1MHz | - | 10 mA @ 30 V | 30 V | 120A | -55°C ~ 150°C | 490 mV @ 120 A | |
|
Datasheet |
|
VS-ETX3007THN3DIODE GEN PURP 650V 30A TO220AC |
983 | 1.78 |
Add To CartInquiry Now |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 30 µA @ 650 V | 650 V | 30A | -55°C ~ 175°C | 2.5 V @ 30 A |
|
Datasheet |
|
FMG-G2CSDIODE GEN PURP 1KV 3A TO220F |
1315 | 1.53 |
Add To CartInquiry Now |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 100 ns | 50 µA @ 1000 V | 1000 V | 3A | -40°C ~ 150°C | 4 V @ 3 A | |
|
Datasheet |
|
VS-4EVH02HM3/IDIODE GEN PURPOSE 200V SLIMDPAK |
125 | 0.75 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 3 µA @ 200 V | 200 V | 4A | -55°C ~ 175°C | 1 V @ 4 A |
|
Datasheet |
|
DUR6060WDIODE GEN PURP 600V 60A TO247AC |
314 | 6.46 |
Add To CartInquiry Now |
Tube | DUR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 100 µA @ 600 V | 600 V | 60A | -55°C ~ 150°C | 2 V @ 60 A |
|
Datasheet |
|
S3D06065GTRDIODE SCHOTTKY SILICON CARBIDE S |
800 | 2.41 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 382pF @ 0V, 1MHz | 0 ns | 8 µA @ 650 V | 650 V | 6A | -55°C ~ 175°C | 1.7 V @ 6 A | |
| |
|

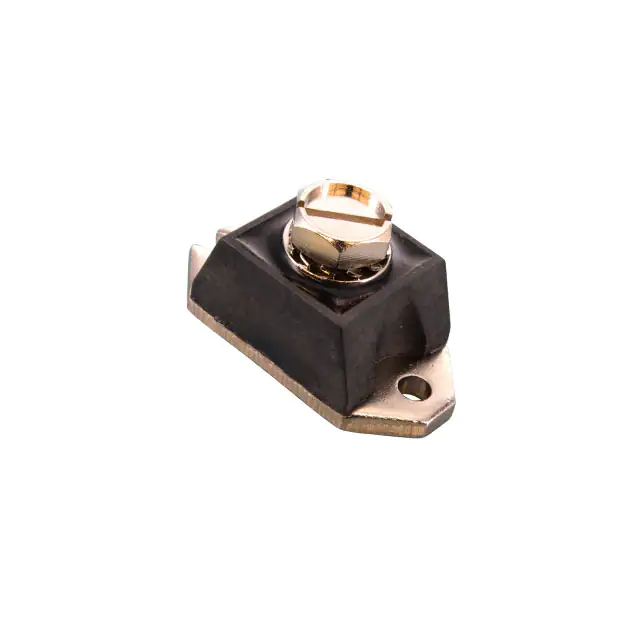

185NQ015R-1180A, 15V, PRM1-1, POWER MODULES |
3606 | 39.46 |
Add To CartInquiry Now |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 10000pF @ 5V, 1MHz | - | 60 mA @ 15 V | 15 V | 180A | -55°C ~ 125°C | 400 mV @ 180 A | |
|
Datasheet |
|
V30120SG-E3/4WDIODE SCHOTTKY 120V 30A TO220AB |
884 | 1.78 |
Add To CartInquiry Now |
Tube | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 120 V | 120 V | 30A | -40°C ~ 150°C | 1.28 V @ 30 A |
