Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | FrequencyRange | Type | CurrentRating(Amps) | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | CurrentRatio | DCResistance(DCR) | Ratings | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
CTG160CORE BALANCE TRANSFORM 0160MM |
3224 | 370.00 |
Add To CartInquiry Now |
Box | CTG | Active | - | - | - | - | - | - | - | - | - | Surface Mount | - | - |
|
Datasheet |
|
CTG210CORE BALANCE TRANSFORM 210MM |
2368 | 584.00 |
Add To CartInquiry Now |
Box | CTG | Active | - | - | - | - | - | - | - | - | - | Surface Mount | - | - |
|
Datasheet |
|
PA1005.050QNLCURR SENSE XFMR 1:50 20A SMD |
2513 | 0.00 |
Add To CartInquiry Now |
Tray | - | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | AEC-Q200 | Surface Mount | 0.284 L x 0.330 W (7.21mm x 8.38mm) | 0.217 (5.50mm) |
|
Datasheet |
|
7201SENSOR CURRENT 10A UNI TH |
2170 | 0.00 |
Add To CartInquiry Now |
Bulk | 7200 | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748 L x 0.433 W (19.00mm x 11.00mm) | 0.791 (20.10mm) |
|
Datasheet |
|
7202SENSOR CURRENT 20A UNI TH |
3746 | 0.00 |
Add To CartInquiry Now |
Bulk | 7200 | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748 L x 0.433 W (19.00mm x 11.00mm) | 0.791 (20.10mm) |
|
Datasheet |
|
7203SENSOR CURRENT 35A UNI TH |
2220 | 0.00 |
Add To CartInquiry Now |
Bulk | 7200 | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748 L x 0.433 W (19.00mm x 11.00mm) | 0.791 (20.10mm) |
|
Datasheet |
|

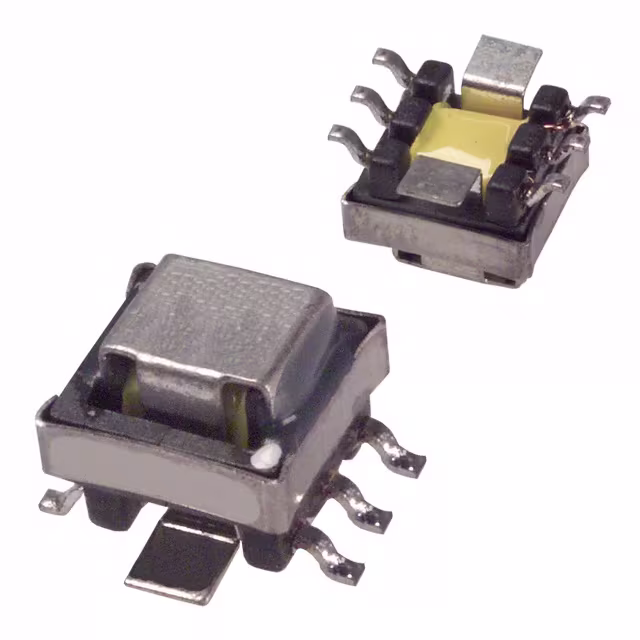

TCS-01CURR SENSE XFMR 1:20 SMD |
3860 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 80 µH | - | 1:20 | - | 6mOhm Primary, 550mOhm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-02CURR SENSE XFMR 1:30 SMD |
2639 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 180 µH | - | 1:30 | - | 6mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-03CURR SENSE XFMR 1:40 SMD |
3616 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 320 µH | - | 1:40 | - | 6mOhm Primary, 1.14Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-04CURR SENSE XFMR 1:50 SMD |
2164 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 500 µH | - | 1:50 | - | 6mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-05CURR SENSE XFMR 1:60 SMD |
3972 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 720 µH | - | 1:60 | - | 6mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-06CURR SENSE XFMR 1:70 SMD |
3369 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 980 µH | - | 1:70 | - | 6mOhm Primary, 4.75Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-07CURR SENSE XFMR 1:100 SMD |
2927 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.9Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
TCS-08CURR SENSE XFMR 1:125 SMD |
2527 | 0.00 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT) | TCS | Obsolete | 250kHz Min | Invasive | - | 3 mH | - | 1:125 | - | 6mOhm Primary, 7.7Ohm Secondary | - | Surface Mount | 0.276 L x 0.331 W (7.00mm x 8.40mm) | 0.205 (5.20mm) |
|
Datasheet |
|
CS-1050-RCURR SENSE XFMR 10A T/H |
3856 | 0.00 |
Add To CartInquiry Now |
Bulk | CS | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 10 A | 5.6 mH | - | - | 50:1 | 600mOhm | - | Through Hole | 0.675 L x 0.375 W (17.15mm x 9.53mm) | 0.800 (20.32mm) |
|
Datasheet |
|
CS-1100-RCURR SENSE XFMR 20A T/H |
3699 | 0.00 |
Add To CartInquiry Now |
Bulk | CS | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 22.4 mH | - | - | 100:1 | 1.3Ohm | - | Through Hole | 0.675 L x 0.375 W (17.15mm x 9.53mm) | 0.800 (20.32mm) |
|
Datasheet |
|
CS-1200-RCURR SENSE XFMR 40A T/H |
2925 | 0.00 |
Add To CartInquiry Now |
Bulk | CS | Obsolete | 20kHz ~ 100kHz | Non-Invasive (Solid Core) | 40 A | 89.7 mH | - | - | 200:1 | 3.3Ohm | - | Through Hole | 0.675 L x 0.375 W (17.15mm x 9.53mm) | 0.800 (20.32mm) |
| |
|
PA1440NLCURR SENSE XFMR SMD |
3529 | 0.00 |
Add To CartInquiry Now |
Bag | - | Obsolete | - | - | - | - | - | - | - | - | - | Surface Mount | - | - |
| |
|

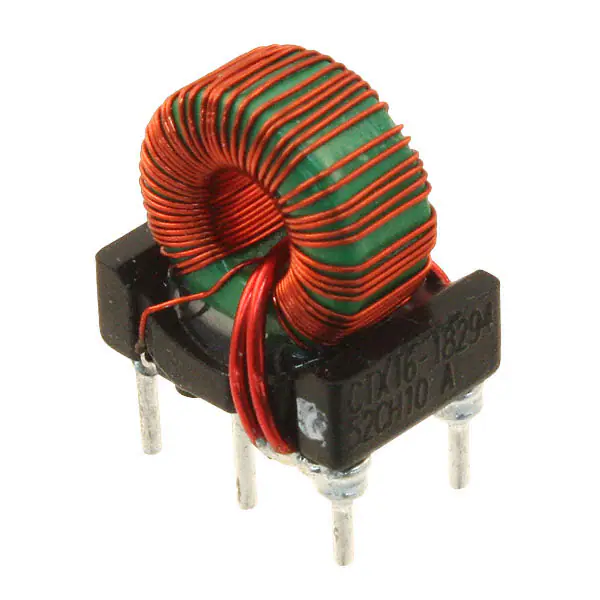

CTX16-18294-RCURR SENSE XFMR T/H |
2871 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | - | - | - | 8.25 mH | - | - | - | - | - | Through Hole | - | - |
|
Datasheet |
|
55050CCURR SENSE XFMR 1:1:50 15A SMD |
3769 | 0.00 |
Add To CartInquiry Now |
Tube | 5500 | Obsolete | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.496 L x 0.575 W (12.60mm x 14.60mm) | 0.280 (7.10mm) |
