Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
USR1E470MDD1TECAP ALUM 47UF 20% 25V RADIAL |
3026 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 106.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
USR1V470MDD1TDCAP ALUM 47UF 20% 35V RADIAL |
3351 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 127.5 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
UST1A220MDD1TECAP ALUM 22UF 20% 10V RADIAL |
3679 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
UST1H010MDD1TECAP ALUM 1UF 20% 50V RADIAL |
2343 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 15 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|

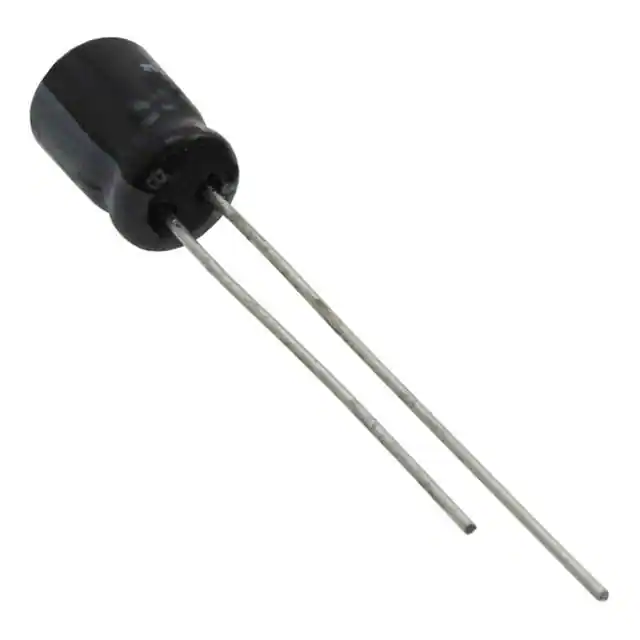

UST1V100MDD1TECAP ALUM 10UF 20% 35V RADIAL |
2675 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
USV1C100MFD1TPCAP ALUM 10UF 20% 16V RADIAL |
2346 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 10 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 43.5 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
USV1E100MFD1TPCAP ALUM 10UF 20% 25V RADIAL |
3708 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 10 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
USV1V220MFD1TECAP ALUM 22UF 20% 35V RADIAL |
3500 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 22 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
USV1V4R7MFD1TPCAP ALUM 4.7UF 20% 35V RADIAL |
2375 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 4.7 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 36 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
Datasheet |
|
UUG1A103MNQ6ZDCAP ALUM 10000UF 20% 10V SMD |
3374 | 0.00 |
Add To CartInquiry Now |
Tray | UUG | Obsolete | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUG2G470MNQ6ZDCAP ALUM 47UF 20% 400V SMD |
3746 | 0.00 |
Add To CartInquiry Now |
Tray | UUG | Obsolete | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 688 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ0J682MNQ6ZDCAP ALUM 6800UF 20% 6.3V SMD |
2609 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ1A682MNQ6ZDCAP ALUM 6800UF 20% 10V SMD |
3809 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.6675 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ1V222MNQ6ZDCAP ALUM 2200UF 20% 35V SMD |
3214 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 2200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.3225 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ2A331MNQ6ZDCAP ALUM 330UF 20% 100V SMD |
2645 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 330 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 575 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ2D101MNQ6ZDCAP ALUM 100UF 20% 200V SMD |
3582 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 100 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 656 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ2E680MNQ6ZDCAP ALUM 68UF 20% 250V SMD |
3977 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 68 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 340 mA @ 120 Hz | 544 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
UUJ2G330MNQ6ZDCAP ALUM 33UF 20% 400V SMD |
3138 | 0.00 |
Add To CartInquiry Now |
Tray | UUJ | Obsolete | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 256 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
Datasheet |
|
TVX1J220MAD1LSCAP ALUM 22UF 20% 63V AXIAL |
3758 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | TVX | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | - | 0.248 Dia x 0.472 L (6.30mm x 12.00mm) | - | - | Through Hole |
|
Datasheet |
|

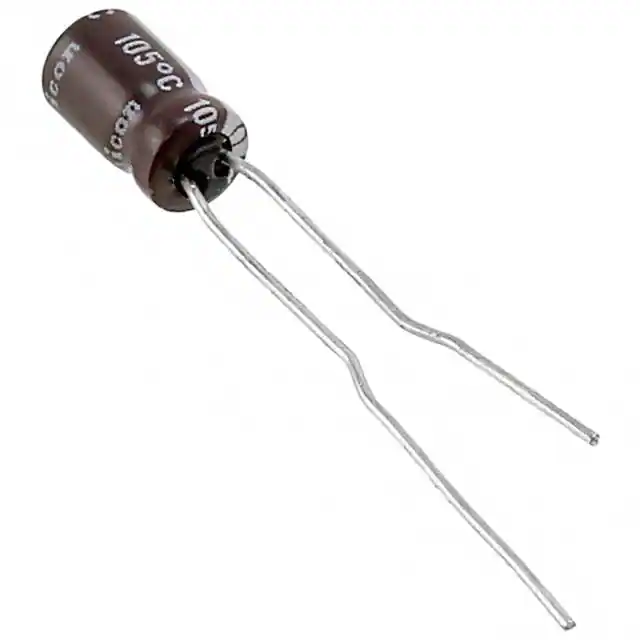

UPW0J680MDD1TACAP ALUM 68UF 20% 6.3V RADIAL |
3376 | 0.00 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPW | Obsolete | 68 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 78 mA @ 120 Hz | 120 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.492 (12.50mm) | - | Through Hole |
