Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

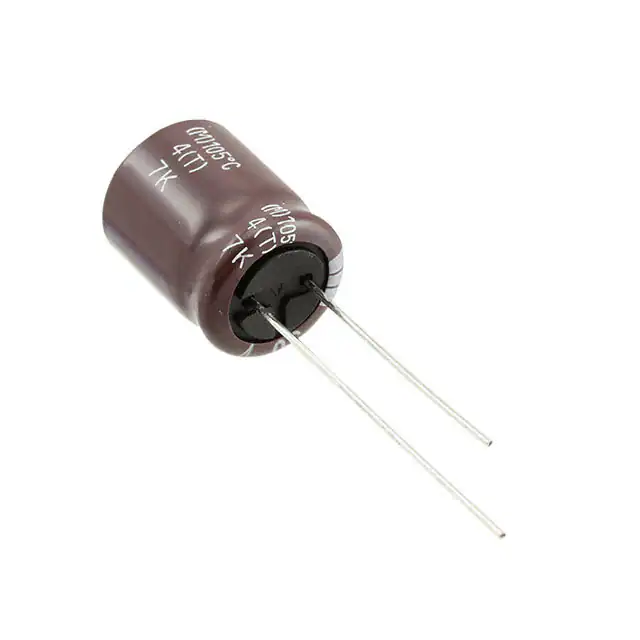

EKZN800ELL181MK16SCAP ALUM 180UF 20% 80V RADIAL |
2371 | 1.31 |
Add To CartInquiry Now |
Bulk | KZN | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 572 mA @ 120 Hz | 1.43 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
UHV1C222MHDCAP ALUM 2200UF 20% 16V RADIAL |
2344 | 1.31 |
Add To CartInquiry Now |
Bulk | UHV | Not For New Designs | 2200 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 2.725 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-FR1J271CAP ALUM 270UF 20% 63V RADIAL |
3949 | 1.31 |
Add To CartInquiry Now |
Bulk | FR-A | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.107 A @ 120 Hz | 1.582 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-FR1J331CAP ALUM 330UF 20% 63V RADIAL |
2716 | 1.31 |
Add To CartInquiry Now |
Bulk | FR-A | Active | 330 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.107 A @ 120 Hz | 1.582 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EKZN630ELL271MK16SCAP ALUM 270UF 20% 63V RADIAL |
3730 | 1.31 |
Add To CartInquiry Now |
Bulk | KZN | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 785 mA @ 120 Hz | 1.57 A @ 100 kHz | 58 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|

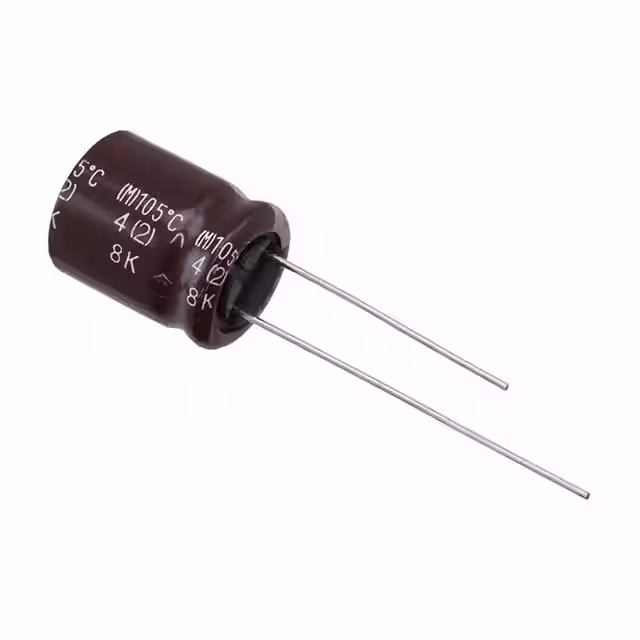

EKZN101ELL121MK16SCAP ALUM 120UF 20% 100V RADIAL |
2502 | 1.31 |
Add To CartInquiry Now |
Bulk | KZN | Active | 120 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 572 mA @ 120 Hz | 1.43 A @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|

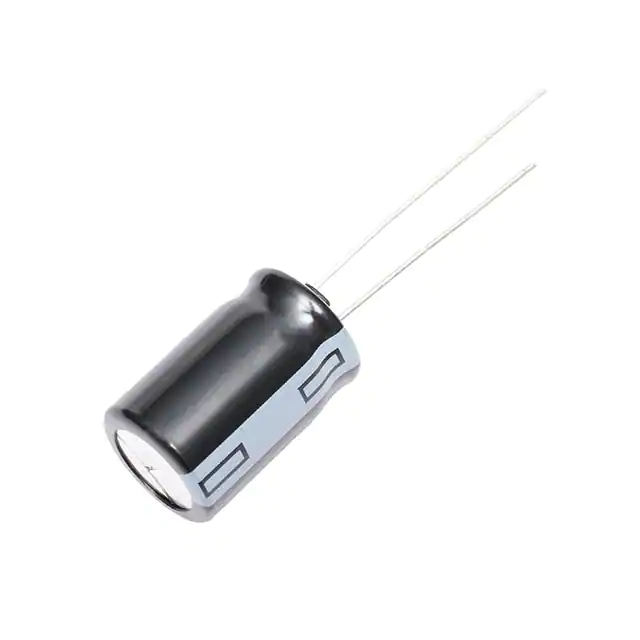

EEU-FP1E681CAP ALUM 680UF 20% 25V RADIAL |
3319 | 1.31 |
Add To CartInquiry Now |
Bulk | FP | Active | 680 µF | ±20% | 25 V | 68mOhm @ 100kHz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|

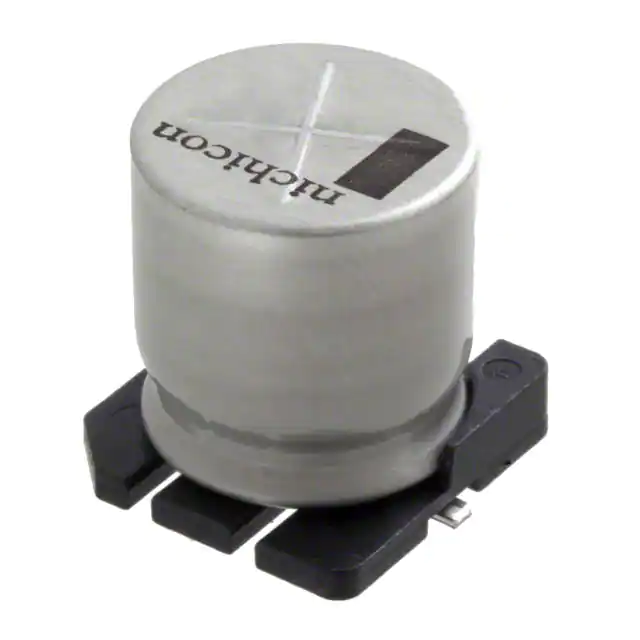

UCX1E821MNS1MSCAP ALUM 820UF 20% 25V SMD |
3090 | 2.13 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCX | Not For New Designs | 820 µF | ±20% | 25 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
Datasheet |
|

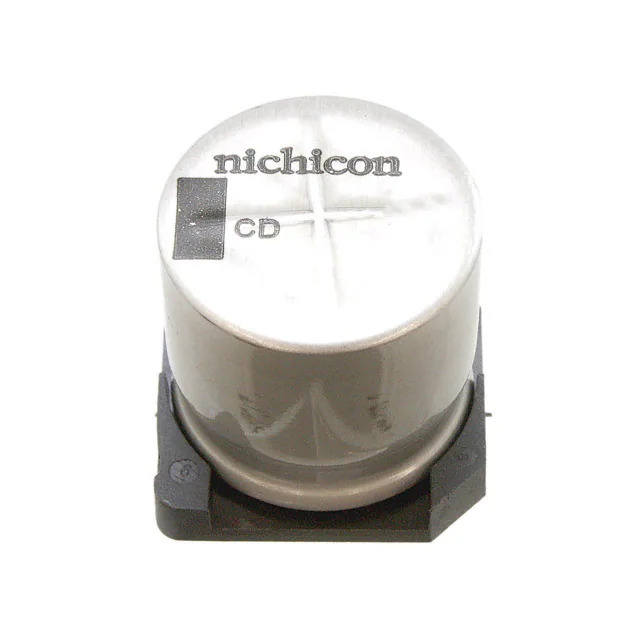

UCD1H681MNQ1MSCAP ALUM 680UF 20% 50V SMD |
3493 | 2.14 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCD | Not For New Designs | 680 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 805 mA @ 120 Hz | 1.61 A @ 100 kHz | 73 mOhms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
Datasheet |
|

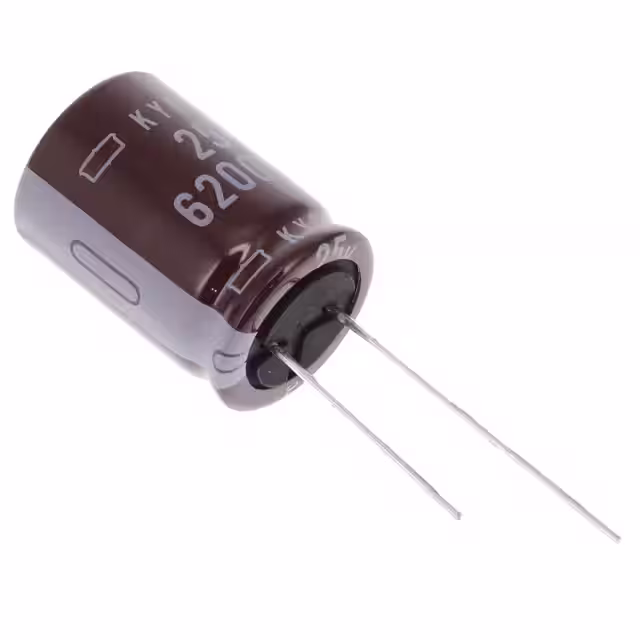

EKYC250ELL622MM25SCAP ALUM 6200UF 20% 25V RADIAL |
2193 | 2.97 |
Add To CartInquiry Now |
Bulk | KYC | Active | 6200 µF | ±20% | 25 V | 30mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.8475 A @ 120 Hz | 3.35 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
Datasheet |
|
UPT2D680MPDCAP ALUM 68UF 20% 200V RADIAL |
3586 | 1.33 |
Add To CartInquiry Now |
Bulk | UPT | Active | 68 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
Datasheet |
|
UCY2V680MHD3TNCAP ALUM 68UF 20% 350V RADIAL |
2489 | 2.52 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 68 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
Datasheet |
|
UHE1J152MHDCAP ALUM 1500UF 20% 63V RADIAL |
3865 | 3.00 |
Add To CartInquiry Now |
Bulk | UHE | Not For New Designs | 1500 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 36 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
Datasheet |
|
ELXZ100ELL822ML35SCAP ALUM 8200UF 20% 10V RADIAL |
3857 | 3.01 |
Add To CartInquiry Now |
Bulk | LXZ | Active | 8200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.6775 A @ 120 Hz | 3.15 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
Datasheet |
|

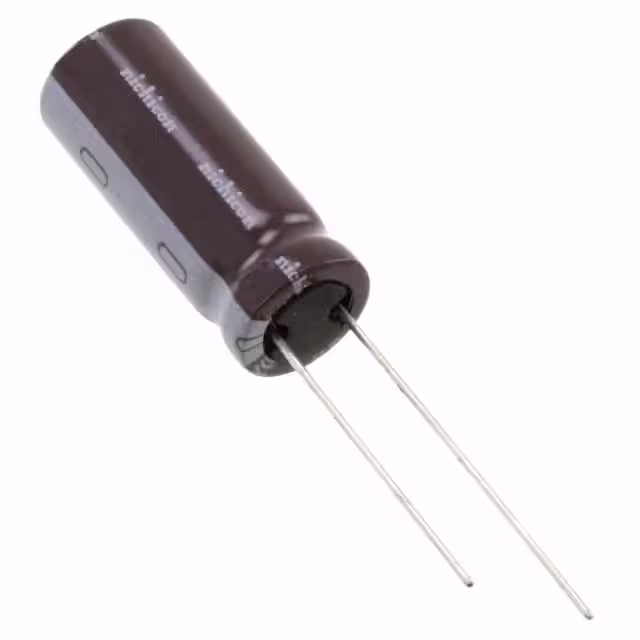

UCY2V220MPDCAP ALUM 22UF 20% 350V RADIAL |
3692 | 1.35 |
Add To CartInquiry Now |
Bulk | UCY | Active | 22 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
Datasheet |
|

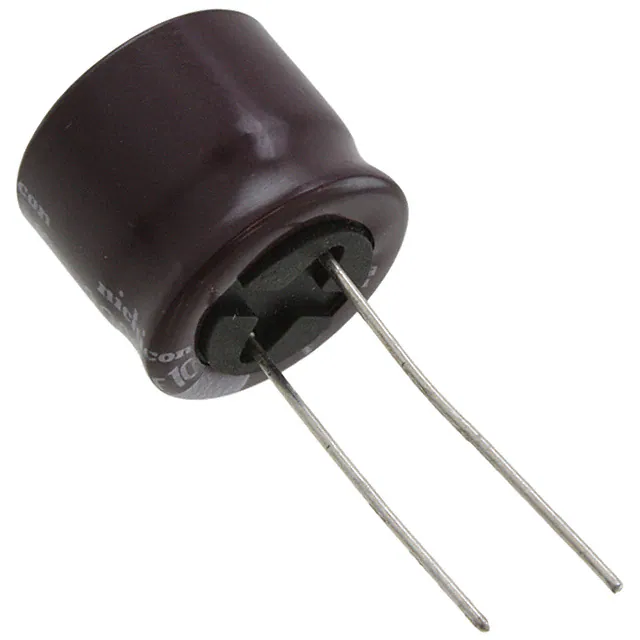

UPJ1K221MHD6CAP ALUM 220UF 20% 80V RADIAL |
2888 | 1.35 |
Add To CartInquiry Now |
Bulk | UPJ | Not For New Designs | 220 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 643 mA @ 120 Hz | 881 mA @ 10 kHz | 130 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
EEU-ED2V680CAP ALUM 68UF 20% 350V RADIAL |
3364 | 3.06 |
Add To CartInquiry Now |
Bulk | ED-A | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
Datasheet |
|
UBT2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
2205 | 2.58 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UBT | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 329 mA @ 120 Hz | 493.5 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
865080462016CAP ALUM 1000UF 20% 25V SMD |
2157 | 1.84 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | WCAP-ASLI | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | 80 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
865080662019CAP ALUM 330UF 20% 50V SMD |
2692 | 1.84 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | WCAP-ASLI | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 800 mA @ 100 kHz | 210 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
