Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

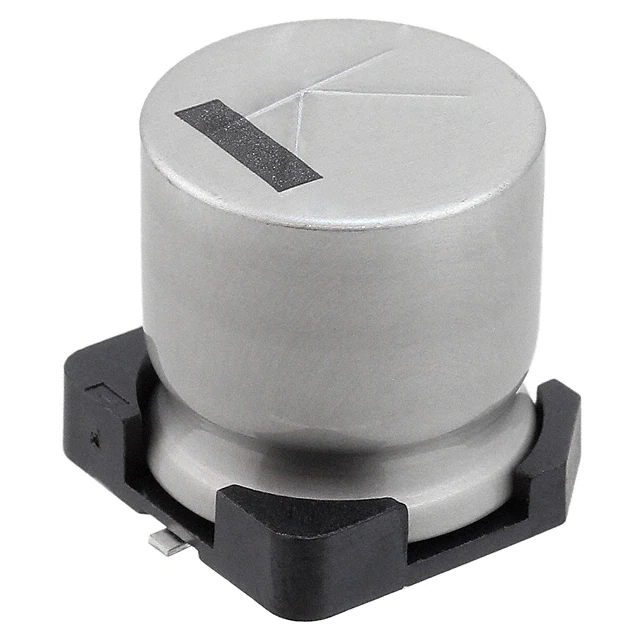

25TLV1500M16X16.5CAP ALUM 1500UF 20% 25V SMD |
3514 | 2.42 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TLV | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.8 A @ 100 kHz | 45 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
Datasheet |
|
EEU-FS1J391BCAP ALUM 390UF 20% 63V RADIAL |
3386 | 1.57 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 390 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1865 A @ 120 Hz | 1.582 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.807 (20.50mm) | - | Through Hole |
|
Datasheet |
|
EEU-EE2V220CAP ALUM 22UF 20% 350V RADIAL |
2385 | 1.50 |
Add To CartInquiry Now |
Bulk | EE-A | Active | 22 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 660 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UHW1V681MPDCAP ALUM 680UF 20% 35V RADIAL |
329 | 1.50 |
Add To CartInquiry Now |
Bulk | UHW | Not For New Designs | 680 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.9 A @ 100 kHz | 17 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-FS0J472CAP ALUM 4700UF 20% 6.3V RADIAL |
132 | 1.50 |
Add To CartInquiry Now |
Bulk | FS-A | Active | 4700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|

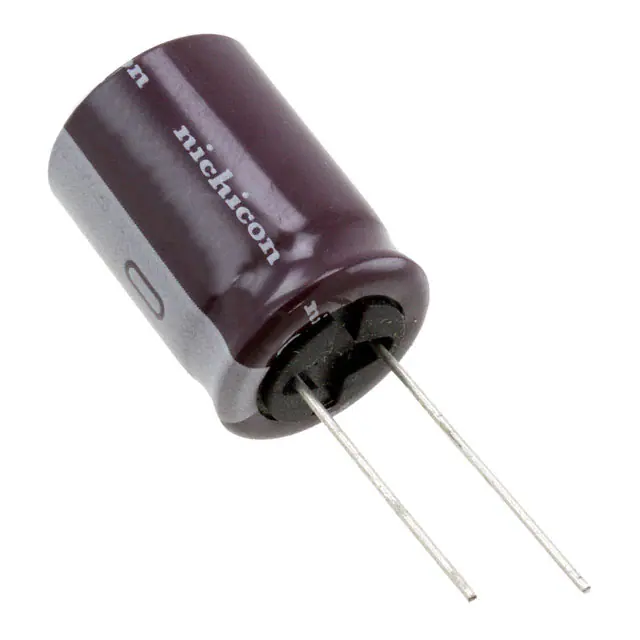

UCS2E151MHD1TNCAP ALUM 150UF 20% 250V RADIAL |
3769 | 2.84 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 150 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.94 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
Datasheet |
|
UBW1K471MHD1TNCAP ALUM 470UF 20% 80V RADIAL |
250 | 2.84 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UBW | Active | 470 µF | ±20% | 80 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 110 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
EEE-FK0J332AVCAP ALUM 3300UF 20% 6.3V SMD |
3691 | 2.44 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK, Anti-Vibration | Active | 3300 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1C152AVCAP ALUM 1500UF 20% 16V SMD |
2391 | 2.44 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK, Anti-Vibration | Active | 1500 µF | ±20% | 16 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1E102AVCAP ALUM 1000UF 20% 25V SMD |
3145 | 2.44 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK, Anti-Vibration | Active | 1000 µF | ±20% | 25 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1H391AVCAP ALUM 390UF 20% 50V SMD |
2655 | 2.44 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK, Anti-Vibration | Active | 390 µF | ±20% | 50 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 675 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1V471AVCAP ALUM 470UF 20% 35V SMD |
3840 | 2.44 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK, Anti-Vibration | Active | 470 µF | ±20% | 35 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
Datasheet |
|
UHE1H821MHDCAP ALUM 820UF 20% 50V RADIAL |
2367 | 1.51 |
Add To CartInquiry Now |
Bulk | UHE | Not For New Designs | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.883 mA @ 120 Hz | 2.51 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
Datasheet |
|

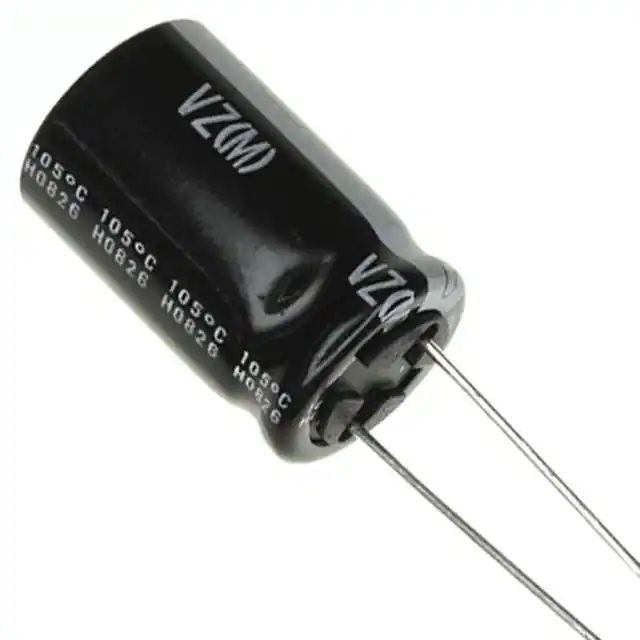

UVZ2G220MHDCAP ALUM 22UF 20% 400V RADIAL |
2958 | 1.51 |
Add To CartInquiry Now |
Bulk | UVZ | Not For New Designs | 22 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 264 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|

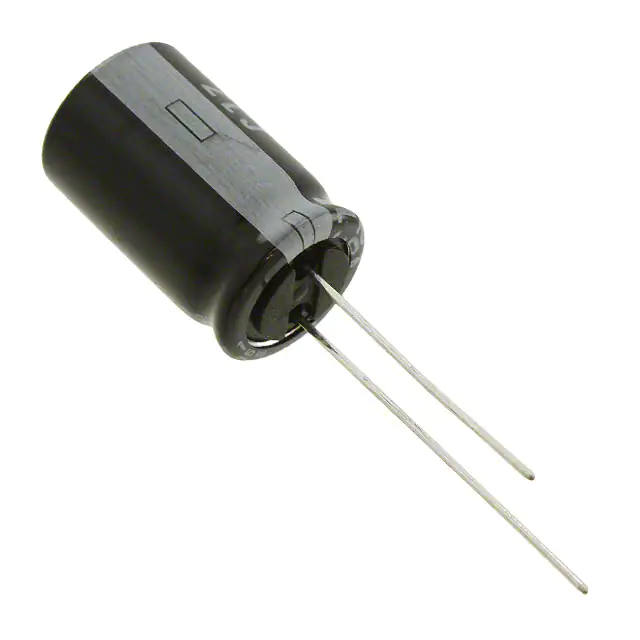

63ZLJ390M12.5X20CAP ALUM 390UF 20% 63V RADIAL |
3235 | 1.51 |
Add To CartInquiry Now |
Bulk | ZLJ | Active | 390 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.095 A @ 120 Hz | 1.99 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|

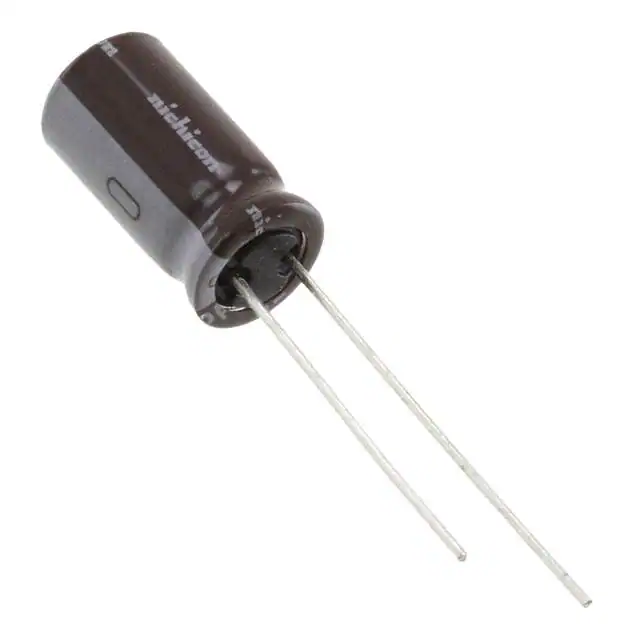

UPA1E471MPDCAP ALUM 470UF 20% 25V RADIAL |
2652 | 0.71 |
Add To CartInquiry Now |
Bulk | UPA | Active | 470 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
16ZLQ820MEFC8X16CAP ALUM 820UF 20% 16V RADIAL |
3558 | 0.71 |
Add To CartInquiry Now |
Bulk | ZLQ | Active | 820 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 834 mA @ 120 Hz | 1.39 A @ 100 kHz | 38 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
UUJ1H471MNQ6MSCAP ALUM 470UF 20% 50V SMD |
205 | 2.14 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUJ | Not For New Designs | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
Datasheet |
|
UPJ1K221MHD6TNCAP ALUM 220UF 20% 80V RADIAL |
2035 | 1.35 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 220 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 643 mA @ 120 Hz | 881 mA @ 10 kHz | 130 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
EEV-FK2A151MCAP ALUM 150UF 20% 100V SMD |
3834 | 2.46 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 150 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 594.8 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
