Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
UPW0J222MPD6CAP ALUM 2200UF 20% 6.3V RADIAL |
3683 | 1.07 |
Add To CartInquiry Now |
Bulk | UPW | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.224 A @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
Datasheet |
|
UVP1E330MEDCAP ALUM 33UF 20% 25V RADIAL |
3564 | 0.50 |
Add To CartInquiry Now |
Bulk | UVP | Not For New Designs | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UVP1V220MEDCAP ALUM 22UF 20% 35V RADIAL |
2773 | 0.50 |
Add To CartInquiry Now |
Bulk | UVP | Not For New Designs | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 73 mA @ 120 Hz | 146 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UPW1C152MHDCAP ALUM 1500UF 20% 16V RADIAL |
3172 | 1.07 |
Add To CartInquiry Now |
Bulk | UPW | Not For New Designs | 1500 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
Datasheet |
|
UPJ1J220MEDCAP ALUM 22UF 20% 63V RADIAL |
3541 | 0.50 |
Add To CartInquiry Now |
Bulk | UPJ | Not For New Designs | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 215 mA @ 10 kHz | 780 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.472 (12.00mm) | - | Through Hole |
|
Datasheet |
|
UPM1V820MEDCAP ALUM 82UF 20% 35V RADIAL |
2190 | 0.50 |
Add To CartInquiry Now |
Bulk | UPM | Not For New Designs | 82 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 415 mA @ 10 kHz | 190 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
EEU-EE2C330CAP ALUM 33UF 20% 160V RADIAL |
2328 | 1.07 |
Add To CartInquiry Now |
Bulk | EE-A | Active | 33 µF | ±20% | 160 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 283.5 mA @ 120 Hz | 810 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-EE2D330CAP ALUM 33UF 20% 200V RADIAL |
1113 | 1.07 |
Add To CartInquiry Now |
Bulk | EE-A | Active | 33 µF | ±20% | 200 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 322 mA @ 120 Hz | 920 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|

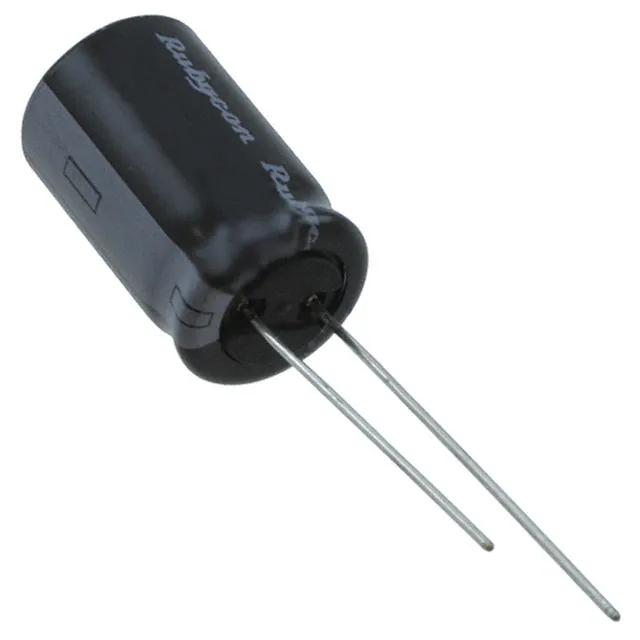

10YXG2200MEFC12.5X20CAP ALUM 2200UF 20% 10V RADIAL |
3069 | 1.07 |
Add To CartInquiry Now |
Bulk | YXG | Active | 2200 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UPM2A271MHD6TNCAP ALUM 270UF 20% 100V RADIAL |
2164 | 2.02 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 270 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.45 A @ 10 kHz | 80 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEE-TC1C101PCAP ALUM 100UF 20% 16V SMD |
2362 | 1.19 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TC | Active | 100 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1C221PCAP ALUM 220UF 20% 16V SMD |
2600 | 1.19 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TC | Active | 220 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1E101PCAP ALUM 100UF 20% 25V SMD |
3916 | 1.19 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TC | Active | 100 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1V101PCAP ALUM 100UF 20% 35V SMD |
3781 | 1.19 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TC | Active | 100 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EMZR6R3ARA152MHA0GCAP ALUM 1500UF 20% 6.3V SMD |
3156 | 1.12 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MZR | Active | 1500 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EMZR100ARA102MHA0GCAP ALUM 1000UF 20% 10V SMD |
2438 | 1.12 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MZR | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EMZR160ARA681MHA0GCAP ALUM 680UF 20% 16V SMD |
2720 | 1.12 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MZR | Active | 680 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UVK2G470MHD1TNCAP ALUM 47UF 20% 400V RADIAL |
2322 | 2.04 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|

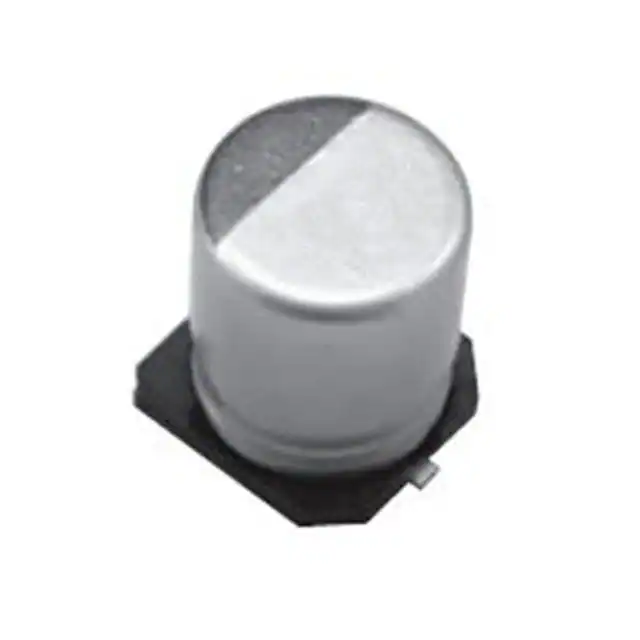

EMXB250ARA102MLH0SCAP ALUM 1000UF 20% 25V SMD |
2288 | 1.82 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | AIchip™- MXB | Active | 1000 µF | ±20% | 25 V | 100mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 672 mA @ 120 Hz | 1.12 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
Datasheet |
|
UCA2W220MHD1TNCAP ALUM 22UF 20% 450V RADIAL |
3277 | 2.05 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 22 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
