Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
EEU-FM1H271CAP ALUM 270UF 20% 50V RADIAL |
2605 | 0.96 |
Add To CartInquiry Now |
Bulk | FM-A | Active | 270 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.323 A @ 120 Hz | 1.89 A @ 100 kHz | 23 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EKMG100ELL222MJ20SCAP ALUM 2200UF 20% 10V RADIAL |
2521 | 0.96 |
Add To CartInquiry Now |
Bulk | KMG | Active | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 820.8 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
Datasheet |
|
ELXZ350ELL331MJ16SCAP ALUM 330UF 20% 35V RADIAL |
2787 | 0.96 |
Add To CartInquiry Now |
Bulk | LXZ | Active | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
EEE-HD1V470APCAP ALUM 47UF 20% 35V SMD |
2372 | 1.06 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HD | Active | 47 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 79 mA @ 120 Hz | 134.3 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UVY1J102MHD1TNCAP ALUM 1000UF 20% 63V RADIAL |
3500 | 1.83 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 1000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.0695 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
UCX1H101MCS1GSCAP ALUM 100UF 20% 50V SMD |
2382 | 1.06 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCX | Not For New Designs | 100 µF | ±20% | 50 V | 200mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
Series.jpg)
|
EEE-FN1A102LCAP ALUM 1000UF 20% 10V SMD |
3412 | 1.06 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FN, Halogen Free | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-FN1J101LCAP ALUM 100UF 20% 63V SMD |
3915 | 1.06 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FN, Halogen Free | Active | 100 µF | ±20% | 63 V | 350mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
63TLV100M10X10.5CAP ALUM 100UF 20% 63V SMD |
3338 | 1.06 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TLV | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 200 mA @ 120 Hz | 400 mA @ 100 kHz | 350 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|

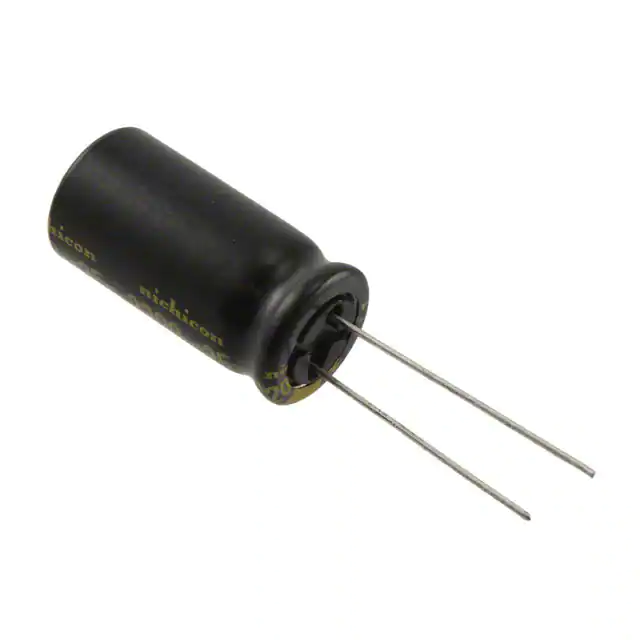

UKW2A221MHD1TOCAP ALUM 220UF 20% 100V RADIAL |
2945 | 2.16 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UKW | Not For New Designs | 220 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 600 mA @ 120 Hz | 900 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
UVZ2G100MHDCAP ALUM 10UF 20% 400V RADIAL |
2709 | 0.97 |
Add To CartInquiry Now |
Bulk | UVZ | Not For New Designs | 10 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 144 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-FM1A152LCAP ALUM 1500UF 20% 10V RADIAL |
2713 | 0.97 |
Add To CartInquiry Now |
Bulk | FM-A | Active | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
EKZE160ELL681MJ16SCAP ALUM 680UF 20% 16V RADIAL |
3438 | 0.97 |
Add To CartInquiry Now |
Bulk | KZE | Active | 680 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 858 mA @ 120 Hz | 1.43 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
Datasheet |
|
EGXE101ELL470MJ16SCAP ALUM 47UF 20% 100V RADIAL |
3051 | 0.97 |
Add To CartInquiry Now |
Bulk | GXE | Active | 47 µF | ±20% | 100 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 252 mA @ 120 Hz | 630 mA @ 100 kHz | 550 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EKMQ160ELL102MJC5SCAP ALUM 1000UF 20% 16V RADIAL |
2939 | 0.93 |
Add To CartInquiry Now |
Bulk | KMQ | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 750 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
Datasheet |
|
EGXE630ELL221MK20SCAP ALUM 220UF 20% 63V RADIAL |
3544 | 0.97 |
Add To CartInquiry Now |
Bulk | GXE | Active | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
Datasheet |
|
UPW1E222MHD1TNCAP ALUM 2200UF 20% 25V RADIAL |
708 | 1.84 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 2200 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.555 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|

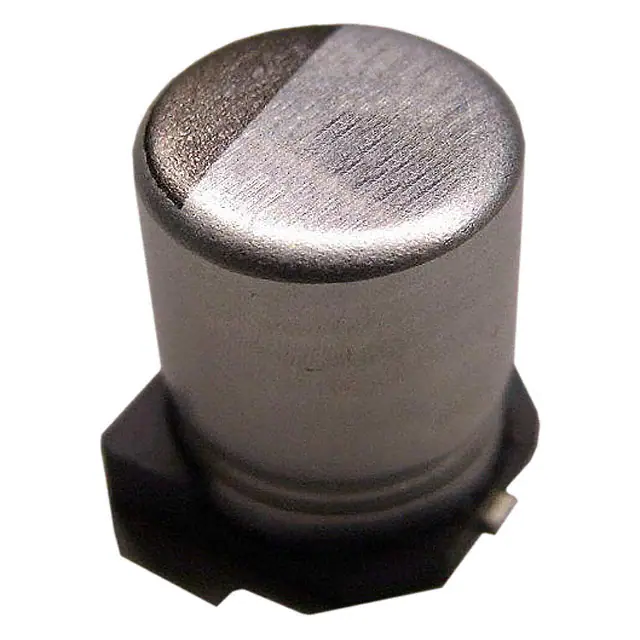

EMHJ160ADA471MJA0GCAP ALUM 470UF 20% 16V SMD |
2901 | 2.17 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MHJ | Active | 470 µF | ±20% | 16 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 220 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.406 (10.30mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
UHD0J331MEDCAP ALUM 330UF 20% 6.3V RADIAL |
3876 | 0.45 |
Add To CartInquiry Now |
Bulk | UHD | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 283.5 mA @ 120 Hz | 405 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UPJ1H390MEDCAP ALUM 39UF 20% 50V RADIAL |
2674 | 0.45 |
Add To CartInquiry Now |
Bulk | UPJ | Not For New Designs | 39 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 260 mA @ 10 kHz | 500 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.472 (12.00mm) | - | Through Hole |
