Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

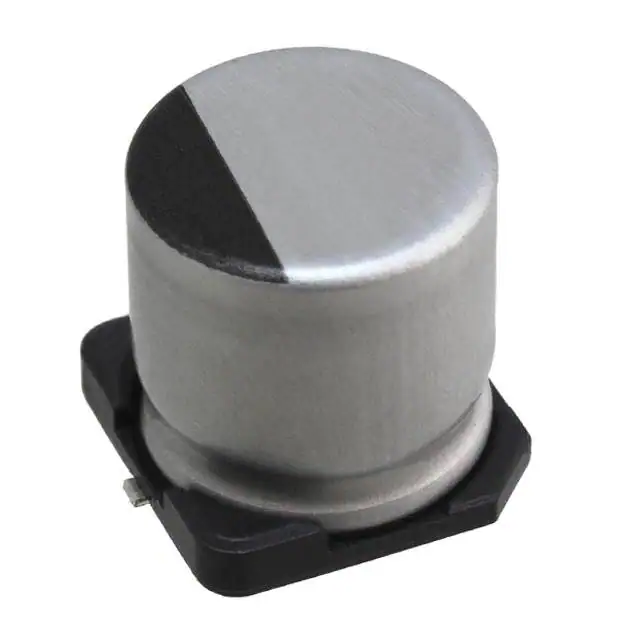

UWH1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
2613 | 0.97 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWH | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 116 mA @ 120 Hz | 174 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|

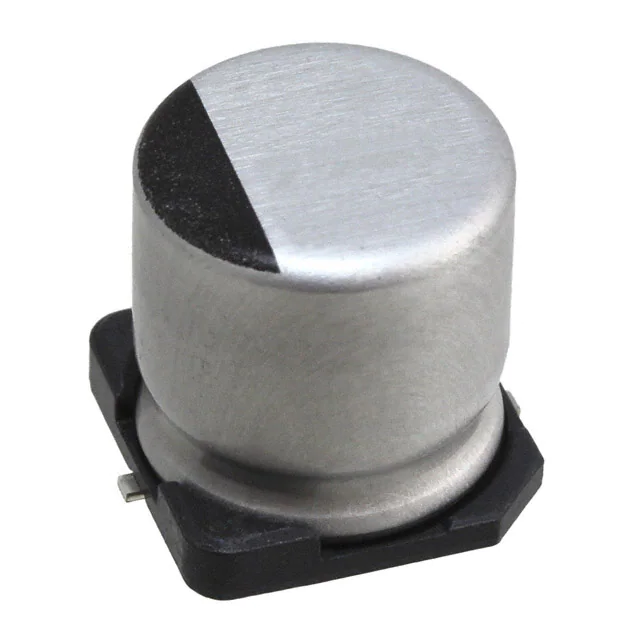

UWD0J102MCL1GSCAP ALUM 1000UF 20% 6.3V SMD |
2965 | 0.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWD | Active | 1000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
UPJ1E820MEDCAP ALUM 82UF 20% 25V RADIAL |
2985 | 0.39 |
Add To CartInquiry Now |
Bulk | UPJ | Not For New Designs | 82 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 285 mA @ 10 kHz | 470 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.472 (12.00mm) | - | Through Hole |
|
Datasheet |
|
UPJ1J100MDDCAP ALUM 10UF 20% 63V RADIAL |
2030 | 0.39 |
Add To CartInquiry Now |
Bulk | UPJ | Not For New Designs | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 67 mA @ 120 Hz | 135 mA @ 10 kHz | 1.6 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
Datasheet |
|
EEE-FPA122UAVCAP ALUM 1200UF 20% 10V SMD |
3197 | 1.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FP, Anti-Vibration | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-FPC821UAVCAP ALUM 820UF 20% 16V SMD |
3896 | 1.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FP, Anti-Vibration | Active | 820 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-FPE561UAVCAP ALUM 560UF 20% 25V SMD |
3887 | 1.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FP, Anti-Vibration | Active | 560 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
476CKR063MCAP ALUM 47UF 20% 63V RADIAL |
3747 | 0.39 |
Add To CartInquiry Now |
Bulk | CKR | Active | 47 µF | ±20% | 63 V | 2.822Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 483 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
Datasheet |
|
UVK1V222MHD1TNCAP ALUM 2200UF 20% 35V RADIAL |
3074 | 1.64 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
Datasheet |
|
UWG0J152MNL1GSCAP ALUM 1500UF 20% 6.3V SMD |
2131 | 0.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWG | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
URS2G220MHD1TNCAP ALUM 22UF 20% 400V RADIAL |
3430 | 1.65 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|

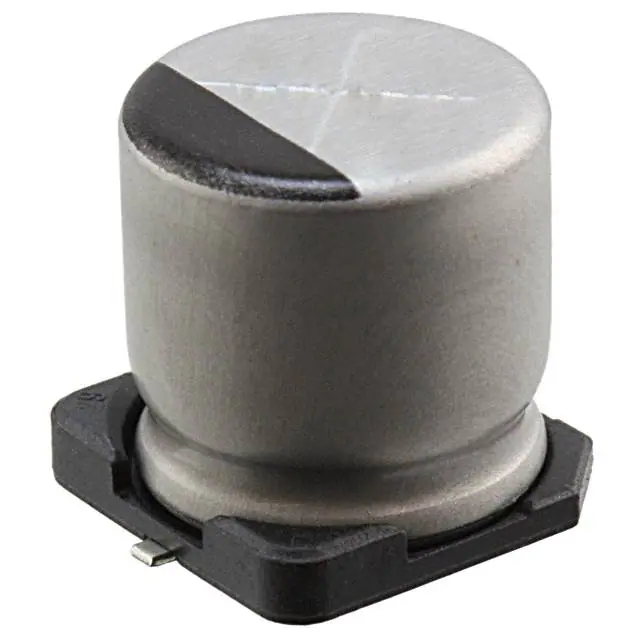

UUA1V221MNL1GSCAP ALUM 220UF 20% 35V SMD |
2759 | 0.98 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUA | Active | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 562.5 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|

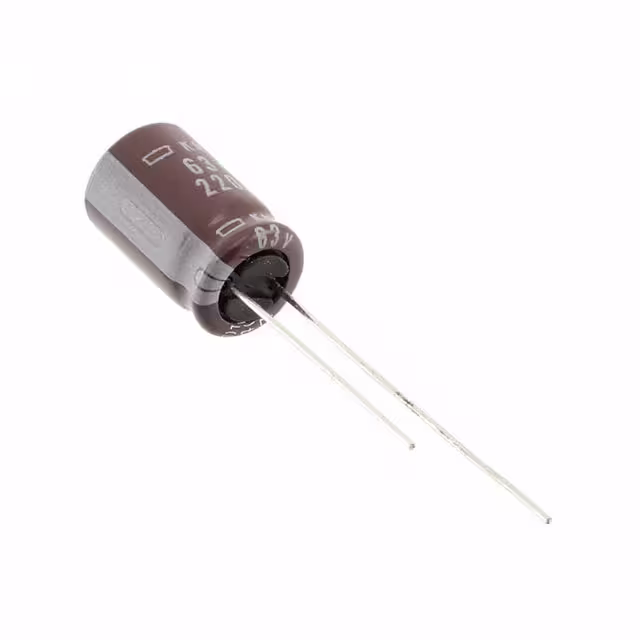

EKMG630ELL221MJ16SCAP ALUM 220UF 20% 63V RADIAL |
3504 | 0.87 |
Add To CartInquiry Now |
Bulk | KMG | Active | 220 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 502.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
UWD1A681MCL1GSCAP ALUM 680UF 20% 10V SMD |
3242 | 0.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWD | Active | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
ELXY160ELL471MJ16SCAP ALUM 470UF 20% 16V RADIAL |
3700 | 0.87 |
Add To CartInquiry Now |
Bulk | LXY | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 412.5 mA @ 120 Hz | 825 mA @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
ELXY350ELL221MJ16SCAP ALUM 220UF 20% 35V RADIAL |
2774 | 0.87 |
Add To CartInquiry Now |
Bulk | LXY | Active | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 412.5 mA @ 120 Hz | 825 mA @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
80ZLH120MEFC10X16CAP ALUM 120UF 20% 80V RADIAL |
2771 | 0.87 |
Add To CartInquiry Now |
Bulk | ZLH | Active | 120 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | - | 170 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|

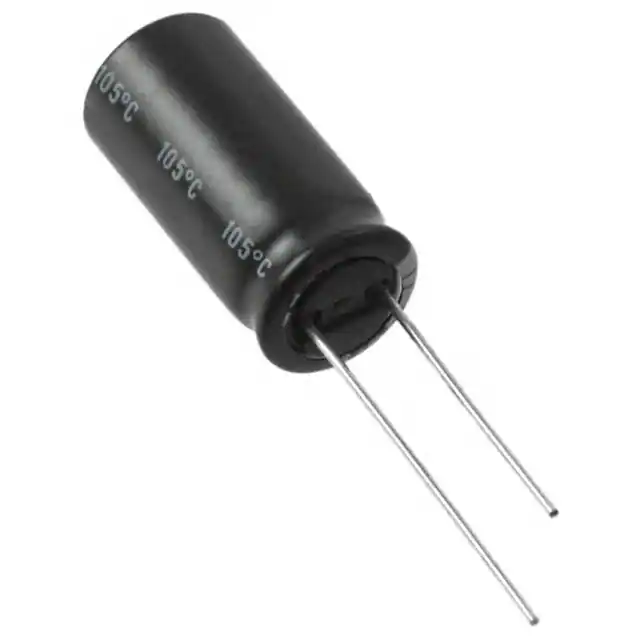

25YXG680MEFC10X20CAP ALUM 680UF 20% 25V RADIAL |
846 | 0.87 |
Add To CartInquiry Now |
Bulk | YXG | Active | 680 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.4 A @ 100 kHz | 46 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
Datasheet |
|

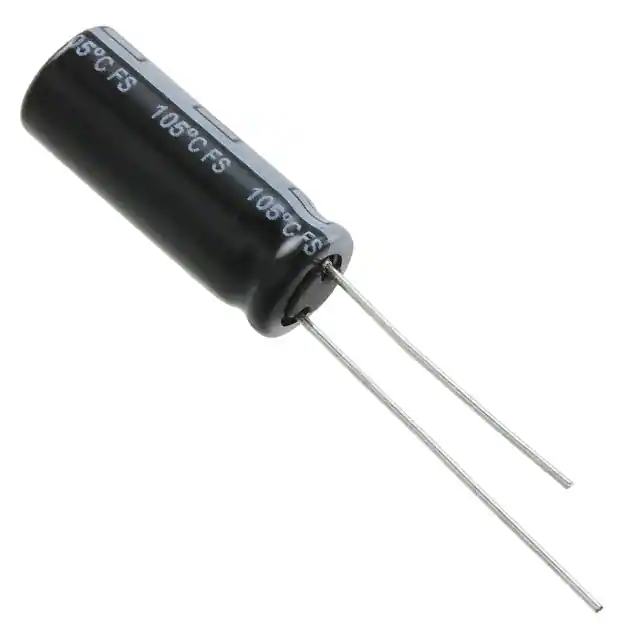

EEU-FS1A182LCAP ALUM 1800UF 20% 10V RADIAL |
324 | 0.87 |
Add To CartInquiry Now |
Bulk | FS-A | Active | 1800 µF | ±20% | 10 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.248 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UWG1A471MNL1GSCAP ALUM 470UF 20% 10V SMD |
3534 | 0.94 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWG | Active | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
