Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
UPM2A150MED1TDCAP ALUM 15UF 20% 100V RADIAL |
2344 | 0.50 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 15 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | 810 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
ECA-1CM222BCAP ALUM 2200UF 20% 16V RADIAL |
2783 | 0.38 |
Add To CartInquiry Now |
Tape & Box (TB) | M-A | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.7 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEU-FM1V471BCAP ALUM 470UF 20% 35V RADIAL |
2884 | 0.96 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.635 A @ 120 Hz | 2.18 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UCZ2A100MCL1GSCAP ALUM 10UF 20% 100V SMD |
2069 | 0.96 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCZ | Not For New Designs | 10 µF | ±20% | 100 V | 750mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UWF1E100MCL1GBCAP ALUM 10UF 20% 25V SMD |
3695 | 0.48 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWF | Not For New Designs | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 2.6 Ohms | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
Datasheet |
|
EMVY6R3ADA152MJA0GCAP ALUM 1500UF 20% 6.3V SMD |
2269 | 0.96 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MVY | Active | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 402 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|

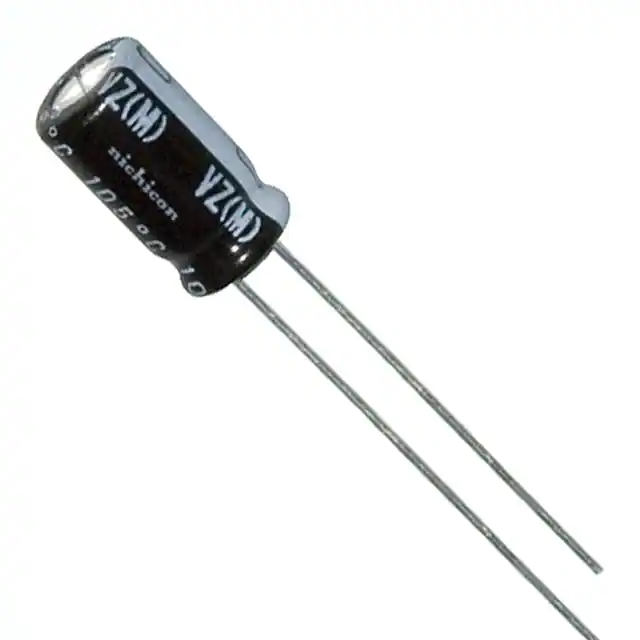

UVZ2E330MHD1TOCAP ALUM 33UF 20% 250V RADIAL |
2257 | 0.96 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 33 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 256 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|

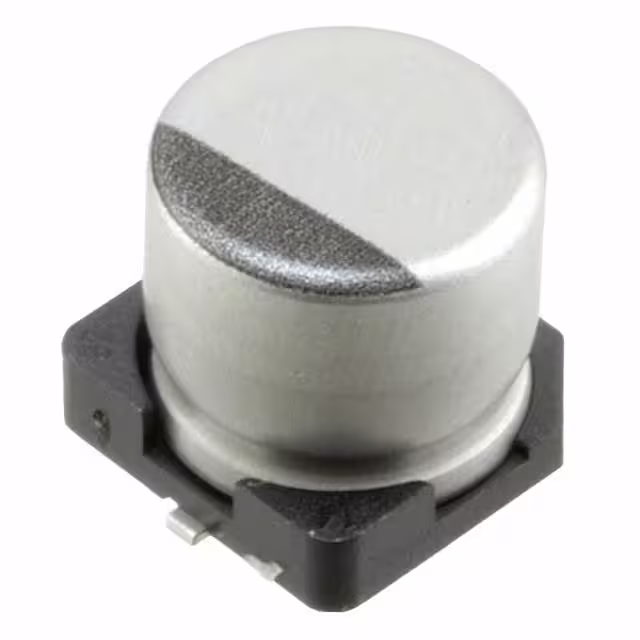

UCD0J101MCL1GSCAP ALUM 100UF 20% 6.3V SMD |
2480 | 0.48 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCD | Not For New Designs | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datasheet |
|
UCD1E330MCL6GSCAP ALUM 33UF 20% 25V SMD |
2988 | 0.53 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCD | Not For New Designs | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
Datasheet |
|
UVZ1C471MPD1TACAP ALUM 470UF 20% 16V RADIAL |
3629 | 0.53 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
Datasheet |
|
UCZ2A220MCL6GSCAP ALUM 22UF 20% 100V SMD |
2706 | 0.91 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCZ | Not For New Designs | 22 µF | ±20% | 100 V | 750mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UCZ1J330MCL6GSCAP ALUM 33UF 20% 63V SMD |
2641 | 0.91 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCZ | Not For New Designs | 33 µF | ±20% | 63 V | 700mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UCZ1K330MCL6GSCAP ALUM 33UF 20% 80V SMD |
3086 | 0.92 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCZ | Not For New Designs | 33 µF | ±20% | 80 V | 750mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
UVY2C470MPD1TDCAP ALUM 47UF 20% 160V RADIAL |
2532 | 0.92 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 172.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UVZ1H471MHD1TOCAP ALUM 470UF 20% 50V RADIAL |
3052 | 0.97 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 470 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UKA1E470MDD1TDCAP ALUM 47UF 20% 25V RADIAL |
3507 | 0.51 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UKA | Not For New Designs | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 83 mA @ 120 Hz | 166 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UVP1E221MPD1TDCAP ALUM 220UF 20% 25V RADIAL |
2279 | 0.97 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UVP | Not For New Designs | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 305 mA @ 120 Hz | 457.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
Datasheet |
|
UKA1H330MDD1TDCAP ALUM 33UF 20% 50V RADIAL |
2873 | 0.51 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UKA | Not For New Designs | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UCA2E100MPD1TDCAP ALUM 10UF 20% 250V RADIAL |
3527 | 0.97 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 10 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
Datasheet |
|
UUT1C470MCL1GSCAP ALUM 47UF 20% 16V SMD |
3453 | 0.54 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUT | Not For New Designs | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
