Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

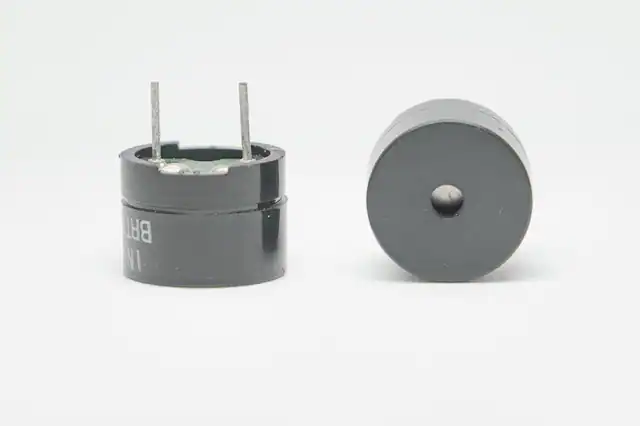

BRT1209P-01BUZZER MAGNETIC 1.5V 12MM TH |
3861 | 0.44 |
Add To CartInquiry Now |
Tray | BRT1209-01 | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
Datasheet |
|

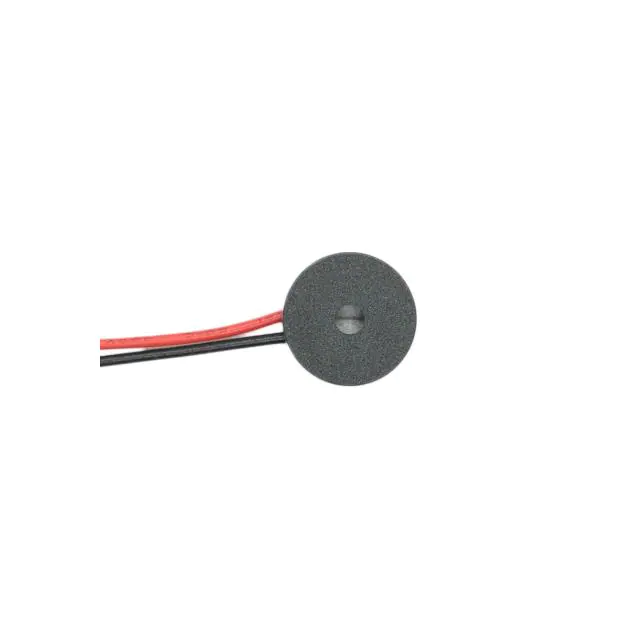

BRT1209L-01BUZZER PIEZO 1.5V 12MM CUSTOM |
2675 | 0.44 |
Add To CartInquiry Now |
Tray | - | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 3V | 2.048kHz | Piezo | Single Tone | - | 85dB @ 1.5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | - | - | Custom | Wire Leads | 0.472 Dia (12.00mm) |
|
Datasheet |
|
BRT1209P-01-50BUZZER MAGNETIC 1.5V 12MM TH |
3790 | 0.49 |
Add To CartInquiry Now |
Tray | BRT1209-01-50 | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 2V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
Datasheet |
|

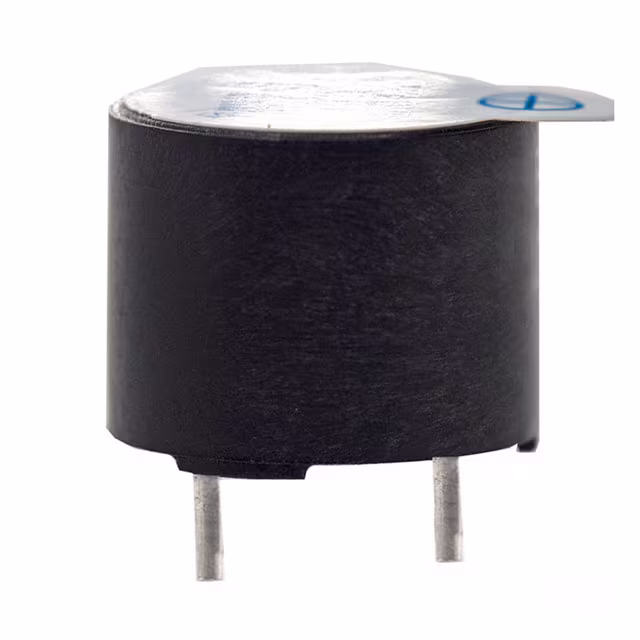

BRT1209PF-12BUZZER MAGNETIC 12V 12MM TH |
2927 | 0.56 |
Add To CartInquiry Now |
Tray | BRT1209PF | Active | Transducer, Externally Driven | DC | 12 V | 6 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
Datasheet |
|
BRT1207P-01-SEHBBUZZER MAGNETIC 1.5V 12MM TH |
3263 | 0.64 |
Add To CartInquiry Now |
Tray | BRT1207P | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 2V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 70mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
Datasheet |
|

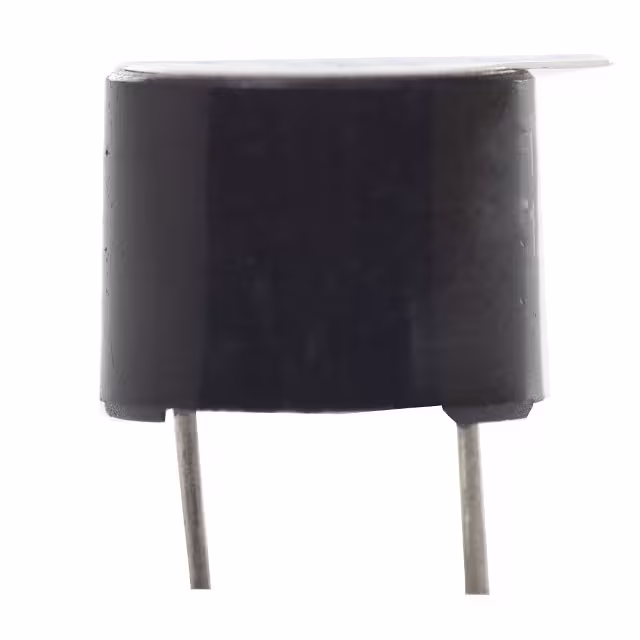

BRT1209P-12-CBUZZER MAGNETIC 12V 12MM TH |
3893 | 1.15 |
Add To CartInquiry Now |
Tray | BRT1209P-C | Active | Transducer, Externally Driven | DC | 12 V | 8 ~ 15V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -25°C ~ 80°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
Datasheet |
|
BRP2407L-30BUZZER PIEZO 30V 23.4MM FLANGE |
900 | 1.49 |
Add To CartInquiry Now |
Tray | BRP2407-30 | Active | Transducer, Externally Driven | Peak-Peak Signal | 30 V | 1 ~ 30V | 5.6kHz | Piezo | Single Tone | - | 90dB @ 30V, 30cm | - | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.921 Dia (23.40mm) |
|
Datasheet |
|
BRP1708P-30BUZZER PIEZO 30V 17MM TH |
2592 | 1.50 |
Add To CartInquiry Now |
Tray | - | Active | Transducer, Externally Driven | Peak-Peak Signal | 30 V | 1 ~ 30V | 4.5kHz | Piezo | Single Tone | - | 95dB @ 30V, 30cm | - | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.669 Dia (17.00mm) |
|
Datasheet |
|
BRT1615P-12-CBUZZER MAGNETIC 12V 16MM TH |
2210 | 2.12 |
Add To CartInquiry Now |
Tray | BRT1615P-C | Active | Transducer, Externally Driven | DC | 12 V | 8 ~ 16V | 2.2kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630 Dia (16.00mm) |
|
Datasheet |
|

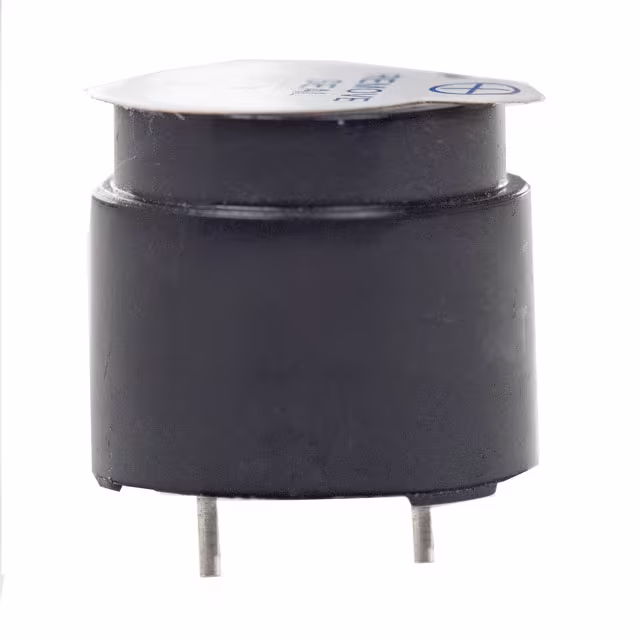

BRT1615P-06-CBUZZER MAGNETIC 6V 16MM TH |
600 | 2.12 |
Add To CartInquiry Now |
Tray | BRT1615P-C | Active | Transducer, Externally Driven | DC | 6 V | 4 ~ 7V | 2.2kHz | Magnetic | Single Tone | - | 85dB @ 6V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630 Dia (16.00mm) |
