Crystal Control Oscillators Explained: Accurate Oscillator Frequencies

Crystal control oscillators are integral components in a vast array of electronic devices, from simple wristwatches to highly sophisticated communication systems. These oscillators help maintain accurate frequencies, which are essential for timekeeping, signal generation, and synchronization purposes. The precision and reliability of crystal oscillators have made them the go-to solution for a multitude of applications, especially where timing accuracy is crucial.

Crystal Oscillator explained in 66 Seconds

Table of Contents

• What is an Oscillator?
• Crystal Oscillators: The Foundation of Precision
• Key Parameters of Crystal Oscillators
• Applications of Crystal Oscillators
• RF Oscillators and Their Role
• Types of Crystal Oscillators
• Crystal Oscillator Design Considerations
• Advancements in Crystal Oscillators
• Crystal Oscillators Data Sheet
• Conclusion
• Commonly Asked Questions

What is an Oscillator?

An oscillator is an electronic circuit that creates a nonstop, tedious waveform without any outside input. The waveform can be within the frame of sine, square, or triangle waves, depending on the plan and application of the oscillator. These circuits are basic in applications that require reliable timing signals, such as clocks, radios, and computers.

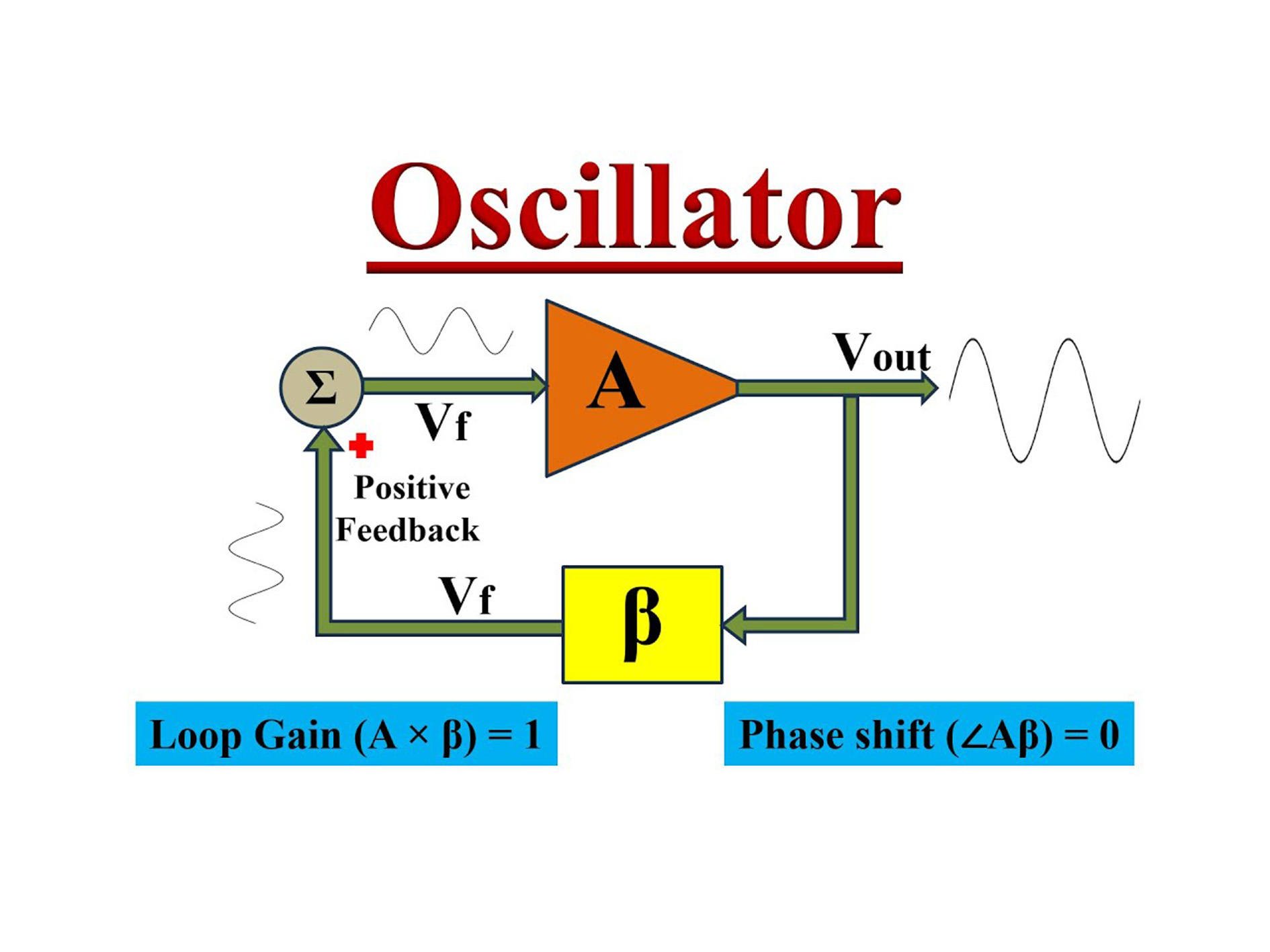

Basic Principle of Oscillation

Oscillators work by making occasional vacillations in voltage or current. These changes are controlled through input circuits, where the yield of the oscillator is encouraged back into its input, keeping up the swaying condition. The exact nature of the wavering is affected by the components utilized inside the circuit, such as resistors, capacitors, and inductors.

For more stable and accurate oscillations, especially at higher frequencies, crystal and oscillator circuits are often used. This leads to the introduction of the crystal quartz oscillator, which significantly improves the frequency stability.

Crystal Oscillators: The Foundation of Precision

What is a Crystal Oscillator?

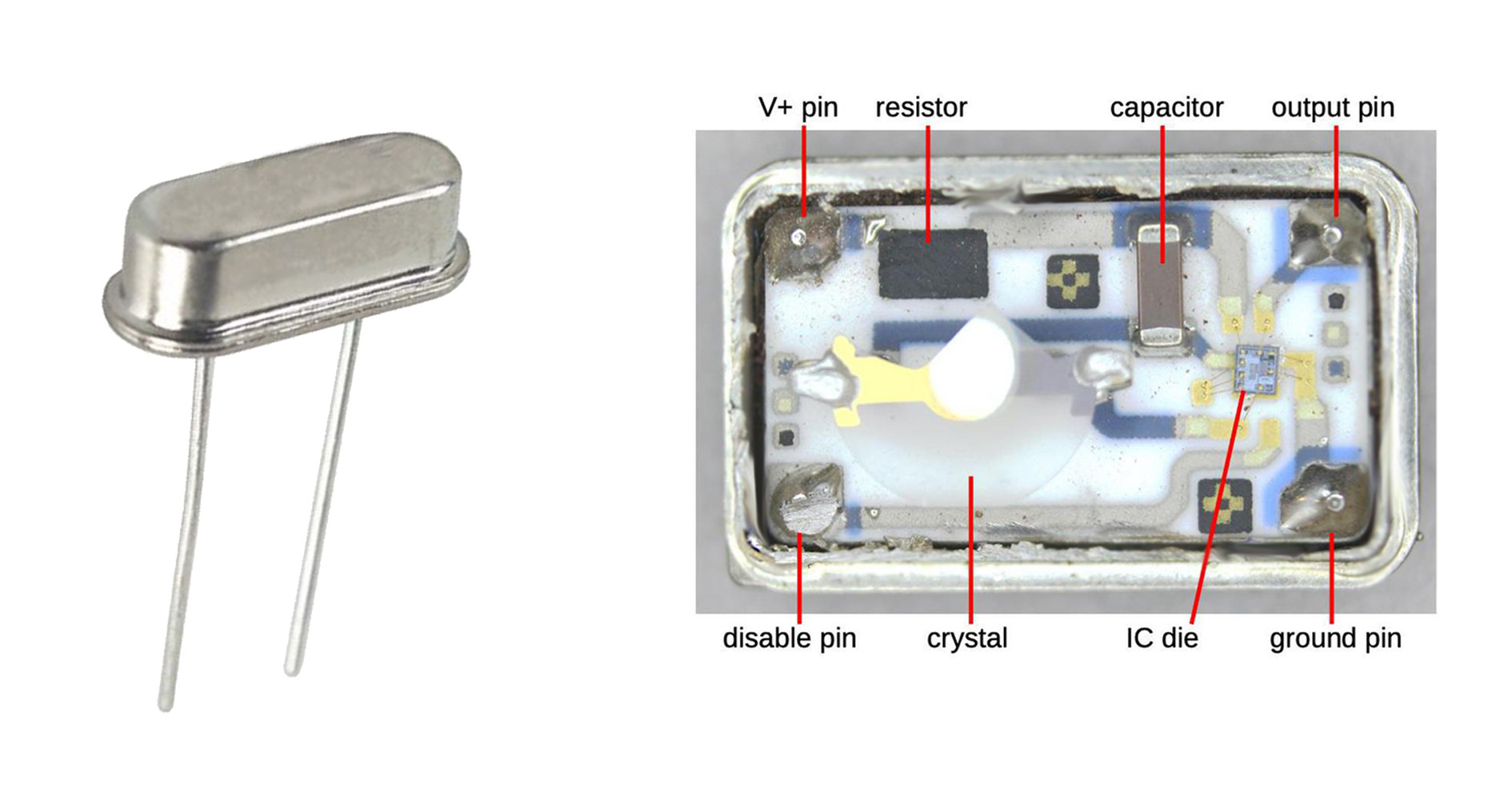

A crystal oscillator is a type of electronic oscillator that uses the mechanical resonance of a vibrating crystal to create an electrical signal with a highly precise frequency. This frequency is referred to as the crystal frequency, and the material most commonly used for this purpose is quartz. Quartz, a naturally occurring mineral, exhibits piezoelectric properties, making it ideal for frequency control in electronic circuits.

How Does a Quartz Crystal Oscillator Work?

The working guideline of a quartz precious stone oscillator depends on the piezoelectric impact. When a voltage is connected to a quartz precious stone, it distorts marginally and vibrates at a particular thunderous recurrence. Then again, when the precious stone vibrates, it produces an electrical flag. This bidirectional interaction between mechanical distortion and electrical vitality empowers quartz precious stones to be utilized as oscillators.

The frequency of quartz oscillators is decided by the measurements and cut of the gem. Quartz precious stones can sway at a wide run of frequencies, but the crystal oscillator frequency is typically chosen to coordinate the application's prerequisites.

Key Parameters of Crystal Oscillators

Accuracy and Stability

One of the major points of interest of precious stone oscillators is their prevalent precision and solidness compared to other oscillator sorts. The quartz crystal frequency can be controlled exceptionally absolutely, regularly inside a couple of parts per million (ppm). This makes Crystal oscillators vital in frameworks where indeed the smallest deviation in recurrence might lead to mistakes or glitches.

Temperature Effects

Temperature is one of the variables that can influence the precision of a Crystal oscillator. As temperature changes, the physical properties of the quartz precious stone alter, driving to slight shifts in its resounding recurrence. To relieve this, temperature-compensated precious stone oscillators (TCXOs) and oven-controlled precious stone oscillators (OCXOs) are utilized in applications where temperature soundness is basic.

Applications of Crystal Oscillators

Timekeeping Devices

One of the foremost common applications of precious stone oscillators is in timekeeping gadgets such as observes and clocks. In these gadgets, a Crystal quartz oscillator is utilized to preserve the precision of the time shown. For illustration, in a quartz observe, the oscillator's recurrence is regularly set at 32,768 Hz, which, when partitioned down, produces a steady 1-second timing flag.

Communication Systems

Crystal oscillators are also vital in communication systems. For illustration, radio frequency oscillators (RF oscillators) depend on quartz precious stones to produce steady, high-frequency signals. These oscillators are utilized in radios, tvs, and versatile communication frameworks, where precise flag era and timing are fundamental for information transmission.

Computer Systems

In computers and microcontrollers, precious stone oscillators are utilized to supply clock signals. These clock signals synchronize the operations of the CPU and other components, guaranteeing that information is handled effectively and precisely. In this case, the oscillation frequency is significant for deciding the in general speed and execution of the framework.

RF Oscillators and Their Role

An oscillator high frequency is often required in radio frequency (RF) applications. RF oscillation is significant for creating signals at particular frequencies utilized for transmitting and accepting radio waves. Quartz oscillators are favored in these frameworks since they guarantee that the flag remains steady and inside a limit recurrence extend, which is basic for clear and solid communication.

Types of Crystal Oscillators

Simple Crystal Oscillators

These oscillators use a basic circuit design to produce stable frequencies using a quartz crystal. They are commonly used in timekeeping applications and low-frequency signal generation. The soundness and exactness are regularly satisfactory for numerous regular applications but may not be reasonable for situations with huge temperature varieties.

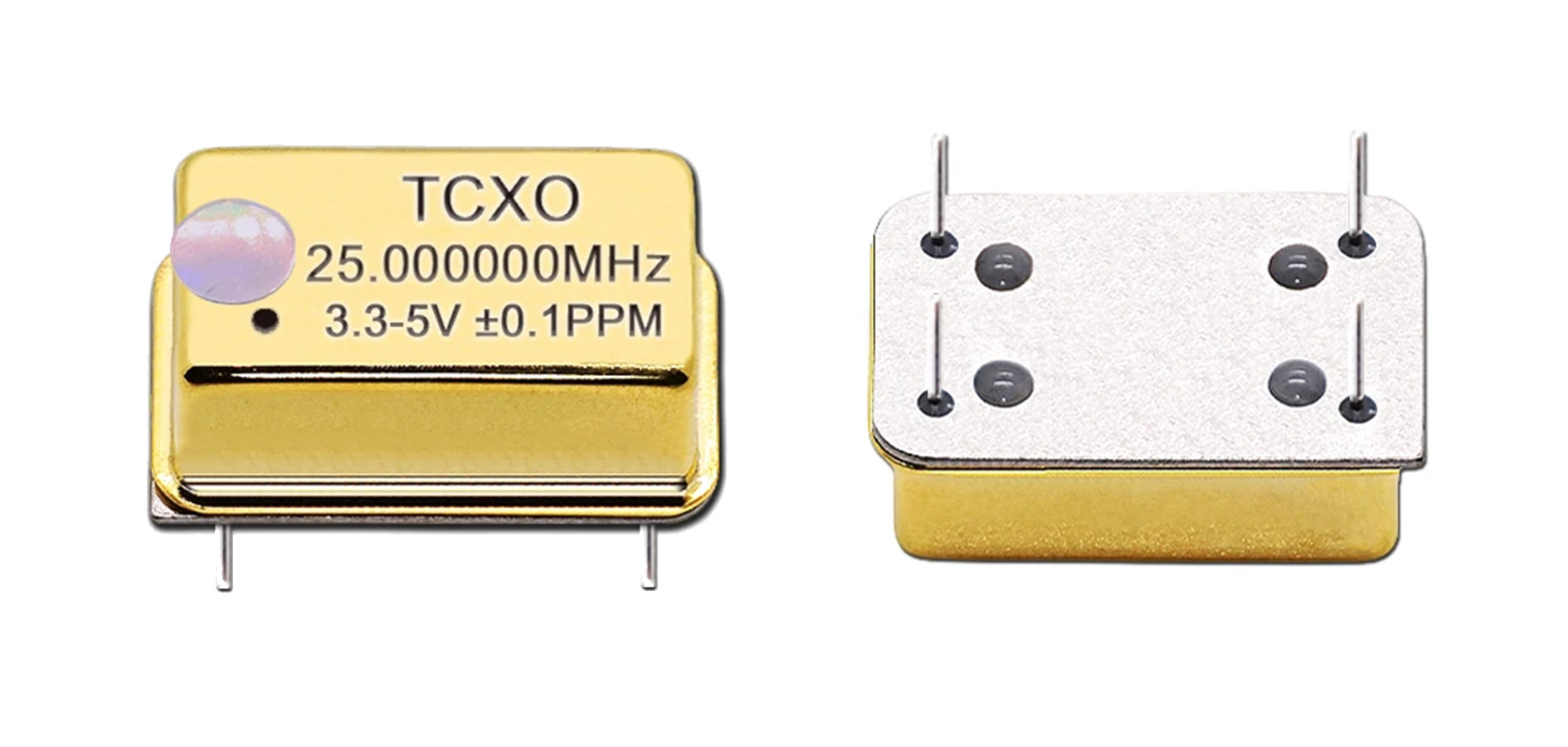

Temperature-Compensated Crystal Oscillators (TCXO)

In applications where temperature variances are anticipated, a TCXO is utilized to compensate for the changes within the frequency of quartz crystals caused by varieties in temperature. These oscillators keep up a steady recurrence over a broader temperature run, making them perfect for open air or mechanical applications.

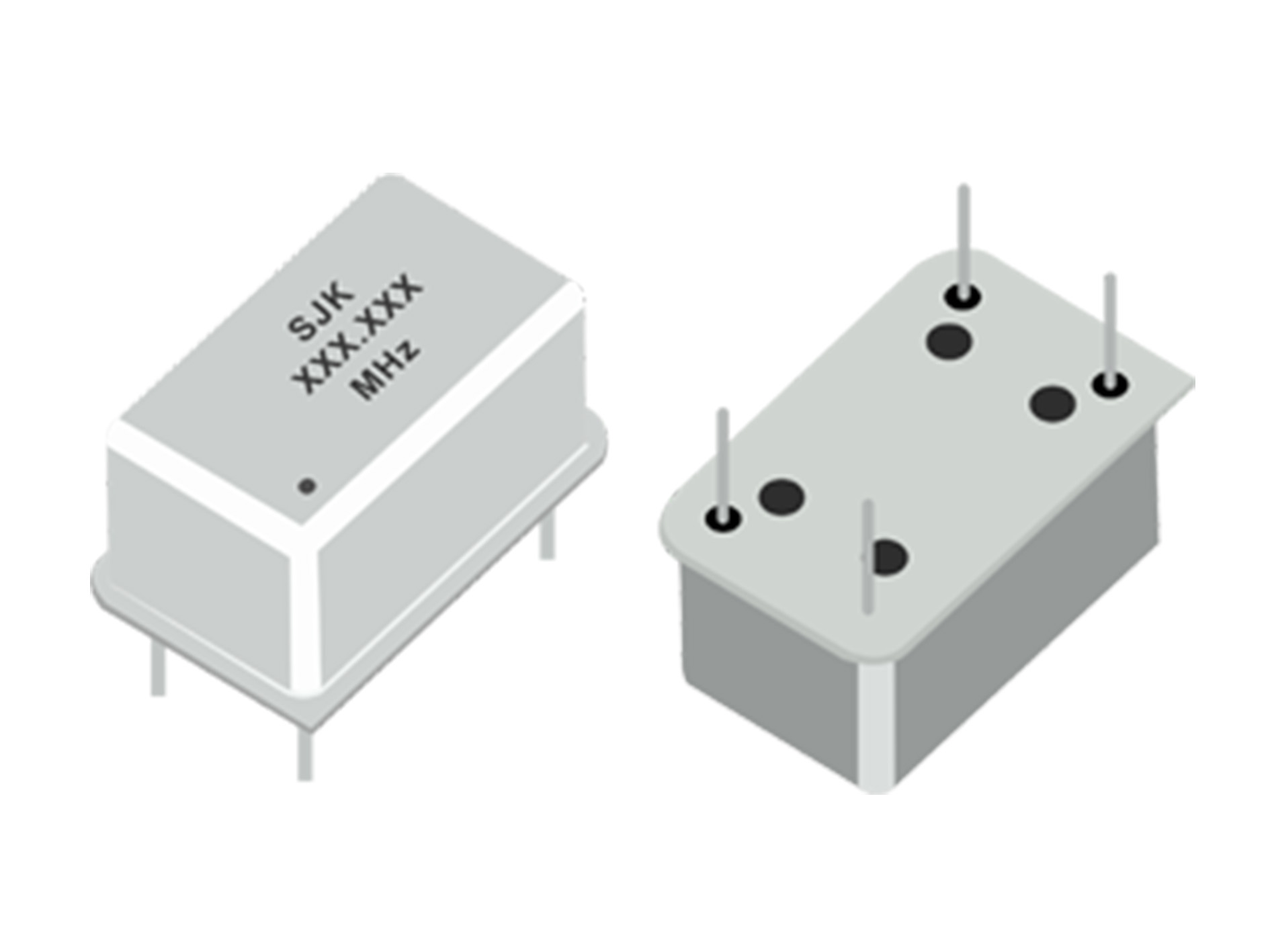

Oven-Controlled Crystal Oscillators (OCXO)

For extraordinary exactness, an OCXO is utilized. In this plan, the quartz Crystal is set in a temperature-controlled broiler to keep it at a consistent temperature. By disposing of the impacts of temperature changes, the oscillator can keep up an awfully steady recurrence, with deviations as moo as 0.01 ppm. These oscillators are utilized in high-precision hardware such as GPS frameworks and broadcast communications foundation.

Crystal Oscillator Design Considerations

Load Capacitance

The stack capacitance may be a key figure in determining the crystal oscillator frequency. This capacitance is the entire compelling capacitance seen by the Crystal within the circuit. Architects must carefully calculate and select suitable capacitors to guarantee that the oscillator works at the right recurrence.

Drive Level

The drive level alludes to the sum of control provided to the Crystal. Over the top drive levels can lead to debasement of the precious stone over time, whereas inadequately drive levels may result in unsteady motions. Maintaining the legitimate drive level guarantees that the oscillator quartz circuit works dependably.

Advancements in Crystal Oscillators

As innovation propels, so do the capabilities of Crystal oscillators. Nowadays, we have smaller than expected, surface-mount precious stone oscillators that give exact timing in compact gadgets such as smartphones, wearables, and IoT sensors. Also, progressions in materials and fabricating forms have driven to oscillators that can work at indeed higher frequencies whereas keeping up great soundness and moo control utilization.

Crystal Oscillators Data Sheet

Conclusion

Crystal control oscillators play a vital role in modern electronics, ensuring accurate timing and frequency control in a wide range of applications. Whether it's a radio frequency oscillator used in communication systems or a crystal oscillator in a wristwatch, the quartz crystal frequency provides unmatched precision and stability.

By leveraging the piezoelectric properties of quartz, these oscillators can keep up reliable, steady signals in situations where timing and synchronization are basic. As innovation proceeds to advance, the request for indeed more precise and compact gem oscillators will as it were increment, encourage cementing their put within the world of hardware.
